Industrial PC Cases – Desktop / Wall Mount (non-rackmount)
The desktop/wallmount chassis is an IPC chassis and IPC enclosure supports.Cases – non rackmount
Our wide range of industrial grade and server grade motherboards and components caters to just about any requirement, from legacy Pentium 4 / ISA based systems to the latest Intel processors.
Below are some of the popular chassis that we use.
Please contact us with your requirements so we can quote a system to meet your exact needs.
Mini-ITX Motherboard Chassis

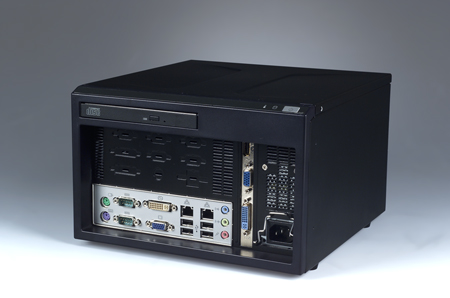

ARK-6610
Compact Chassis for Mini-ITX Motherboard
Click here to show/ hide more info
Features
- ARK-6610 with one front I/O expansion slot
- Various cut-outs for COM/DVI/LVDS,USB,S/C-video
- Shockproof drive bay for slim ODD and 3.5” HDD
- Bottom door to access CF card or Mini-PCIe card
- Optional equipped FLEX power supply
Descriptions
Compact Chassis for Mini-ITX Motherboard
Specifications
| Part Number | ARK-6610-00XBE |
| Front I/O Interface | |
| COM | 5 |
| USB | 2 |
| Cooling | |
| System Fan | 1 (9 cm/ 52.5 CFM) |
| Air Filter | Yes |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Physical Characteristics | |
| Weight | 4.76 kg (10.47 lb) |
| Dimensions (W x H x D) | 250 x 156 x 253 mm (9.8” x 6.1” x 10”) |
| Disk Drive Bay | |
| Slim ODD | 1 |
| 3.5″ Internal | 1 |
| Miscellaneous | |
| LED Indicators | Power, HDD, temperature |
| Control | Power Switch |
| Power Supply | |
| Power Supply | – |
Data sheet on ARK-6610 (pdf file (opens in new tab)

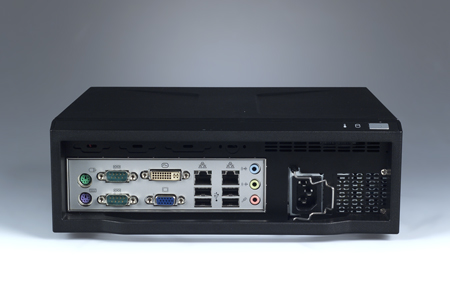

ARK-6620
Compact Chassis for Mini-ITX Motherboard
Click here to show/ hide more info
Features
- Various cut-outs for COM/DVI/LVDS,USB,S/C-video
- Shockproof drive bay for slim ODD and 3.5” HDD
- Bottom door to access CF card or Mini-PCIe card
- Optional equipped FLEX power supply
Descriptions
Compact Chassis for Mini-ITX Motherboard
Specifications
| Part Number | ARK-6620-18ZBE |
| Front I/O Interface | |
| COM | 2 |
| Cooling | |
| System Fan | 2 (6cm / 27.7 CFM) |
| Air Filter | Yes |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Physical Characteristics | |
| Weight | 3.49 kg (7.68 lb) |
| Dimensions (W x H x D) | 272 x 88 x 232 mm (10.7 x 3.5 x 9.1) |
| Disk Drive Bay | |
| 3.5″ Internal | 1 |
| Miscellaneous | |
| LED Indicators | Power, HDD, temperature |
| Control | Power Switch |
| Power Supply | |
| Power Supply | 180W (Single) |
Data sheet on ARK-6620 (pdf file (opens in new tab)

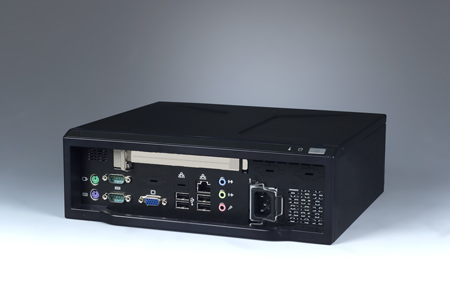

ARK-6622
Compact Chassis with one front slot for Mini-ITX Motherboard
Click here to show/ hide more info
Features
- With front I/O interfaces and one expansion slot
- Shockproof drive bay for two 2.5” HDDs
- bottom door to access CF card or Mini-PCIe card
- LED indicators for system fault detection
- Equipped 180 FLEX power supply
Descriptions
Compact Chassis with one front slot for Mini-ITX Motherboard
Specifications
| Part Number | ARK-6622 |
| Front I/O Interface | |
| COM | 2 |
| USB | 4 |
| PS/2 | 2 |
| DVI/COM | 1 |
| RJ-45 | 2 |
| Audio | 3 (Mic-in, Line-out, Line-in) |
| VGA | 1 |
| Expansion slot | 1* |
| Reserved cutouts | 2 x DB-9 and 2 x Wireless Antenna Opening |
| Cooling | |
| System Fan | 2 (6 cm/27.7CFM) |
| Air Filter | Yes |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Humidity | 10 ~ 85%, @ 40° C, non-condensing |
| Vibration (5 ~ 500 Hz) | 1 Grms |
| Shock | 10 G (with 11ms duration, half sine wave) |
| Physical Characteristics | |
| Weight | 3.49 kg (7.68 lb) |
| Dimensions (W x H x D) | 272 x 88 x 232 mm (10.7″ x 3.5″ x 9.1″) |
| Disk Drive Bay | |
| 2.5″ Internal | 2 |
| Miscellaneous | |
| LED Indicators | Power, HDD, Temperature |
| Control | Power Switch |
Data sheet on ARK-6622 (pdf file (opens in new tab)
microATX Motherboard Chassis

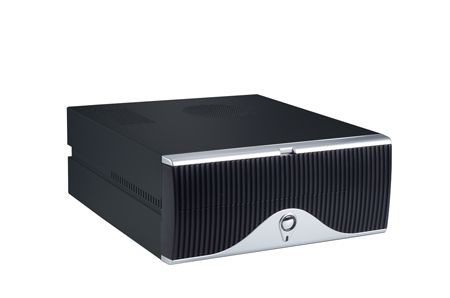

AIMB-C600
Cost-effective Desktop Chassis for MicroATX Motherboard
Click here to show/ hide more info
Features
- Cost-effective desktop chassis for MicroATX motherboard
- Supports four expansion slots
- Supports one 5.25″ ODD and two 3.5″ HDD
- Front-accessible dual USB 2.0
- Equipped with 300 W SFX power supply
Descriptions
Cost-effective Desktop Chassis for MicroATX Motherboard
Specifications
| Part Number | AIMB-C600 |
| Cooling | |
| Fan | 1 (6 cm / 17 CFM) |
| I/O Interface | |
| USB | 2 |
| Miscellaneous | |
| Expansion Slots | 4 |
| Front Panel Control | Power button |
| Physical Characteristics | |
| Weight | 4.6 kg (10.1 lb) |
| Dimensions (W x H x D) | 326 x 134 x 348 mm (12.8″ x 5.3″ x 13.7″) |
| Drive Bay | |
| 5.25″ Optical Drive | 1 |
| 3.5″ | 2 |
| Power Supply | |
| Power Output Wattage | 300 W |
| Input Range | AC 100 ~ 127 V / 200 ~ 240 V (selectable) |
| Output Voltage | +12 V @ 14.5 A, +5 V @ 18 A, +5 Vsb @ 2 A, +3.3 V @ 18 A, -12 V @ 0.4 A |
Data sheet on AIMB-C600 (pdf file (opens in new tab)

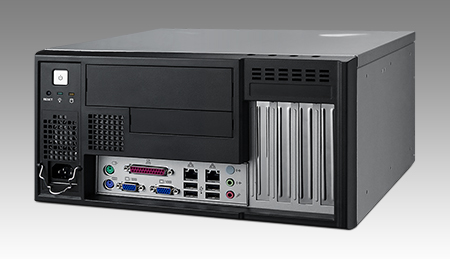

IPC-5120
Desktop/Wallmount Chassis with front I/O Interfaces for mATX Motherboard
Click here to show/ hide more info
Features
- With front I/O interface and four expansion slots
- Shockproof drive bay for one 5.25″ ODD and two 3.5″ HDDs
- LED indicators for power status and HDD activity
- Support four half-size add-on cards
Descriptions
Desktop/Wallmount Chassis with front I/O Interfaces for mATX Motherboard
Specifications
| Part Number | IPC-5120-25CE |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 (12 cm / 85 CFM) + 1 (4 cm / 10 CFM) |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Vibration | 1 Grms |
| Non-Operating Vibration | 2 G |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | |
| Weight | 8 kg (17.6 lb) |
| Dimensions (W x H x D) | 320 x 164 x 316.5 mm |
| Miscellaneous | |
| LED Indicators | Power status and HDD activity |
| Control | Power switch and system reset button |
| Drive Bay | |
| 5.25 External Bay | 1 |
| 3.5 External Bay | 1 |
| 3.5 Internal Bay | 1 |
| Power Supply | |
| Power Supply | 250W (Single) |
Data sheet on IPC-5120 (pdf file (opens in new tab)

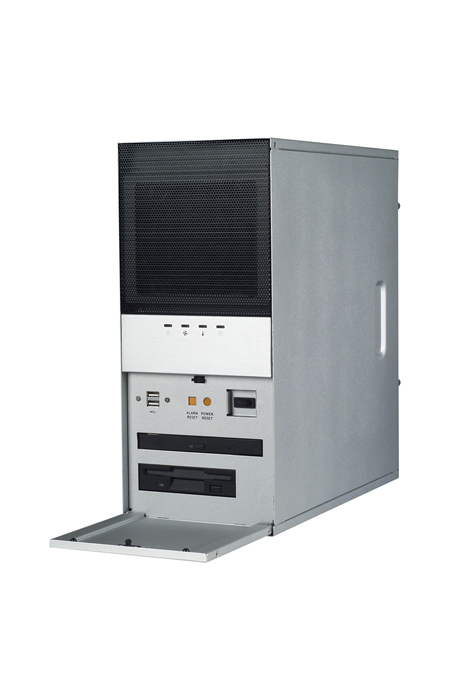

IPC-5122
Desktop/Wallmount Chassis for MicroATX Motherboard
Click here to show/ hide more info
Features
- Shockproof drive bay for slim ODD and 3.5″ or 2.5″ HDD
- Lockable front door prevent unauthorized access
- LED indicators for system fault detection
- Easy-to-maintain system fan and reusable air filter
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Descriptions
Desktop/Wallmount Chassis for MicroATX Motherboard
Specifications
| Part Number | IPC-5122-00XE |
| Cooling | |
| Air Filter | Yes |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Vibration | 1 Grms |
| Non-Operating Vibration | 2 G |
| Operating Shock | 10 G |
| Physical Characteristics | |
| Weight | 6.5 kg (14.3 lb) |
| Dimensions (W x H x D) | 157 x 360 x 340 mm (6.2″ x 14.2″ x 13.4″) |
| Drive Bay | |
| Slim ODD | 1 |
| 3.5 Internal Bay | 1 |
| Power Supply | |
| Power Supply | – |
Data sheet on IPC-5122 (pdf file (opens in new tab)
ATX Motherboard Chassis

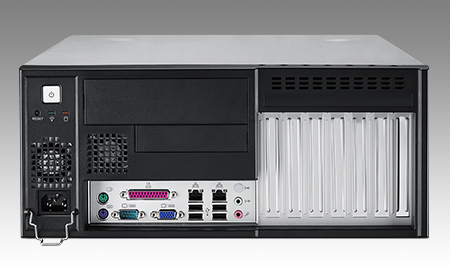

IPC-7120
Desktop/Wallmount Chassis with front I/O Interfaces for ATX/mATX Motherboard
Click here to show/ hide more info
Features
- With front I/O interface and four to seven expansion slots
- Shockproof drive bay for one 5.25″ ODD and two 3.5″ HDDs
- LED indicators for power status and HDD activity
- Support four to seven half-size add-on cards
Descriptions
Desktop/Wallmount Chassis with front I/O Interfaces for ATX/mATX Motherboard
Specifications
| Part Number | IPC-7120-25CE |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 (12 cm / 85 CFM) + 1 (4 cm / 10 CFM) |
| I/O Interface | |
| USB | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Vibration | 1 Grms |
| Non-Operating Vibration | 2 G |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | |
| Weight | 7.01 kg (15.45 lb) |
| Dimensions (W x H x D) | 380 x 164 x 316.5 mm |
| Drive Bay | |
| 5.25 External Bay | 1 |
| 3.5 External Bay | 1 |
| 3.5 Internal Bay | 1 |
| Power Supply | |
| Power Supply | 250W (Single) |
Data sheet on IPC-7120 (pdf file (opens in new tab)

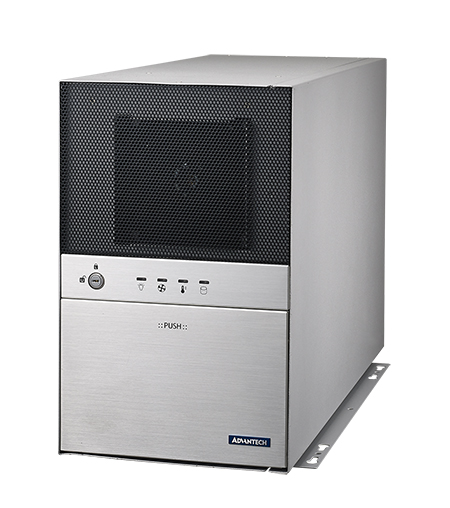

IPC-7130
Desktop/Wallmount Chassis for ATX/MicroATX Motherboard with Dual Hot-Swap 3.5″ Drive Bays
Click here to show/ hide more info
Features
- Shockproof drive bays – One 5.25″, 2 hot-swap 3.5″ and 1 internal 3.5″
- Lockable front door to prevent unauthorized access
- LED indicators for system fault detection
- Bidirectional to mount chassis on the wall or workbench
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Descriptions
Desktop/Wallmount Chassis for ATX/MicroATX Motherboard with Dual Hot-Swap 3.5″ Drive Bays
Specifications
| Part Number | IPC-7130-00XE |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 (12 cm/73.8 CFM) + 1 (6 cm/21.2 CFM) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Physical Characteristics | |
| Weight | 12.8 kg (28.2 lb) |
| Dimensions (W x H x D) | 200 x 320 x 480 mm (7.9″ x 12.6″ x 18.9″) |
| Drive Bay | |
| 5.25 External Bay | 1 |
| Hot-swap | 2 |
| Miscellaneous | |
| LED Indicators | Power, HDD, temperature, fan |
| Front Panel | Power, HDD, Temp, Fan |
| Power Supply | |
| Power Supply | – |
Data sheet on IPC-7130 (pdf file (opens in new tab)

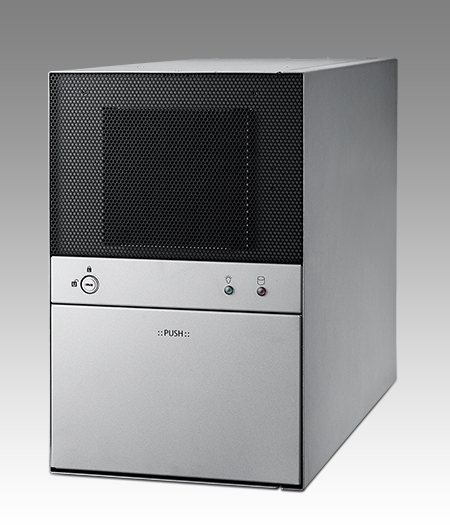

IPC-7130L
Desktop/Wallmount Chassis for ATX/MicroATX Motherboard
Click here to show/ hide more info
Features
- Stylish design with 7 expansion slots in the rear
- Shock-resistant drive bay holds one 5.25″ disk drive and three 3.5″ disk drives (two 3.5″ HDD trays and one internal 3.5″ drive bay)
- Lockable front door prevents unauthorized access
- Bidirectional options to mount chassis on the wall or workbench
- LED indicators for Power and HDD activity
Descriptions
Desktop/Wallmount Chassis for ATX/MicroATX Motherboard
Specifications
| Part Number | IPC-7130L-00XE |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 (12 cm/73.8 CFM) + 1 (6 cm/21.2 CFM) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Physical Characteristics | |
| Weight | 11.11 kg (24.49 lb) |
| Dimensions (W x H x D) | 200 x 320 x 480 mm (7.9″ x 12.6″ x 18.9″) |
| Drive Bay | |
| 5.25″ Front-Accessible | 1 |
| 3.5 External Bay | 2 |
| Miscellaneous | |
| Front Panel | Power, HDD |
| Power Supply | |
| Power Supply | – |
Data sheet on IPC-7130L (pdf file (opens in new tab)

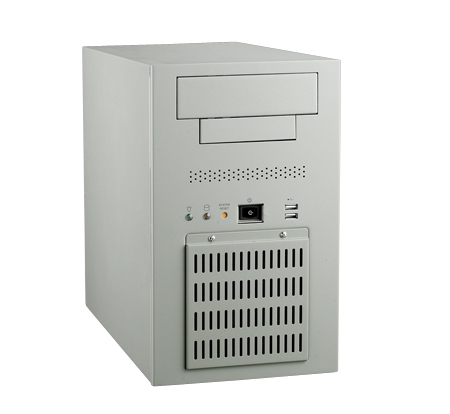

IPC-7132
Cost-effective Wallmount Chassis for ATX/mATX Motherboard and 10-slot Backplane
Click here to show/ hide more info
Features
- Support ATX/mATX M/B and 10-slot PICMG 1.3 backplane
- Shockproof drive bay for one 5.25″ ODD and three 3.5″ HDDs
- Thumb-screw for top cover easy opening
- Bidirectional option to mount chassis on wall or workbench
- Two front access USB ports
Descriptions
Cost-effective Wallmount Chassis for ATX/mATX Motherboard and 10-slot Backplane
Specifications
| Part Number | IPC-7132MB-00XE |
| Form Factor | |
| Form Factor | ATX |
| Cooling | |
| Air Filter | Yes |
| System Fan | 1 (12 cm/85 CFM) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Physical Characteristics | |
| Weight | 9.96 kg (21.93 lb) |
| Dimensions (W x H x D) | 200 x 330 x 430 mm (7.9″ x 13″ x 16.9″) |
| Drive Bay | |
| 3.5″ Front-Accessible | 1 |
| 3.5 Internal Bay | 2 |
| Miscellaneous | |
| LED Indicators | Power, HDD |
| Control | Power Switch, System reset |
| Power Supply | |
| Power Supply | – |
Data sheet on IPC-7132 (pdf file (opens in new tab)

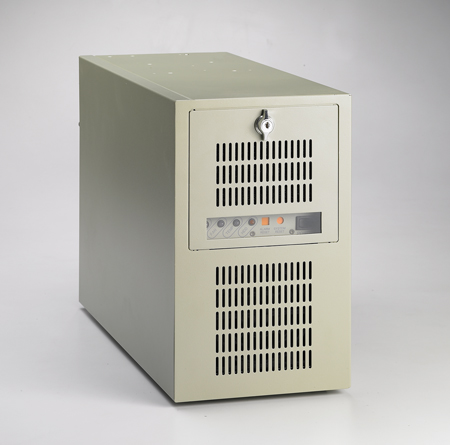

IPC-7220
Quiet Desktop/Wallmount Chassis Ready for ATX Motherboard
Click here to show/ hide more info
Features
- Quiet version provides low-noise solution
- Shock-resistant drive bay designed to hold two 5.25″ and two 3.5″ disk drives (one front-accessible & one internal)
- Lockable front door prevents unauthorized access
- LED indicators for fault detection and alarm notification
- Easy-to-maintain air filters
- Optional 300W, 400W redundant power supply
Descriptions
Quiet Desktop/Wallmount Chassis Ready for ATX Motherboard
Specifications
| Part Number | IPC-7132MB-00XE |
| Form Factor | |
| Form Factor | ATX |
| Cooling | |
| Air Filter | Yes |
| System Fan | 1 (12 cm/85 CFM) |
| Front I/O Interface | |
| PS/2 | 2 (1 x Keyboard, 1 x Mouse) |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Shock | 10 G (with 11 ms duration, half sine wave) |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Physical Characteristics | |
| Weight | 14 kg (30.8 lb) |
| Dimensions (W x H x D) | 200 x 320 x 480 mm (7.9″ x 12.6″ x 18.9″) |
| Drive Bay | |
| 5.25″ Front-Accessible | 2 |
| Miscellaneous | |
| LED Indicators | Power, HDD, temperature, fan |
| Control | Power Switch, System reset, Alarm reset |
| Rear Panel | Reserved Two 9-pin D-Sub openings, one LPT opening |
| Power Supply | |
| Power Supply | – |
Data sheet on IPC-7220 (pdf file (opens in new tab)
PICMG1.0/1.3 Chassis

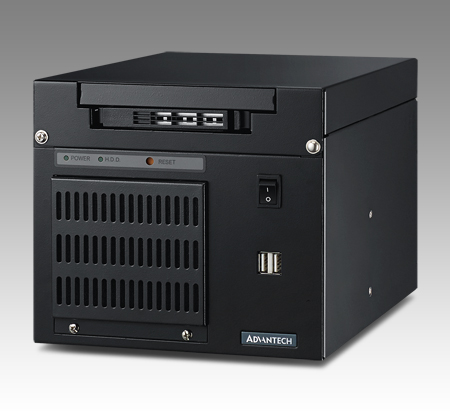

IPC-6806S-D
6-Slot Desktop/Wallmount Compact Chassis for Half-Sized Slot SBC
Click here to show/ hide more info
Features
- One Hot-swap 2.5″ drive bay
- Two front accessible USB 2.0 ports
- Support 6-slot PICMG 1.3/1.0 backplane
- Easy maintain system fan and filter
Descriptions
6-Slot Desktop/Wallmount Compact Chassis for Half-Sized Slot SBC
Specifications
| Part Number | IPC-6806S-25DE |
| Form Factor | |
| CPU Card Form Factor | Half-sized |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 (9cm / 53 CFM) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) | 0.5 Grms |
| Non-Operating Vibration | 2 G |
| Physical Characteristics | |
| Weight | 5.6 kg (12.3 lb) |
| Dimensions (W x H x D) | 191 x 178 x 290 mm |
| Drive Bay | |
| External 3.5″ | 1 and 1 2.5″ hot swap tray |
| Internal 3.5″ | 1 |
| Miscellaneous | |
| LED Indicators | Power, HDD |
| Control | Power Switch, System reset |
| Rear Panel | Reserved Two 9-pin D-Sub openings, one LPT opening |
| Power Supply | |
| Power Supply | 250W (Single) |
Data sheet on IPC-6806S-D (pdf file (opens in new tab)

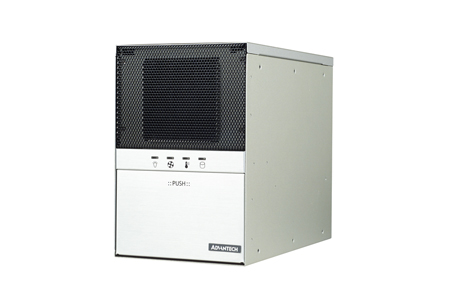

IPC-3026
6-Slot Desktop/Wallmount Chassis for Half-Size SBC
Click here to show/ hide more info
Features
- Support 6-slot PICMG 1.3/1.0 backplane
- Shockproof drive bay for one 3.5″ HDD
- Support two 2.5″ HDDs by hot-swap tray
- LED indicators for system fault detection
- Lockable front door prevent unauthorized access
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Descriptions
6-Slot Desktop/Wallmount Chassis for Half-Size SBC
Specifications
| Part Number | IPC-3026BP-15ZE |
| Form Factor | |
| CPU Card Form Factor | Half-sized |
| Form Factor | Wallmount |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 ( 9cm, 44.6 CFM ) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Non-Operating Vibration | 2 G |
| Shock | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | |
| Weight | 4.4 kg (9.7 lb) |
| Dimensions (W x H x D) | 150 x 222 x 270 mm (5.9 x 8.7 x 10.6) |
| Miscellaneous | |
| LED Indicators | Power, HDD, Temperature, FAN Status |
| Control | Power Switch, System reset, Alarm reset |
| Power Supply | |
| Power Supply | 150W (Single) |
Data sheet on IPC-3026 (pdf file (opens in new tab)

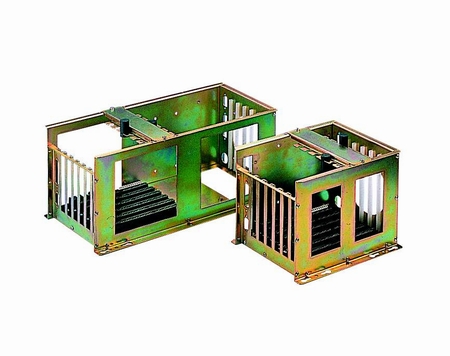

IPC-6006
6-Slot Backplane Card Cage
Click here to show/ hide more info
Features
- Open-frame card cadge for embedded system
- Shockproof hold-down clamp design
- Support 6-slots full size and half size SBC
- Support one PS/2 power supply, one 3.5″ HDD and one cooling fan
Descriptions
6-Slot Backplane Card Cage
Specifications
|
Physical Characteristics |
|
|
Dimensions (W x H x D) |
158 x 186 x 368 mm |
|
Weight |
2.2 kg (4.8 lb) |
Data sheet on IPC-6006 (pdf file (opens in new tab)

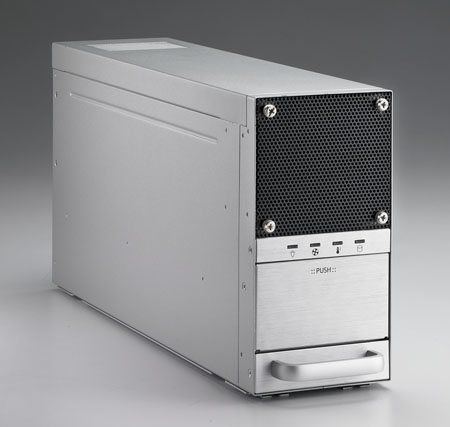

IPC-6025
5-Slot Desktop/Wallmount Chassis with Scalability for 5U Multi-system Solution
Click here to show/ hide more info
Features
- Front handle for easy withdraw in rackmount carrier
- Lockable front door prevent unauthorized access
- Shockproof drive bay for two 3.5″ HDDs
- LED indicators for system fault detection
- Optional rackmount carrier for quad-system solution
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Descriptions
5-Slot Desktop/Wallmount Chassis with Scalability for 5U Multi-system Solution
Specifications
| Part Number | IPC-6025BP-27ZE |
| Form Factor | |
| CPU Card Form Factor | Full-Sized |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 ( 9cm, 46.6 CFM ) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Physical Characteristics | |
| Dimensions (W x H x D) | 111 x 212 x 420 mm (4.4″ x 8.3″ x 16.5″) |
| Miscellaneous | |
| LED Indicators | Power, HDD, Temperature, FAN |
| Disk Drive Bay | |
| Hot-swap | 2 |
| Power Supply | |
| Power Supply | 270W (Single) |
Data sheet on IPC-6025 (pdf file (opens in new tab)

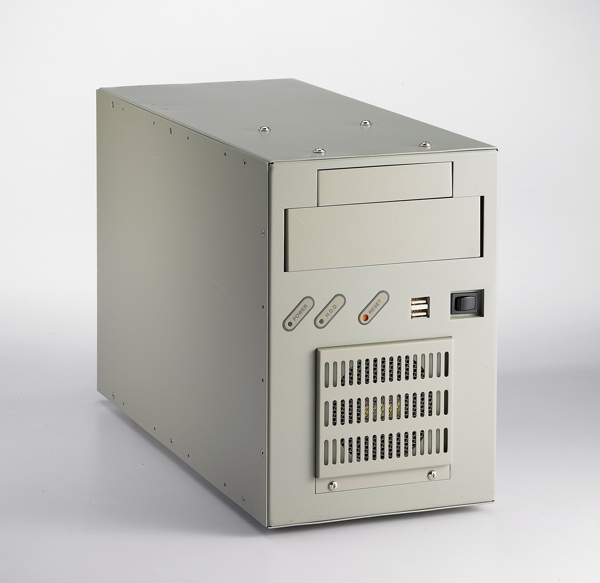

IPC-6606
6-slot desktop/Wallmount chassis
Click here to show/ hide more info
Features
- Support 6-slot PICMG 1.0 backplane only
- Shockproof drive bay for 5.25″ ODD and 3.5″ HDD
- Two front access USB ports
- Bidirectional to mount chassis on wall or workbench
- Easy maintain system fan and filter
Descriptions
6-slot desktop/Wallmount chassis
Specifications
| Category | Attribute | Value |
| Form Factor | Form Factor | PICMG 1.0/1.3 |
| Front I/O Interface | USB2.0 | 2 |
| Power Supply | Power Supply | – |
| Cooling | Air Filter | Yes |
| System Fan | 1 (9cm / 53 CFM) | |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Physical Characteristics | Weight | 9 kg ( 19.8 lb ) |
| Miscellaneous | Control | Power Switch, System reset |
| LED Indicators | Power, HDD | |
| Drive Bay | 5.25″ | 1 |
| External 3.5″ | 1 | |
| Internal 3.5″ | 1 | |
| Backplane | PICMG 1.0/1.3 full size | NA |
Data sheet on IPC-6606 (pdf file (opens in new tab)
IPC-6608
8-Slot Desktop/Wallmount Chassis with PS/2 or Redundant Power Supply
Click here to show/ hide more info
Features
- Bidirectional options to mount the chassis on the wall or workbench
- Supports versatile 6/8-slot backplanes to hold 6/8 full-size cards
- One/two front-accessible 5.25″ disk drives and one 3.5″ FDD
- High-speed cooling fan supports abundant cooling and streamlined ventilation
- Shockproof and anti-vibration drive bay design for industrial applications
- Two front-accessible USB ports
- Optional redundant 300 W ATX available for IPC-6608 series
Descriptions
8-Slot Desktop/Wallmount Chassis with PS/2 or Redundant Power Supply
Specifications
| Category | Attribute | Value |
| Form Factor | Form Factor | PICMG 1.0/1.3 |
| Front I/O Interface | USB2.0 | 2 |
| Power Supply | Power Supply | – |
| Cooling | Air Filter | Yes |
| System Fan | 1 (12 cm/85 CFM) | |
| Physical Characteristics | Dimensions (W x H x D) | 173 x 315 x 410 mm ( 6.8″ x 12.4″ x 16.1″ ) |
| Weight | 11 kg ( 24.2 lb) | |
| Miscellaneous | Control | Power Switch, System reset |
| LED Indicators | Power, HDD | |
| Drive Bay | 5.25″ | 2 |
| External 3.5″ | 1 |
Data sheet on IPC-6608 (pdf file (opens in new tab)

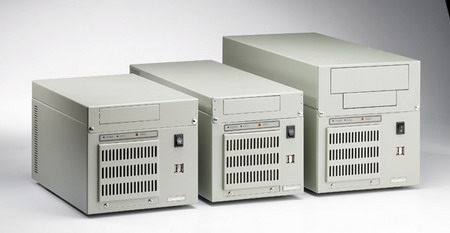

IPC-6806
6-Slot Desktop/Wallmount Chassis for Full/Half-Size SBC
Click here to show/ hide more info
Features
- Three models with different sizes to support various industrial applications
- Supports versatile 6-slot backplanes
- Streamlined filtered airflow
Descriptions
6-Slot Desktop/Wallmount Chassis for Full/Half-Size SBC
Specifications
Data sheet on IPC-6806 (pdf file (opens in new tab)

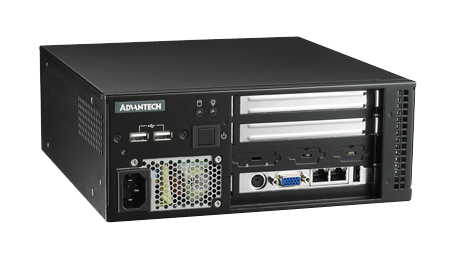

IPC-3012
Compact Chassis for PICMG 1.3 Half Size SHB
Click here to show/ hide more info
Features
- Compact chassis with two front expansion slots
- Shockproof drive bay for two 2.5″ HDDs
- Equipped 80 plus FLEX 250W power supply
- Thumb-screw for top cover easy opening
- Bidirectional to mount chassis on wall or workbench
Descriptions
Compact Chassis for PICMG 1.3 Half Size SHB
Specifications
| Part Number | IPC-3012-25ZE |
| CPU Card Form Factor | Full-Sized |
| Cooling | |
| Air Filter | Yes |
| Fan | 1 ( 9cm, 46.6 CFM ) |
| Front I/O Interface | |
| USB2.0 | 2 |
| Environment | |
| Operational Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Operating Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) | 1 Grms |
| Non-Operating Vibration (5 ~ 500 Hz) | 2 G |
| Shock | 10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics | |
| Weight | 3.24 kg ( 7.14 lb ) |
| Dimensions (W x H x D) | 232 x 90 x 232 mm (9.1 x 3.5 x 9.1) |
| Miscellaneous | |
| LED Indicators | Power, HDD |
| Control | Power Switch |
| Disk Drive Bay | |
| Internal 25″ | 2 |
| Backplane | |
| PICMG 1.0/1.3 full size | NA |
| Power Supply | |
| Power Supply | 250W (Single) |
Data sheet on IPC-3012 (pdf file (opens in new tab)
