PCI Express Communication Cards

PCIe serial and RS-232/422/485 serials

PCI Express Communication Cards

PCI Express serial communication cards contain PCIe serial and RS-232/422/485 serials design. PCI Express serial cards are made to applied to various industrial automation applications.

PCI Express Communication Cards

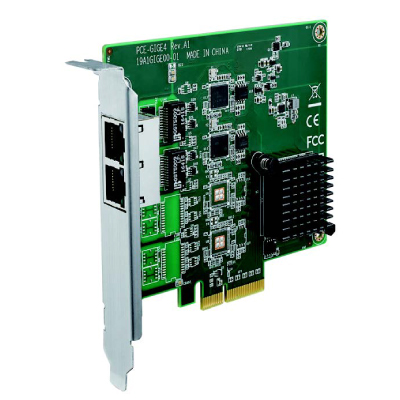

PCE-GIGE2


PCI Express x4, 2/4-Port GbE Expansion Card

PCE-GIGE2
Click here to show/ hide more info

PCE-GIGE2
PCE-GIGE4 is a 4-port PCIe x4 expansion card compliant with industrial cameras for machine vision applications. With powerful Intel Ethernet controller i210, PCE-GIGE2/4 can support Wake-on-LAN and PXE functions. PCE-GIGE2/4 is a multi ports GbE expansion card designed for machine vision, factory automation, surveillance or any other applications that require fast and stable data transmission.

Features:

  • Intel Ethernet Controller i210
  • Supports Wake-on-LAN function
  • Supports two or four GbE LAN ports
  • Supports PXE function
  • PCI Express x4 interface
  • Supports Microsoft Windows 7/8/10, Windows Server 2008 R2, 2012, 2012 R2, 2016 and Linux operating systems

Specifications:

GIGE Interface PCI Express x4
Connector

2 x RJ45 LAN ports (PCE-GIGE2-00A1)

4 x RJ45 LAN ports (PCE-GIGE4-00A1)

Host Bus 4-lane Gen 2 PCIe interface, compliant with PCI Express Base Specification, Revision 2.0
Controller 4 x Intel i210 Ethernet Controller
Data Transfer Rate 10/100/1000 Mbps

Environment Operating Temperature 0 ~ 60 °C
Storage Temperature -40 ~ 85 °C
Dimensions (L x H) 118 x 111 mm (4.64″ x 4.37″)
Certifications CE/FCC



Datasheet on PCE-GIGE2 (pdf, opens in a new tab)

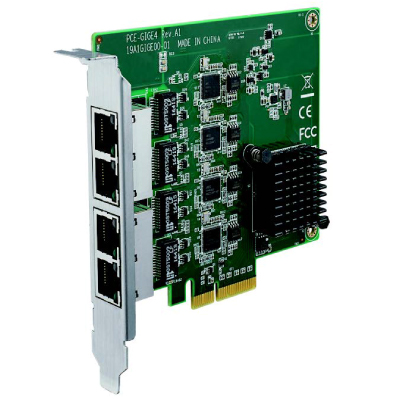

PCE-GIGE4


4 GbE Ports ethernet card (PCIex4)

PCE-GIGE4
Click here to show/ hide more info

PCE-GIGE4
PCE-GIGE4 is a 4-port PCIe x4 expansion card compliant with industrial camera for machine vision application.

Features:

  • Intel Ethernet Controller i210
  • Support Wake-on-LAN function
  • Supports two or four GbE LAN ports
  • Support PXE function
  • PCI Express x4 interface
  • Supports Microsoft Windows 7/8.1 and Linux operating systems

Specifications:

GIGE Interface PCI Express x4
Connector 2 x RJ45 LAN ports (PCE-GIGE2-00A1)

4 x RJ45 LAN ports (PCE-GIGE4-00A1)

Host Bus 4-lane Gen 2 PCIe interface, compliant with PCI Express Base Specification, Revision 2.0
Controller 4 x Intel i210 Ethernet Controller
Data Transfer Rate 10/100/1000 Mbps
Environment Operating Temperature 0 ~ 60 °C
Storage Temperature -40 ~ 85 °C
Dimensions (L x H) 118 x 111 mm (4.64″ x 4.37″)
Certifications CE/FCC



Datasheet on PCE-GIGE4 (pdf, opens in a new tab)

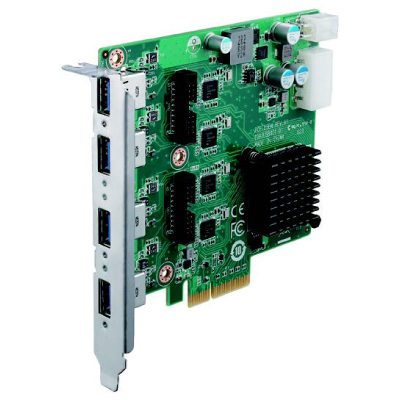

PCE-USB


PCI Express x4, 4-Port USB 3.0 Expansion Card

PCE-USB
Click here to show/ hide more info

PCE-USB
PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas μPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.

Features:

  • Four USB 3.0 host controllers
  • Support 1500mA Max. Current per Port
  • Supports four or eight USB 3.0 ports
  • 3 Ports with Locking connector compliant with USB3 Vision V1.0 Standard-A
  • Compliant with USB 3.0 Specification and Intel® xHCI Specification, Revision 1.0
  • PCI Express x4 interface
  • Supports Microsoft Windows 7/8.1 and Linux operating systems

Specifications:

Part Number

PCE-USB4-00A1E

PCE-USB8-00A1E







I/O*





USB3.0

4

8







Environment





Temperature (Operating)*

0~60°C(32 ~140°F)

0~60°C(32 ~140°F)

Temperature (Storage)*

-40~85°C(-40 ~185°F)

-40~85°C(-40 ~185°F)







General





Bus*

PCIe

PCIe

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

Dimensions*

118 x 111 mm

118 x 111 mm







Communications*





Ports

4

8

Serial/CAN/GPIB/USB

USB 3.0

USB 3.0







Power*





Current

1500mA per port

1500mA per port



Datasheet on PCE-USB (pdf, opens in a new tab)

PCIE-1602


2-port RS-232/422/485 PCIe Communication Card w/Surge & Isolation

PCIE-1602
Click here to show/ hide more info

PCIE-1602
2-port RS-232/422/485 PCIe Communication Card w/Surge & Isolation

Features:

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 2 x RS-232 or RS- 232/422/485 ports
  • Operating systems supported: Windows XP/Vista/7/8/10, Linux
  • XR17V352 UART with 256-byte FIFOs
  •

Specifications:

Part Number

PCIE-1602B-AE

PCIE-1602C-AE







Environment





Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

-10 ~ 60° C (14 ~ 144° F)







General





Bus*

PCIe

PCIe

Connectors

2 x Male DB9

2 x Male DB9

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

119.63 x 111 mm (4.71″ x 4.4″)

119.63 x 111 mm (4.71″ x 4.4″)







Communications*





Ports

2

2

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

XR17V352

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485







Protection*





ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

3 KV







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCIE-1602 (pdf, opens in a new tab)

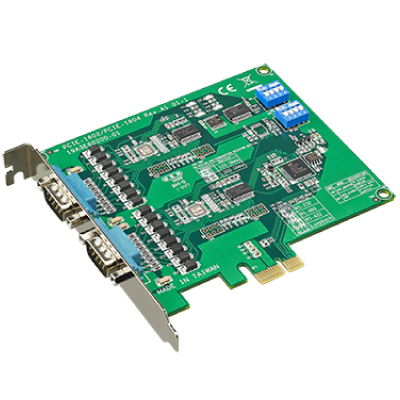

PCIE-1610


2-port RS-232 PCIe Communication Card w/Surge & Isolation

PCIE-1610
Click here to show/ hide more info

PCIE-1610
2-port RS-232 PCIe Communication Card w/Surge & Isolation

Features:

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 2 x RS-232 ports
  • Operating systems supported: Windows XP/Vista/7/8/10, Linux
  • XR17V352 UART with 256-byte FIFOs

Specifications:

Part Number

PCIE-1604B-AE

PCIE-1604C-AE







Environment





Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

-10 ~ 60° C (14 ~ 144° F)







General





Bus*

PCIe

PCIe

Connectors

2 x Male DB9

2 x Male DB9

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

119.63 x 111 mm (4.71″ x 4.4″)

119.63 x 111 mm (4.71″ x 4.4″)







Communications*





Ports

2

2

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

XR17V352

Serial/CAN/GPIB/USB

RS-232

RS-232







Protection*





ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

3 KV







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCIE-1610(pdf, opens in a new tab)

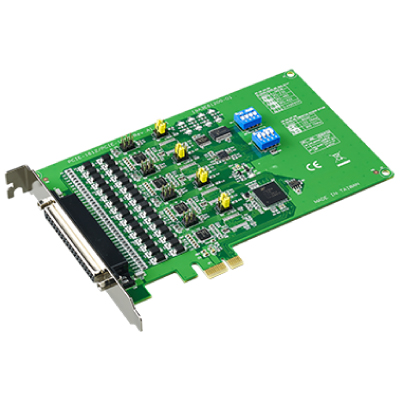

PCIE-1612


4-port RS-232/422/485 PCIe Communication Card w/Surge & Isolation

PCIE-1612
Click here to show/ hide more info

PCIE-1612
4-port RS-232/422/485 PCIe Communication Card w/Surge & Isolation

Features:

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 4 x RS-232 or RS- 232/422/485 ports
  • Operating systems supported: Windows XP/Vista/7/8/10, Linux
  • XR17V354 UART with 256-byte FIFOs

Specifications:

Part Number

PCIE-1612B-AE

PCIE-1612C-AE







Environment





Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

-10 ~ 60° C (14 ~ 144° F)







General





Bus*

PCIe

PCIe

Connectors

1x Female DB37

1x Female DB37

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

168 x 111 mm (6.6″ x 4.4″)

168 x 111 mm (6.6″ x 4.4″)







Communications*





Ports

4

4

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

XR17V352

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485







Protection*





ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

3 KV







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCIE-1612(pdf, opens in a new tab)

PCIE-1620


8-port RS-232 PCIe Communication Card

PCIE-1620
Click here to show/ hide more info

PCIE-1620
PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.

Features:

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 4 x RS-232 or RS- 232/422/485 ports
  • Operating systems supported: Windows XP/Vista/7/8/10, Linux
  • XR17V354 UART with 256-byte FIFOs

Specifications:

Part Number PCIE-1620A-BE

Environment
Operating Humidity* -25 ~ 85°C (-13 ~ 185°F)
Storage Temperature -10 ~ 60° C (14 ~ 144° F)
Operating Temperature 5 ~ 95 % RH, non-condensing

General
Bus* PCIe
Connectors 1x Female DB62
Power Consumption* 260 mA @ +3.3 V (typ.)
Certifications* CE, FCC, RoHS
OS Support* 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions* 168 x 111 mm (6.6″ x 4.4″)

Communications*
Ports 8
Data Bits 5,6,7,8
FIFO 256 bytes
Parity None, Even, Odd, Mark and Space
Speed 50 bps ~ 921.6 kbps, any baud rate setting
Stop Bits 1,1.5,2
Data Flow Control DTR/DSR,RTS/CTS, Xon/Xoff
Communication Controller XR17V352
Serial/CAN/GPIB/USB RS-232

Protection*
ESD Protection 15KV (air), 8KV (contact)
EFT Protection 1 KV

Software*
Bundled Software ICOM Tools



Datasheet on PCIE-1620(pdf, opens in a new tab)

PCIE-1622


8-port RS-232/422/485 PCI Express Communication Card

PCIE-1622
Click here to show/ hide more info

PCIE-1622
PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.

Features:

  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 8 x RS-232 or RS-232/422/485 ports
  • XR17V358 UART with 256-byte FIFOs

Specifications:

Part Number

PCIE-1622B-BE

PCIE-1622C-AE







Environment





Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)

Operating Temperature

-10 ~ 60° C (14 ~ 144° F)

-10 ~ 60° C (14 ~ 144° F)







General





Bus*

PCIe

PCIe

Connectors

1x Female DB62

1x Female DB78

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

168 x 111 mm (6.6″ x 4.4″)

168 x 111 mm (6.6″ x 4.4″)







Communications*





Ports

8

8

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

XR17V352

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485







Protection*





ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

3 KV







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCIE-1622 (pdf, opens in a new tab)

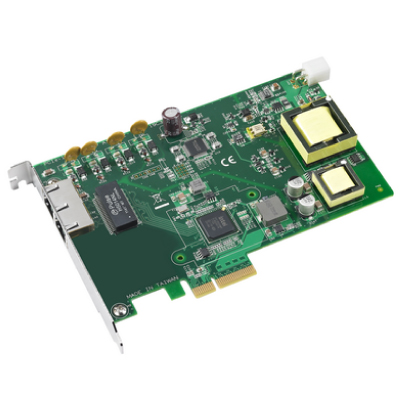

PCIE-1672PC


2-port 10/100/1000 BaseT(X) 802.3af (PoE) Compliant Ethernet ports, PCI Express Communication Card

PCIE-1672PC
Click here to show/ hide more info

PCIE-1672PC
The PCIE-1672PC/PCIE-1674PC PoE (Power over Ethernet) PCIE series is PCI express communication card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672PC/PCIE-1674PC can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the PCIE-1672PC/PCIE-1674PC is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.

Features:

  • Intel® GbE Mac Controller
  • PCI Express® x4 compliant
  • Supports 2 Gigabit Ethernet MAC Controller and PHY ports
  • Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
  • Supports PoE (Power over Ethernet), IEEE 802.3af compliant
  • Powered Device (PD) auto detection and classification
  • Supports IEEE 802.3u Auto-Negotiation
  • 2.25 KV isolation protection on LAN ports and power

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af
Speed 10/100/1000 Mbps
No. of Ports 2 or 4 Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
Port Connector 8-pin RJ45
Protection Built-in 2.25KV isolation protection on LAN ports and power, ESD 8KV, EFT 2KV
Bus Interface PCI Express® x4 compliant

Power Requirements
Input Voltage 12 VDC, AT/ATX System power input
Overload Current Protection Present
Connection AT/ATX Power Jack
Output PoE Power 48 VDC PoE Power output
PCIE-1672PC Supports 2 PoE ports up to 15.4 W at 48 VDC
PCIE-1674PC Supports 4 PoE ports up to 15.4 W at 48 VDC

Power Consumption
PCIE-1672PC Typical: 15.4W, Max: 35.4W
PCIE-1674PC Typical: 15.4W, Max: 70.8W

Environment
Operating Temperature 0 ~ 50°C (0 ~ 122°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 5 ~ 95% RH

Mechanics
Dimensions (W x D) 185 x 110 mm (7.3” x 3.9”)



Datasheet on PCIE-1672PC (pdf, opens in a new tab)

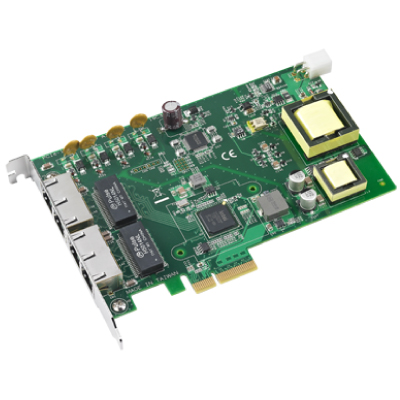

PCIE-1674PC


4-port 10/100/1000 BaseT(X) 802.3af (PoE) Compliant Ethernet ports, PCI Express Communication Card

PCIE-1674PC
Click here to show/ hide more info

PCIE-1674PC
The PCIE-1672PC/PCIE-1674PC PoE (Power over Ethernet) PCIE series is PCI express communication card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672PC/PCIE-1674PC can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the PCIE-1672PC/PCIE-1674PC is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.

Features:

  • Intel® GbE Mac Controller
  • PCI Express® x4 compliant
  • Supports 2 or 4 Gigabit Ethernet MAC Controller and PHY ports
  • Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
  • Supports PoE (Power over Ethernet), IEEE 802.3af compliant
  • Powered Device (PD) auto detection and classification
  • Supports IEEE 802.3u Auto-Negotiation
  • 2.25 KV isolation protection on LAN ports and power

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af
Speed 10/100/1000 Mbps
No. of Ports 2 or 4 Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
Port Connector 8-pin RJ45
Protection Built-in 2.25KV isolation protection on LAN ports and power, ESD 8KV, EFT 2KV
Bus Interface PCI Express® x4 compliant

Power Requirements
Input Voltage 12 VDC, AT/ATX System power input
Overload Current Protection Present
Connection AT/ATX Power Jack
Output PoE Power 48 VDC PoE Power output
PCIE-1672PC Supports 2 PoE ports up to 15.4 W at 48 VDC
PCIE-1674PC Supports 4 PoE ports up to 15.4 W at 48 VDC

Power Consumption
PCIE-1672PC Typical: 15.4W, Max: 35.4W
PCIE-1674PC Typical: 15.4W, Max: 70.8W

Environment
Operating Temperature 0 ~ 50°C (0 ~ 122°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 5 ~ 95% RH

Mechanics
Dimensions (W x D) 185 x 110 mm (7.3” x 3.9”)



Datasheet on PCIE-1674PC (pdf, opens in a new tab)

Call Now Button
