ADAM 4000 Series Data Acquisition & Control Modules

Home » Measurement/Logging Products » Analog & Digital I/O » Remote I/O Modules » ADAM 4000 Series Data Acquisition & Control Modules

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

User Manual for ADAM-4000 Series (.pdf, 9MB)

Advantech Support & Download page, Manuals, Resources Library (Advantech site, opens new Tab or Window)

News, January 2013: Hazardous locations
Advantech Announces ADAM-4000 and ADAM-6000 Series have received UL Approved Class I, Division 2 Certification.
They can be used in hazardous locations, i.e. gas, mining, oil or petrochemical industry where highly flammable substances may be produced, processed, stored, and transported to ensure the safety of the industrial facility.
Certified for use in the oil and gas industries, the Advantech ADAM-4000 Series and ADAM-6000 Series won’t cause explosions if gases, vapors and liquids are present.
Class I, Flammable Gases, Vapours or Liquids:
Division 2: Where ignitable concentrations of flammable gases, vapours or liquids are not likely to exist under normal operating conditions.
Zone 2:  Where ignitable concentrations of flammable gases, vapours or liquids are not likely to exist under normal operating conditions.

Note: the term “intrinsically safe” applies to Class 1 or 2, Division 1, where ignitable concentrations of combustible dusts can exist all or some of the time under normal operating conditions.    More info (Wikipedia) (opens in new tab)

RoHS – Restriction of Hazardous Substances   Info on RoHS

On this page:
Other related pages:

Sensor to computer or PLC interface for remote data acq & control

ADAM-4000 modules are compact, intelligent sensor-to- computer or PLC interface devices with built-in microprocessors which provide signal conditioning, analog I/O, digital I/O and comms all in an industrial hardened package. Can make stand alone, on/off controllers.
Warranty period: 2 years.

ADAM modules stand out because of their ability to accommodate multiple types and ranges of analog input. You select the type and range remotely by issuing commands from the host computer.
You may use just one type of unit for many different tasks, greatly simplifying design and maintenance.

They translate analog data into one of the following formats: engineering units, % of FSR, two’s complement or ohms. After the modules receive a request from the host, they send the data in the desired format over the RS-485 network.

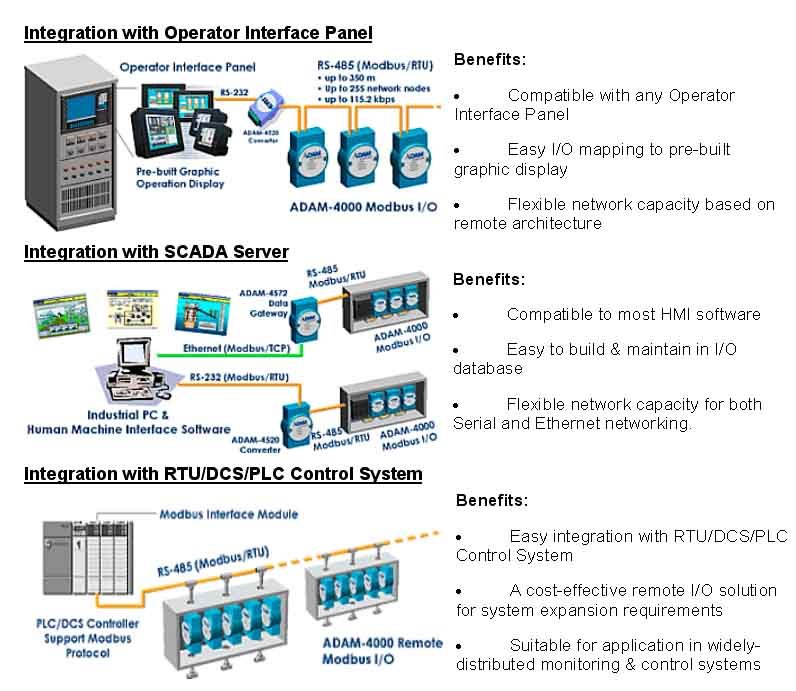

The RS485 network can connect to a host computer using an …

RS232 port with ADAM-4520   RS232 to RS485 Converter, or      (these links jump further down this page)
USB port using the ADAM-4561 USB to RS485 Converter, or                       ditto
Ethernet port using ADAM-4571 Ethernet to RS485 Converter      (this link jumps to a different page, opens new tab or window)

  • Isolation to 3000V DC- Linearisation
  • Auto-ranging – Comparison – Limit Setting
  • 16-bit A/D Conversion
  • Alarming: high and low alarm signalling with remotely configurable limit values.
  • Unregulated power 10 to 30VDC (power ripple must be <200mV p to p)
  • Protected against power reversal
  • Power and communication LED indicator
  • Network between each module with twisted pair wire (RS485 multi-drop network). Convert to RS232 with the ADAM-4520 converter, or use PCL-743/745 (RS485) card in PC.
  • RS485 to RS232 converter module for interface to computer or PLC: ADAM-4520, 4521
  • Baud rates from 1200bps up to 115Kbps (ADAM-4080: up to 38.4Kbps)
  • Up to 256 multidrop modules per serial port
  • UL Approved Class I, Division 2 Certification (Jan. 2013)
  • Transient suppression on RS-485 communication lines
  • Noise suppression circuits for communications
  • Watchdog timer on most modules
  • On-line module insertion and removal
  • ASCII commands & responses
  • High impact industrial grade plastic shell
  • Mount on DIN rails or stack together
  • Plug-in screw terminal block
  • Field configurable by software
  • Parameters stored locally in non-volatile EEPROM
  • Relay control
  • Operating temperature: -10 to 70� C (14 ~ 158� F)
  • Repeater Modules: ADAM-4510
  • Software support (see below) includes drivers and utilities, and
  • Drag & drop Windows software AdamView (see above), for programming tasks and displaying results

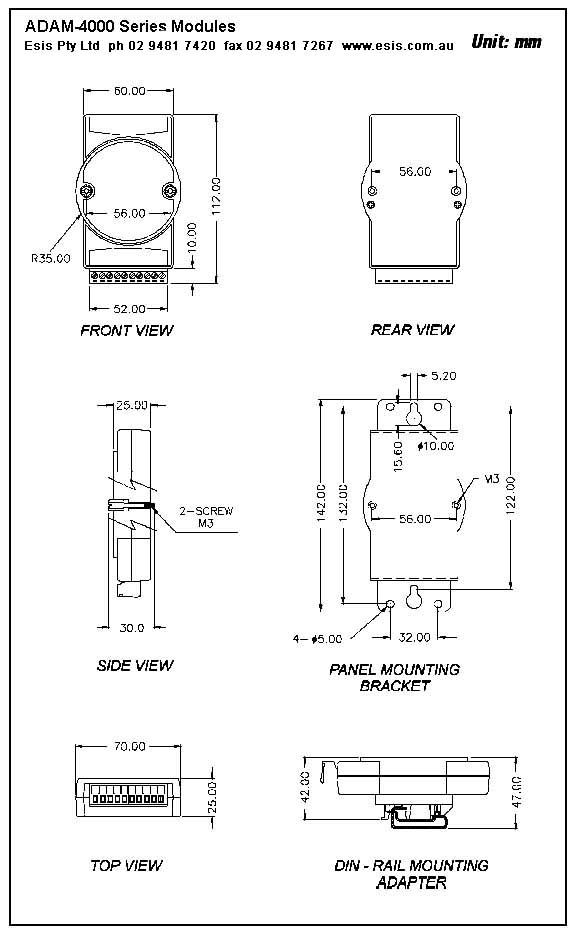

ADAM-4000 dimension diagrams: click here

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19



Speed of ADAM-4000 Series System

For acquiring one data reading from an ADAM module, the host sends a string command to
the module and waits for the module response, then the response string back to the PC via communication line.

So the total time is depended on how long is the command string and the response string,
and how fast is the baud rate.
For example, if you use 115200 bps baud rate, it will take (1/115200)*10 seconds to send one character
(total 10 bits including start bit, 8 data bits and stop bit).

The total communication time to read one slot DI data from ADAM-5051 will be:

((character number)/11520+0.002) seconds

where (character number) is the total characters for command and response
and 0.002 is the wait time of ADAM-5051.

With the communication time to read 1-slot data, you can derive the maximum sampling speed in your application.
The sampling speed of A/D modules can be calculated in the same way.

ADAM modules with multiple channels support the read all channel command,
you can take use of it to save the acquiring time.

An ADAM system running with the GeniDAQ software, the minimum scan period is 10 ms.

Analog Input & Output Modules

Analog Input Modules

  • 16-bit Integrating A/D converter with self calibration
  • 3000VDC analog input isolation – Digital filter
  • Output data formats: engineering units,  % of FSR,  twos complement, or ohms. Data is sent in desired format when req. by host
  • Some analog modules contain two digital outputs and one digital input channel. They can drive solid state relays which in turn can control equipment.

Programmable Alarm Output
Analog input modules include high and low alarm signalling. After every A/D conversion, the digital value is compared with the high and low limit. The module can change the state of a digital output depending on the result of this comparison. This lets it perform On/Off control of a device independent of the host PC.

Event Counter On-board event counter can count to 65,535 transitions on the digital input.
The counter is read and cleared by the host. Max sample rate: 50Hz.

Accessories Included
Nylon DIN-rail mounting adaptor; SECC Panel mounting bracket. Plug-in screw terminals.

AdamView Software for ADAM Modules

  PCLS-AdamView32 Data Acquisition and control software … see near the top of this page.

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

Analog Input & Output Modules

See also ADAM-4015 RTD Module, 6 ch and ADAM-4019 Universal Analog Input Module, 8 ch  – below the table  Prices: see below
ADAM 4011 & 4011D 4012 4013 4016 4017  8 ch
4017+ 8 ch		 4018  8 ch
4018+ 8 ch
Input Types
and ranges		 Thermocouple
(D version has LED Display)
type J (0° to 760°),
T (-100° to +400°),
K, E, R, S, B.
V: ±15/±50mV
/±100/±500mV
/±1/±2.5 V,
I: 0 to 20mA		 V & I Input
±150mV
±500mV
±1V
±5V
±10 V

±20 mA

 RTD Input
temp sensors
Pt: 100ohm, 0.00385 or 0.003916
Ni: 120ohm
Cu: 10ohm
2, 3, or 4 wire		 Strain Gauge Module
1 differential channel
±15mV to ±500mV
±20mA

Analog
Output 0-10V

 8 channels:
6 differential &
2 single ended inputs
±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA

ADAM-4017+ has 8 diffl inputs, &
±4-20mA inputs,
Indep. config of channels

 8 channels thermo-couple &
V module
types J,K,T,
E, R,S,B
±20ma,
±4-20mA
±15mV to ±2.5V Data

ADAM-4018+ has 8 diffl inputs,
Indep. config of channels,
burn-out detect
Dig Out 2, open collector, can sink 30mA None 4, open collector, None None
Dig Inp 1 in; event counter 1; event cntr None None None None
Features in common: Output: RS485; Baud Rates: 1200, 2400, 4800, 9600, 19,200 bps; Dim: 112 x 60 x 25 mm; Oper. temp 0°C to 70°C. Power Supply: +10 to 30VDC,
Isolation 3000V DC 3000V DC 3000V DC 3000V DC 3000V DC 3000V DC
Watchdog Watchdog Watchdog Watchdog Watchdog Watchdog
Conversion rate: 10 samples/sec;
Bandwidth: 4Hz; 16 bit resolution
16 bit resolution;
Acc: 0.05% or better;
Zero Drift: ±0.03%/°C;
Span Drift: ±25ppm/° C;
Normal Mode Rejection of 50Hz: 100dB;
Common Mode Rejection at 50Hz: 150dB		 Analog Output: 1ch, 0-10V, with 30mA drive, 3KV isolation 10 sa/sec, 13Hz, 0.1% or better,
Zero drift 0.03uV/° C
CMR: 92dB min		 6 diffl inputs,
2 se inputs

Note:
ADAM-4018M has been phased out
  • A Windows PC is generally required to configure the modules initially, using the software supplied with the module.
  • Adam modules can be controlled using simple ASCII commands over the serial link.
  • An ADAM-4520 RS-232 to RS-422/485 converter may be needed, unless your PC has an RS-422/485 port.
  • Once this initial configuration has been done, the module stores the configuration in its internal non-volatile memory.
  • You can then connect any serial device to it and use the simple ASCII commands to read data.

ADAM-4015   RTD Input Module – 6 channel

Independant configuration of channels,   Pt, Ni, Balco,   burn-out detect.

ADAM-4017 & ADAM-4017+ notes

ADAM-4017 & ADAM-4017+ can be controlled using simple ASCII commands over the serial link, similar to the other Adam modules.

For example, to read analog data from input 3 on ADAM module number 01, simply send “#013” to the module. The complete set of commands is described in the ADAM-4000 series operation manual.

Version �D2 is the current model which has a higher input impedance (2M versus 200k for the -D version).
The �D2 is the only one available now. It supports �10V inputs.

ADAM-4019   Universal Analog Input Module – 8 channel

for users needing various analog input signals with various types of analog input: V, mV, mA, or thermocouple signals.
8 differential analog inputs. ±100mV, ±500mV, ±1V, ±2.5V, ±5V, ±10V, ±20 mA.  Thermocouple types: J, K, T, E, R, S, B
multi-ch/multi-range mechanism
Isolation voltage: 3000 VDC, overvoltage to ±35VDC, Zin 20Mohms, Bandwidth 13.1Hz@50HZ,
Acc 0.1% of voltage input, Zero drift 30�V/°C, Span drift ±25ppm/°C, CMR @50/60hz 92db min., Burn-out: upscale for T/C input
Built-in watchdog timer.   Power: unregulated 10 to 30VDC 1.2W     Data

ADAM-4021 Analog Output Module

0 to 20mA, 4 to 20mA, 0-10 V. Effective resolution: 12-bit.   Current load resistor for current output: 0 to 500 ohms
Programmable output slope: 0.01 to 10,000 V/s (mA/sec). No digital IO. 3000V DC. Watchdog.
Accuracy: ±0.1% of FSR for current output,  ±0.2% of FSR for voltage output
Resolution 0.025% FSR. Zero Drift: Vout: ±30µV/°C Iout: ±0.2µA/°C. Analog readback.

ADAM-4024   Analog Output Module – 4 channel

Output:   0-10 V, ±10V,   0 to 20mA, 4 to 20mA,   4 channels,   alarm settings.

See also ADAM-4016 above, which has an analog output.

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

ADAM-4100 series modules

The ADAM-4100 series modules are compact, versatile sensor-to-computer interface units designed for reliable operation in harsh environments.
Their built-in microprocessors, encased in rugged industrial-grade ABS plastic, independently provide intelligent signal conditioning, analog I/O, digital I/O, LED data display, and an address mode with a user-friendly design for convenient address reading.

ADAM-4117   8-channel Analog Input Module

8 differential and independent configuration channels
Broader Operating Temperature Range
Higher Noise Immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD protection
Broader Power Input Range: +10 ~ +48VDC
LED dsiplay allows to monitor the status address settings
Supports 200 VDC Hi common mode voltage
Supports unipolar and bipolar input
Supports +/- 15 V input range
Supports filter auto-turning or filter-out 50 Hz / 60 Hz
Online Firmware Update     Data (.pdf)

ADAM-4118   8-channel Thermocouple Input

8 differential & independent thermocouple configuration channels
Broader Operating Temperature Range
Higher Noise Immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD protection
Broader Power Input Range: +10~+48 VDC
Supports filter auto-tuning or filter out 50 Hz / 60 Hz
LED display allows to monitor the status address settings
Online Firmware Update      Data (.pdf)

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

Prices

Analog Modules:    (see further down for Digital I/O Modules)    Note: some have Modbus capability
ADAM-4011-D2E   Thermocouple Input Module                $208           9/14
ADAM-4012-DE   Analog Input Module (mV,V,mA)Rev.D1 CE $204
ADAM-4013-DE   RTD Input Module $193
ADAM-4015-CE   6-Ch RTD Module w/ Modbus $373
ADAM-4015T-AE 6-Ch Thermister Input Module w/ Modbus $371
ADAM-4016-A2E AI/Output Module $243
ADAM-4017+-CE 8-Ch AI Module w/ Modbus $297
ADAM-4017-D2E 8-Ch AI Module $221
ADAM-4018+-BE 8-Ch Thermocouple Input Module w/ Modbus $314
ADAM-4018-D2E 8-Ch Thermocouple Input Module $233
ADAM-4019+-AE 8-Channel Universal Analog Input Module $372
ADAM-4021-DE   AO Module $204
ADAM-4022T-AE Serial Based Dual Loop PID Controller $396
ADAM-4024-B1E 4-Ch AO Module w/ Modbus $303

ADAM-4050 Series Prices: Scroll down a little.

Some modules can be configured for Modbus RTU protocol. See below for more Modbus information

The E at the end of the part number signifies RoHS compliance.

The -A, -D or -D2 after the part number is a revision number and can be ignored when ordering

AdamView Software for Adam Modules… see near top of this page

Digital I/O & Counter Modules

UL Approved Class I, Division 2 Certification (Jan. 2013)

ADAM-4050 Digital I/O 7 inputs with pull-up resistors to +5V, and
8 outputs, open collector, sink 30mA, to 30V. Watchdog timer.
ADAM-4051 Digital Input 16 digital inputs, digital LED indicator
ADAM-4052 Digital Input Isolated to 5KVrms,    Input range: 3.5 to 30VDC.
6 ch fully isolated, < face=”GarmdITC BkCn BT”>2 ch share cmn gnd.
Input resistance: 3Kohms / 0.5W. W’dog timer
ADAM-4053 Digital Input, 16 Ch Input levels: Dry Contact: 0: close to gnd, 1: Open.
Wet Contact: 0: +2VDC max, 1: +4-30VDC
ADAM-4055 Digital I/O 8 inputs    Input Voltage level: 10~50 VDC
8 outputs , digital LED indicator
Open Collector to 40 VDC
Over voltage protection: 70 VDC       2,500 VDC optical isolation
ADAM-4060 Relay Output Module 4-channel relay: 2 form A, 2 form C (500VAC isolation)
Contacts: AC: 0.5A/120V DC: 1A/24V. W’dog tmr.



ADAM-4080/4080D Counter/Frequency Input Module

Two 32-bit counter channels, isolated, and a built-in programmable timer for frequency measurement.
Digital alarm functions. You can download alarm values (32-bit) into the module from your host computer.

Programmable Digital Filter and Threshold: a unique programmable digital filter to reject noise on the input signal. You can specify separate time constants to provide stable output readings.
You can preset the counters from your host computer. ADAM-4080 runs at up to 38.4Kbps (the other ADAM modules run at up to 115Kbps).

Front Panel Display: The ADAM-4080D module’s 5-digit LED displays the data being sent over a RS-485 line to the host computer. Programmed to show either channel 0 or channel 1. The ADAM-4080D enables users to monitor counter, frequency and RPM data as it is being transmitted.
Data on ADAM-4080 (.pdf)

ADAM-4080 Counter & Frequency Module 2 ch, 5Hz-50KHz max, 32-bit (4 million counts).
2 digital outputs
ADAM-4080D Counter & Frequency,
with LED Display		 2 ch, 5Hz-50KHz max, 32-bit (4 million counts),
LED Display 5 digits. 2 digital outputs (Cat p9-14)



ADAM-4150  Digital I/O Module

7 input channels and 8 output channels
Broader Operating Temperature Range
Higher Noise Immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD protection
Broader Power Input Range: +10 ~ +48 VDC
LED display allows to monitor the status address settings
Digital Filter Function
DI channels can be used as 1 kVGz counters
Over current/ short circuit protection
DO channels support pulse output function     Data on ADAM-4150 (.pdf)

ADAM-4168  Relay Output Module

8 Form A output channels
Broader Operating Temperature Range
Higher Noise Immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD Protection
Broader Power Input Range: +10 ~ +48 VDC
LED display allows to monitor the status address settings
DO channels support pulse output function
B version    ADAM-40xx…-B   series modules can be configured for Modbus RTU protocol.

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

Prices:
ADAM-4050-DE   15-Ch DI/O Module      $129+GST          9/14
ADAM-4051-BE   16-Ch Isolated DI Module w/ LED & Modbus $164
ADAM-4052-BE   Isolated Digital Input Module $129
ADAM-4053-AE   16-Ch Isolated DI Module $146
ADAM-4055-BE   16-Ch Isolated DI/DO Module w/ LED & Modbus $164
ADAM-4056S-AE 12-Ch Sink Type Isolated DO Module w/ Modbus $152
ADAM-4056SO-AE 12-Ch Source Type Isolated DO Module w/ Modbus $175
ADAM-4060-DE    4-Ch Relay Output Module $158
ADAM-4068-BE   8-Ch Relay Output Module w/ Modbus $187
ADAM-4069-AE    8-Ch Power Relay Output Module w/ Modbus $239
ADAM-4080-DE   Counter/Frequency Module $204
ADAM-4117-AE   8-Ch AI Module $297
ADAM-4118-AE   8-Ch Thermocouple Input Module $314
ADAM-4150-AE 15-Ch DI/O Module $185
ADAM-4168-AE   8-Ch Relay Output Module $187

Some modules can be configured for Modbus RTU protocol. See below for more Modbus information

The E at the end of the part number signifies RoHS compliance.

The -A, -D or -D2 after the part number is a revision number and can be ignored when ordering

AdamView Software for Adam Modules… see near top of this page



Power Supplies

ADAM module requirement: 10 to 30 VDC (power ripple <200mV p to p)



PS12V1.5 PS12V1.5     12V DC 1.5A  Switchmode Regulated Plugpack

Individual Output Leads for Screw Terminal Connection

· Regulated       rnz    r nz
· EMI Filtered
· Slimline for use with all power boards
· Light Weight
· Overload Protection
· Short Circuit Protection

 Specifications:
Input: 100-240VAC 50/60Hz
Output: 12VDC 1.5A
Average Efficiency: >75%

Data sheet (pdf file, new tab)
PS24V1.25 PS24V1.25   24V DC 1.25A  Switchmode Regulated Plugpack

Individual Output Leads for Screw Terminal Connection
· Regulated
· EMI Filtered
· Light Weight
· Overload Protection
· Short Circuit Protection

 Input: 100-240VAC 50/60Hz
Output: 24VDC 1.25A
Average Efficiency: >80%

Data Sheet (pdf file, new tab)



DR-75-24 DIN Rail Mounting
  Regulated Power Supply
  DR75-24		 24VDC 75 watt power supply  Vout: +24VDC ±1%, 3.2 Amps, -10 to 60°C, 55.5×125.2x100mm   DR75-24
85-264VAC no switch, C tick approved  Data sheet: click here  $110+GST  zcl
S-25-12
Regulated Power Supply
  S25-12		 12VDC 25 watt power supply  Vout: +12VDC ±10%, 2.1 Amps. 0 to 50°C, 99deep x97x36mm    S25-12     zcl
100-240VAC no switch, Has output voltage adjuster. Large picture  $90+GST

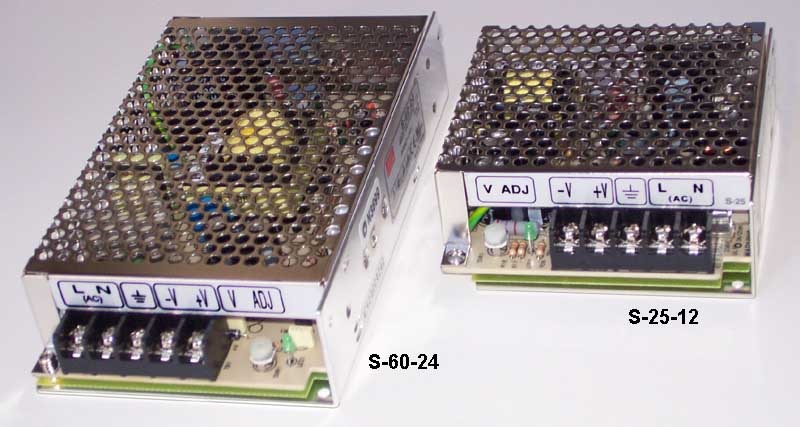

S-60-24 Panel Mounting
Regulated Power Supply

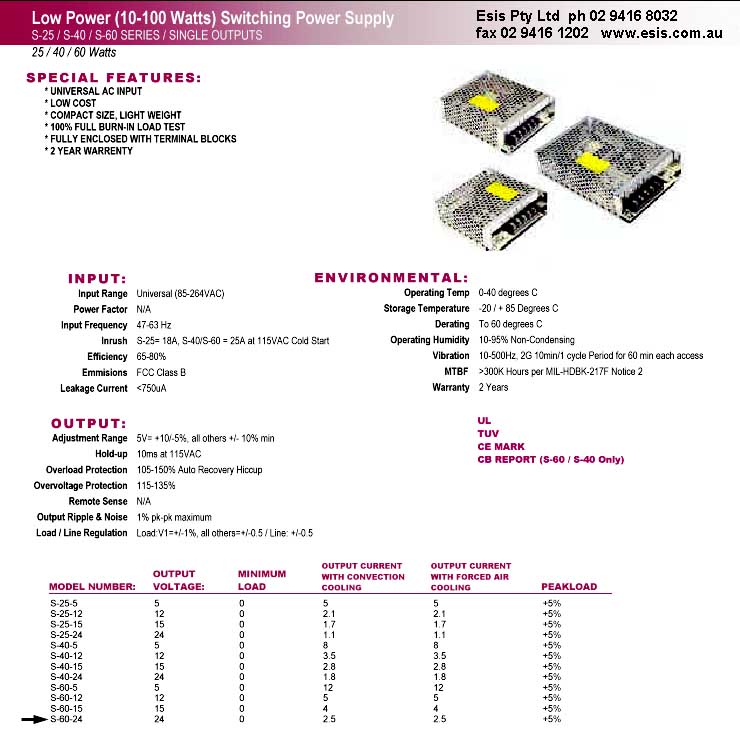

S60-24		 24VDC 60 watt power supply Vout: +24VDC ±10%, 3 A.  S60-24    zcl
90-130VAC, or 180-260VAC, switchable, 0 to 50°C, 159x97x38mm
Large picture  C-Tick approved   Data sheet: click here   $90+GST
(These links open in a new tab or page)
DIN-60 DIN Rail Mount DIN rail mount fitting for S-60-24 above   $25+GST            zcl
S-100-24
Regulated Power Supply
S100-24		 24VDC 100 watt power supply. 199x98x38mm         $125+GST         zcl
AC input switchable 10-120VAC or 200-240VAC, switch is inside the cage to avoid accidental change. Vout: 24VDC, 4.5A. Has output voltage adjuster.
Both Common and V+ output have 2 screw terminals each.
DIN-100 DIN Rail Mount DIN rail mount fitting for S-100-24        $28+GST



ADAM-4500 Intelligent PC-like Communication Controllers

ADAM-4500 has an 80188 CPU, 234KB SRAM for running programs, 256KB Flash ROM for program files (170KB free),
built-in ROM-DOS (sim to MS-DOS). Standard PC programs can run in this module.
COM1: RS232/485, COM2: RS485 with automatic data flow control for other ADAM modules,
a third RS232 port for program download,    Real time clock, Watchdog timer.
Download utility incl. 10-30VDC unreg. 2W. -10 to +70°C

ADAM-4501    Ethernet-enabled Communication Controller with 8-ch DI/O
ADAM-4501D  Ethernet-enabled Communication Controller with 8-ch DI/O and 7-segment LED

10/100Base-T Ethernet interface
Email alarm function
Built-in web server
Built-in FTP server and client
Supports versatile I/O modules
Full functions of standard TCP and UDP sockets
Optional 4 digit 7-segment LED display
Supports Modbus/RTU and Modbus/TCP function libraries
1.5 MB Flash ROM/640 KB SRAM
4 serial ports available
Integrates all operations in Windows utility

Data on ADAM-4501, -4502:

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

Prices:
ADAM-4500-AE   PC-Based Communication Controller $303+GST          9/14
ADAM-4501-AE   Ethernet-enabled Comm. Controller with 8 DI/O $407
ADAM-4502-AE   Ethernet-enabled Comm Controller 1AI/1AO/2DI/2DO $500

ADAM-4502  Ethernet-enabled Communication Controller
with 2-ch AI/O and 4-ch DI/O

With its modular design, ADAM-4502 has all the same functionality as ADAM-4501, but provides different I/O options.
The ADAM-4502 provides one Ethernet interface and 4 serial ports module,
but also features 1 analog input, 1 analog output, 2 digital inputs and 2 digital outputs.
This versatility allows users to implement rich interfaces for different applications.

10/100Base-T(X) Ethernet interface
Email alarm function
Built-in web server
Built-in FTP server and client
Supports functionally versatile I/O modules
Full functions of standard TCP and UDP sockets
Supports Modbus/RTU and Modbus/TCP function libraries
1.5 MB Flash ROM/640 KB SRAM
4 serial ports
Integrated all operations in Windows utility
Data on ADAM-4502  (pdf file, opens in new tab or window)

ADAM-4502 price – see above

Communications Modules

Power required: 10 to 30 VDC unregulated. DIN rail or panel mounting. Plug-in screw terminals.
Isolation to 3000VDC where applicable.
RS485 lines have automatic flow control, and transient protection

ADAM-4520

RS232 to
RS485/422

ADAM Module data: click here



Power supplies
see next item above



ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

 ADAM-4520 Converter Module, supports up to 32 Adam Modules on RS485 (2-wire) or RS422 (4-wire). Up to 115Kbps. RTS handshake.

Isolation: 3000VDC.   Transient suppression on RS485 lines.
RS232 to RS485 (2-wire) or RS422 (4-wire). 1200bps to 115.2Kbps, networking to 4000ft. Power & data flow indicators. -10 to 70°C. Power 1.2 W.
Automatic internal RS485 supervision – no external flow control signals required for RS485. The direction of data flow is automatically sensed, and the transmission direction is switched.
RS232 side has RTS handshake, DB9F connector at top.
RS485 half duplex has automatic direction control, transient suppression, space for termination resistors. Plug-in screw terminals.

LED Indicator: data activity:  Yellow: RS232 in,  Red: RS232 out, Orange: both

Supports up to 32 Adam Modules, or other RS485 devices.
Requires 10 to 30VDC unregulated, protected against power reversal. Case: ABS with captive mounting hardware. Has DIN-rail mounting adaptor, and SECC panel mounting bracket.

Connectors: RS232: DB9F at the top;
Screw terminals:
Gnd, +ve supply,  RS422: TX+, TX-, RX+, RX-,   RS485: DATA+, DATA-

LED on the ADAM-4520:  Green light blinking: Transmitting data;  Red light blinking: Receiving data

ADAM-4520-D2E   Isolated RS-232 toRS-422/485 converter
1-4: $111ea,   5-9: $POA,  10+: $POS each   Popular item  9/14
E at the end of the part no. indicates RoHS compliance

RS232 Cables for ADAM-4520: DB9M to DB9F (ADAM-4520 to PC Com port)  lhb
RC-3034   2m DB9M to DB9F $15+GST          zmx
RC-3036   5m DB9M to DB9F  $16+GST
M9022   10m DB9M to DB9F   $32+GST

See also  Cordless Serial Adaptor – replace serial cables with Bluetooth wireless (opens new window)

RS232 to RS232 Isolator       RS232/RS232 Isolator

RS232 to RS232 with isolation can be acheived by using two ADAM-4520 back to back using the RS422 connection between them.
You would need to use XON/XOFF handshaking.

Each ADAM-4520 needs unregulated power supply 10 to 30 VDC, e.g. Mains Adaptor see above
If they are fairly close to each other, one supply can be used for both.
ADAM-4522
RS232 to RS485/422		 Non-isolated version of above.  Not stocked in Australia… 2-3 weeks delivery.
ADAM-4510
RS485/422 Repeater		 RS485/422 Repeater allows addition of 32 modules to the network and extends the network for another 1.2km. Transient suppression on RS-485 data lines. Up to 115Kbps.
ADAM-4510S
Repeater, isolated		 As above, isolated to 3KV, Transient suppression on RS-485 data lines
Prices: below this section
ADAM-4521
Addressable
RS232 to RS485/422		 Used to interface an RS232 device to an RS485 network. Addressable, 1000VDC isol., watchdog timer, transient suppression. Auto senses direction of flow of data, no handshaking signals. Handles different baud rates between the two sides. DB9F on RS232 side.



ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

Prices:
ADAM-4510-EE   RS-422/485 Repeater         $135+GST         9/14
ADAM-4510I-AE  Wide-Temp RS-422/RS-485 Repeater $204
ADAM-4510S-EE   RS-422/RS-485 Repeater with Isolation $175
ADAM-4520-EE    RS-232 to RS-422/485 converter w/ iso. Rev. EE $111
ADAM-4520I-AE  Wide-Temp RS-232 to RS-422/485 Converter $152
ADAM-4521-AE   Addressable RS-422/485 to RS-232 Converter $221

AdamView Software for Adam Modules… see near top of this page

Fibre Optic

Fiber optics are the perfect solution for applications where the transmission medium must be protected from electrical exposure, lighting, atmospheric conditions or chemical corrosion.

Single Mode: A fiber with a small core, only a few times the wavelength of light transmitted, that only allows one mode of light to propagate. Commonly used with laser sources for high speed, long distance links.

Multimode: A fiber with core diameter much larger than the wavelength of light transmitted that allows many modes of light to propagate. Commonly used with LED sources for lower speed, short distance links.

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

ADAM-4541
Fibre Optic to
RS-232/422/485 Converter

 Up to 115.2Kbps, direct plug-and-play, half/full duplex, bidirectional, stable and error free transmission, Automatic internal RS485 bus supervision, no external flow control signals required for RS485, transient suppression, LED for power and data flow, +10 to +30Vdc.
Multi-mode, 820nm, transmission distance 2.5km,
Optical power budget (attenuation) 12.5dB, Power consumption 1W typ, 1.5W max
ST connectors for TX & RX..
Screw terminals, ST fibre connector.
1200 to 115.2Kbps                           Prices: scroll down a little
ADAM-4542+

 ADAM-4542+ converts single-mode fibre optic signals to RS-232/422/485 serial signals.
Transmission speeds of up to 115.2kbps
A newly invented redundancy feature also promises improved reliability.
Automatic internal RS-485 bus supervision
No external flow control signals required for RS-485 �
Transient suppression and over-current protection on RS-422/485 data lines �
LED for power and data flow indication

The ADAM-4542+ is specially designed to link various machinery equipped with RS-232/422/485 communication ports (such as computer systems or manufacturing machines).
Using standard SC connectors, the fiber optic port can accommodate a wide range of fiber optic cable.
ADAM-4542+ also supports the redundancy requirement.
You can use two pairs of ADAM-4542+ for a redundant architecture. This special design offers higher reliability.

Download user manual for ADAM-4542+      Prices: scroll down a little
M15073 RS232 to Fibre Optic

M15074 RS422 to Fibre Optic

 M15073 Converter RS232 to Fibre Optic with RTS/CTS

M15074 Converter RS422 to Fibre Optic

Data on both: click here (jumps to different page)

ADAM-4561   USB to
RS232/RS422/RS485



Power supplies
– see above

 ADAM-4561 1-port Isolated USB to RS-232/422/485 converter
USB v1.1
RS-232/422/485 port supported                                Prices: scroll down a little
Transmission speed up to 115.2 Kbps
Isolation protection 3000 V DC provided
Automatic RS-485 data flow control
No external power supply necessary; the hub drives its power from the USB port
Plug-and-play installation
No additional IRQs or I/O ports required
Hot attach & detach function supported
Windows 98/ME/2000, Linux drivers supported



ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.

AdamView Software for Adam Modules… see near top of this page

Prices

ADAM-4541-BE   Fiber Optic To RS-232/422/485 Converter $273+GST      9/14
ADAM-4542+-BE  Fiber Optic to RS-232/422/485 Converter $528

ADAM-4561-CE   1-port Isolated USB to RS-232/422/485 Converter $164
ADAM-4562-AE   1 port isolated USB to RS232 converter module $123

The E at the end of the part number signifies RoHS compliance.

The -A, -D or -D2 after the part number is a revision number and can be ignored when ordering.

Modbus

Some of ADAM-4000 series modules can be configured for Modbus RTU protocol.
These are indicated in the price list above.

These modules are ideally suited for existing or new Modbus networks, providing a simple, effective, low cost solution for monitoring or control applications.    Diagrams: click here

Integration with Operator Interface Panel
Benefits:
Compatible with any Operator Interface Panel
Easy I/O mapping to pre-built graphic display
Flexible network capacity based on remote architecture

Integration with SCADA Server
Benefits:
Compatible to most HMI software
Easy to build & maintain in I/O database
Flexible network capacity for both Serial and Ethernet networking.

Integration with RTU/DCS/PLC Control System
Benefits:
Easy integration with RTU/DCS/PLC Control System
A cost-effective remote I/O solution for system expansion requirements
Suitable for application in widely-distributed monitoring & control systems

Advantech provides a complete Modbus solution
– the ADAM-5511 and the ADAM-4572

The ADAM-5511 is a PC-based programmable controller with a Modbus interface,
integrating field signal (AI/O, DI/O, Counter, and Serial Communication) for data acquisition and control. See ADAM-5000 page.

On the other hand, the ADAM-4572 is a serial-to-Ethernet data gateway with a Modbus protocol,
enabling field status from the ADAM-5511 up to Enterprise data.
Data on Serial Device Servers, including Modbus Data Gateway (Advantech site, opens in new tab)

ADAM Series Brochure & Data (pdf file, 29 pages, opens in new tab)
For detailed information on ADAM-4000 Series items, see from page 19.



ADAM-4572
Ethernet-to-ModBus
RS232/RS422/RS485 Server





 While ModBus is becoming the de facto open standard for industrial networking protocol,
we can also see an ever-increasing dominance of Ethernet networking on the commercial market.
It is for sure that Ethernet will continue to make great advances into industrial networking.
With ADAM-4572 as a bi-directional communication server between Ethernet
and ModBus network, it is very easy to integrate both heterogeneous networks
within your factory.
The ADAM-4572 provides features such as 10/100 Mbps data rate for Ethernet/Fast Ethernet connection,
RS232/RS422/RS485 serial port speed up to 115.2 Kbps,
auto-searching device, ModBus RTU, ModBus/ASCII, ModBus/TCP protocol, diagnostic LEDs, RJ-45 connectors and surge protection on network.

With these merits for a true communication server between Ethernet and ModBus, the ADAM-4572 can be your best choice to integrate Ethernet and ModBus network within your factory for better network integration and resource sharing.

• Supports 10/100 Mbps communication speeds
• Allows up to 8 clients to access field data simultaneously
• Supports popular HMI software with Modbus/TCP driver or OPC server
• Up to 31 Independent serial ports if configured to RS-485 serial mode
• Provides auto-searching device ID Windows utility
• Surge protection for RS-485 and power line
• Automatic RS-485 data flow control
• Easy mounting on DIN-rail or panel
• Supports Modbus/ASCII, RTU Protocol to control devices

Data on ADAM-4572 (pdf file, opens in new tab)
Price: see above

Software Support

ADAM-4000-UTIL is included with the modules. Easy-to-use menu-driven utility software, including a terminal emulation program, makes configuration and calibration a snap.
Writing application programs with this software is simple, and you can learn the basics in just a few minutes.

PCLS-DLL-A  ADAM Windows DLL drivers are also included, see below.

ADAM modules are supported by:
ADAMView Software,

ADAM Windows DLL Driver PCLS-DLL-A

Included with ADAM modules.
This driver lets you control ADAM modules from any programming language that works with DLLs, including Visual Basic, Microsoft C++, Turbo C++ and Turbo Pascal. The driver package includes a VBX custom control for Visual basic and an easy to use Windows setup program with terminal emulation.

The driver works with COM ports 1 to 4. It supports all ADAM functions except for the ADAM-4080D’s counter (Counter/Frequency module).

Programming Example (BASIC)

If the command”#05″ is sent to a network of ADAM modules, the module whose address is 05H will respond with a reading, for example: “+4.834”.

OPEN “COM1: 9600, N, 8, 1,RS ,CS ,CD ,DS” AS #1

CMD$ = “%2333324100600″

PRINT #1, CMD$
‘ADAM-4011 is now configured to address 24H, T-type thermocouple input, 9600bps, eng. unit data format’

CMD$=”#24”

PRINT #1, CMD$       ‘Read analog input data’

RESULT$ = INPUT$(5,#1)

PRINT “Temperature = “,RESULT$

CLOSE: END

Call Now Button
