Sensors that detect soil conditions have become an important tool for modern farmers in crop production. The benefits of soil sensor are obvious. Due to differences in electrical resistance or electrical conductivity, information on soil moisture and soil particle composition can be clearly reflected, as well as intuitive conclusions on density, pH, salinity/conductivity and temperature. Through the network construction on the farm, the real-time parameters collected by the soil sensor are transmitted to the computer mainframe and connected with the system installed on the machine to realize automatic control spraying of fertilizer and pesticide. Welcome to contact for further information on soil temperature moisture sensor.
Scroll down to browse for the sensor or instrument you need, or give us a call to discuss your needs.
RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature.
Click here to show/ hide more info
RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.
Features:
On-line & real-time monitoring
Solid dielectric and PTFE liquid junction, not easy jam, maintenance free
High accuracy
Simple operation and high reliability
Internal signal isolation, strong anti-interference
Widely power supply(7-30VDC)
Probe can be used under water(IP68)

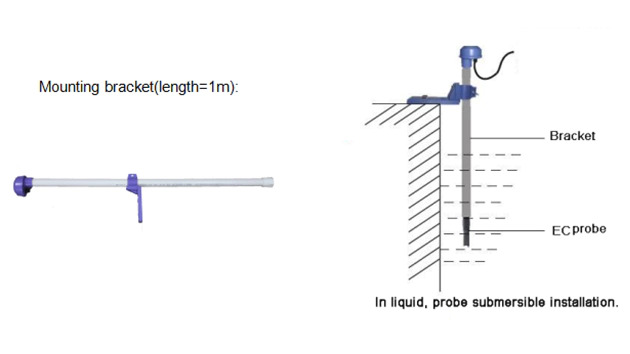

Submerged mounting bracket is optional
Applications:
Environmental protection
Agriculture
Aquaculture
Water conservancy
Sewage treatment
Industrial wastewater treatment
Specifications:
Item
Technical Specification
Measurement Principle
Electrochemistry
Range
0-14PH
Supply
7-30VDC(power consumption<0.2W)
Accuracy
±0.05PH
Resolution
0.01PH
Temperature Compensation
Temperature compensation is optional
Response time
<8s(flowing liquid), <14s(stationary liquid)
Stability
≤0.01PH/24h
Output Signal
4-20mA & RS485 at the same time
Calibration Cycle
Every 6 month(General water )
Every 3 month or shorter(Seriously polluted water )
Operating Environment
0-+80℃(<0.6MPa), high pressure is customizable
Cable length
5m(default),customizable
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH
PH SCALE:
PH value
Description
PH value
Description
<4.5
Strongly acidity
7.5-8.5
Faintly alkalinity
4.5-5.5
Acidity
8.5-9.5
Alkalinity
5.5-6.5
Faintly acidity
>9.5
Strongly alkalinity
6.5-7.5
Neutral
Ordering Instructions:
Electrode Maintenance:
PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);
Clean the electrode with tap water every 3 months or 6 months according to the working environment.

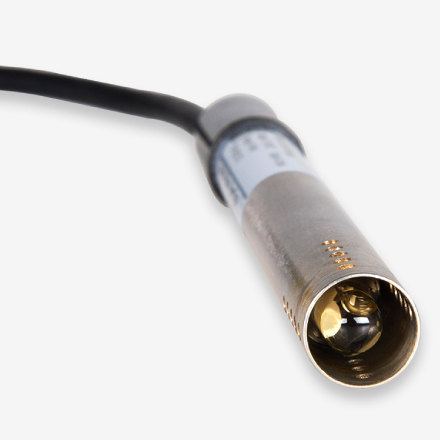

RK500-22 pH sensors measure the pH value should be a good solution without professional calibration instruments, complex operation, expensive and difficult to carry, can be for continuous measurement of soil, waste water pH value
Click here to show/ hide more info
The soil contains many substances such as organic acid, inorganic acid, alkali and salt, due to the different content of various substances, so the soil shows different ph value. Usually the pH in the range of 6.5-7.5 soil is called the neutral soil. RK500-22 pH sensors measure the pH value should be a good solution without professional calibration instruments, complex operation, expensive and difficult to carry, can be for continuous measurement of soil, waste water pH value, suitable for agriculture, sewage treatment plant, chemical industry, printing and dyeing, paper making, pharmacy, electroplating and environmental protection and other fields.
Features:
On-line & real-time monitoring
Low impedance sensitive glass film
RS485 and 4-20mA output at the same time, directly connected to computer and PLC systems
Good repeatability and thermal stability
Internal signal isolation, strong anti-interference
Widely power supply
IP68 Waterproof Standard
Low drift, small size, fast response
Easy installation, simple
Stable performance and long service life
Aviation connector is optional to facilitate electrode replacement
Applications:
Environmental protection
Agriculture
Aquaculture
Water conservancy
Sewage treatment
Soil remediation
Specifications:
Item
Technical Specification
Measurement Principle
Electrochemistry
Range
0-14PH
Supply
7-30VDC(power consumption<0.2W)
Accuracy
±0.05PH
Resolution
0.01PH
Response time
<10s (soil moisture>30%)
Stability
≤0.01PH/24h
Output Signal
4-20mA & RS485 at the same time
Calibration Cycle
Every 6 month
Operating Environment
0-+80℃(<0.6MPa)
Cable length
5m(default),customizable
Probe material
304SS
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH
PH SCALE:
PH value
Description
PH value
Description
<4.5
Strongly acidity
7.5-8.5
Faintly alkalinity
4.5-5.5
Acidity
8.5-9.5
Alkalinity
5.5-6.5
Faintly acidity
>9.5
Strongly alkalinity
6.5-7.5
Neutral
Electrode Maintenance:
PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);
Clean the electrode with tap water every 3 months or 6 months according to the working environment.
Product Details:
Part No
Product Detail
Price (ex-GST)

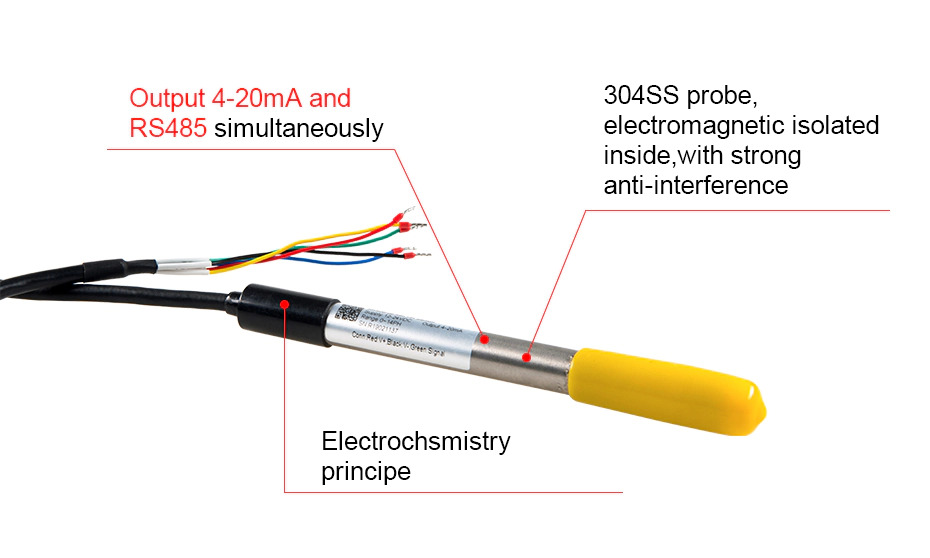

RK500-22
Soil PH Sensor
Range: 0-14PH
Accuracy: ±0.05PH
Resolution: 0.01PH
Output Signal: 4-20mA&RS485 at the same time
Supply: 7-30V

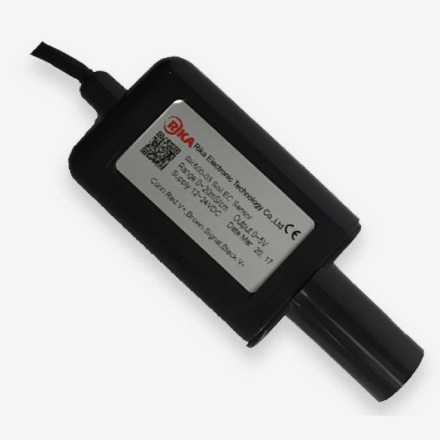

Used in the field monitoring of water & salt dynamics in soil. Therefore, it is an ideal observation instrument in the study of generation, evolution, and improvement utilization of saline soil.
Click here to show/ hide more info

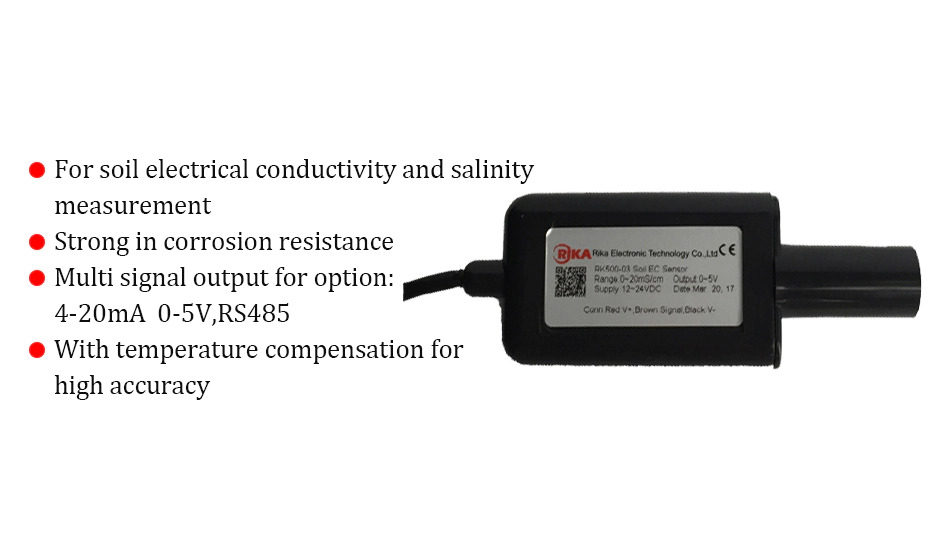

The probe of EC sensor is made of graphite electrode that has the characteristics of stable performance, high sensitivity, wide application scope. EC sensor is of simple structure, with stable performance, easy for operation, used in the field monitoring of water & salt dynamics in soil. Therefore, it is an ideal observation instrument in the study of generation, evolution, and improvement utilization of saline soil. Also, it can be used in the anti-corrosion monitoring of underground oil, gas pipelines and other pipelines. The sensor an also be directly submerged in liquid, to measure its electrical conductivity.
Soil salinity sensor integrates graphite electrode and precision platinum resistance, to measure the soil salt through temperature compensation algorithm. After submerged into the soil, it can directly test salt content in the soil.
Features:
On-line & real-time measurement
With temperature compensation
High accuracy
Simple operation and high reliability
Fast response
Strong resistance to corrosion
Applications:
Environmental protection
Agriculture & planting
Forestry
Soil quality measurement
Sewage treatment
Oil and gas pipeline corrosion monitoring
Item
Technical Specification
EC
Salinity
Range
0-20mS/cm
0-0.15mol/L
Supply
5VDC, 12-24VDC
Accuracy
±2%
Response time
<1s
Output Signal
4-20mA,0-2V,0-5V,RS485
Electrode
Graphite
Housing material
ABS
Operating Temperature
-30℃-+70℃
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH

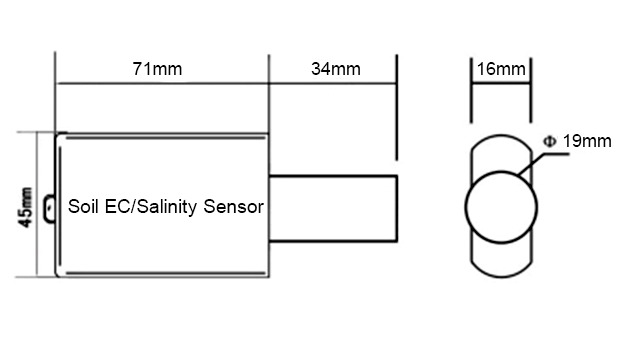

Dimension:
Installation & Usage:
1. In Soil
Section installation
In the area of need to measure dig a soil profile, determine the position of the sensor and depth in the section, the section on level to dig deep for 10-20 cm round hole, insert the sensor level until the bottom of the hole, then filled out of the clay compaction, to ensure that the sensor electrode surface closely contact with soil.Sensors buried, the soil pit backfill compaction sequence according to the original soil layer.
Ground stiletto installation
In the measurement area, down from the ground to play a hole to the desired depth, sensor inserted to the bottom of the hole, closely contact with the soil, will then stratified backfill compaction.
Sensor design based on the principle of fluorescence and high performance through oxygen membrane, with short response time, measurement accuracy, stable performance, etc.
Click here to show/ hide more info
RK500-23 Dissolved Oxygen(DO) Sensor design based on the principle of fluorescence and high performance through oxygen membrane, with short response time, measurement accuracy, stable performance, etc. It can be widely used in chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmaceutical, biochemical, food, aquaculture and water such as continuous monitoring of dissolved oxygen in the solution.
Features:
On-line & real-time monitoring
Low impedance sensitive glass film
RS485 and 4-20mA output at the same time, directly connected to computer and PLC systems
Good repeatability and thermal stability
Internal signal isolation, strong anti-interference
Widely power supply
IP68 Waterproof Standard
Low drift, small size, fast response
Easy installation, simple
Stable performance and long service life
Aviation connector is optional to facilitate electrode replacement
Applications:
Environmental protection
Agriculture
Aquaculture
Water conservancy
Sewage treatment
Soil remediation
Specifications:
Item
Technical Specification
EC
Salinity
Measuring medium
Soil or similar to soil
Principle
Frequency conversion method
Range
0～1000us/cm, 0～2000us/cm,0～5000us/cm,0～10000us/cm,0～200ms/cm,(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)
0～100000ppm(mg/L)
1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)
Supply
7-30VDC(power consumption<0.2W)
Accuracy
±1%
Response time
1s
Output Signal
4-20mA & RS485 at the same time
Electrode
Titanium alloy
/
Temperature compensation
/
Automatic compensation
Drift
≤0.3%FS/24h
Operating Temperature
-20℃-+80℃
Probe material
316L
Probe material
Φ13*175mm
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH
Cable length
Default:5m

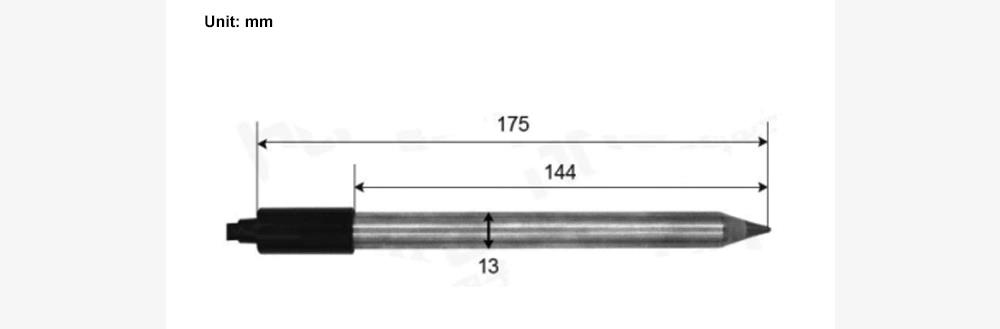

Dimension:
Product Details:
Part No
Product Detail
Price (ex-GST)

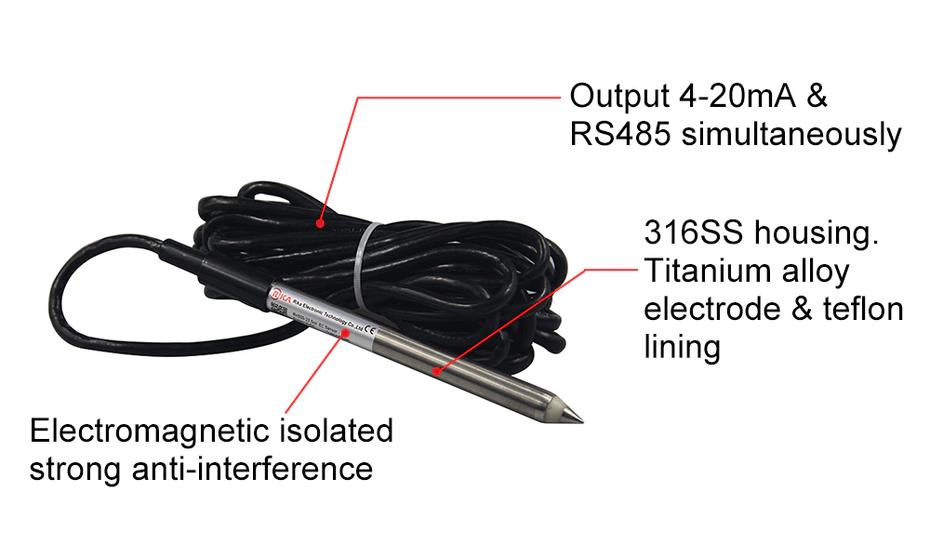

RK500-23

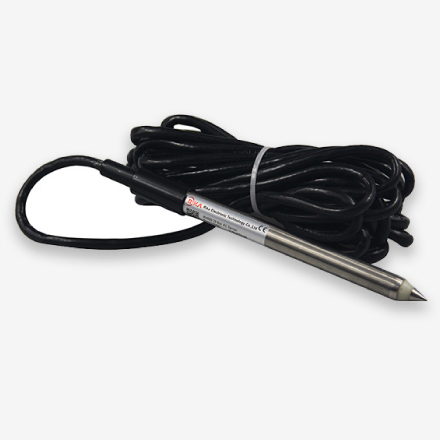

Soil EC &Salinity Sensor Range: 0-300mS/cm, 0-0.1mol/L Accuracy: ±1% Output Signal: 4-20mA&RS485 at the same time Supply: 7-30V IP68

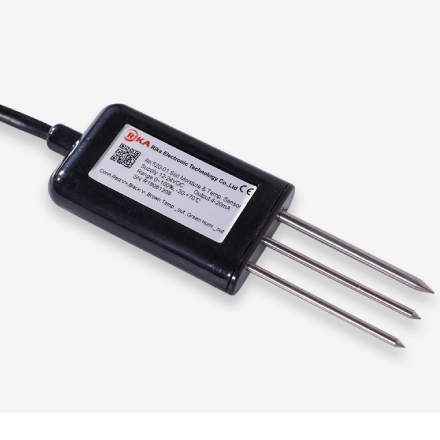

Soil Moisture & Temperature Sensor to integrate the moisture and temperature measurement. The stainless steel probe is inserted into soil surface or soil profile to test soil moisture and temperature quickly.
Click here to show/ hide more info
RK520-01 Soil Moisture & Temperature Sensor to integrate the moisture and temperature measurement. The stainless steel probe is inserted into soil surface or soil profile to test soil moisture and temperature quickly. Moisture measurement part is designed on the basis of the principle of FDR, by measuring the dielectric constant of the soil in order to measure the volume of the soil moisture content, temperature part adopts precision platinum resistance element, the product built-in drift calibration and temperature compensation circuit, can adapt to most applications. The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
Features:
High precision
Fast response
Soil properties affect little
Directly buried in soil
Widely used
Applications:
Agriculture irrigation
Greenhouse
Grass farm
Environment monitoring
Water conservation
Soil testing
Specifications:
Item
Technical Specification
Moisture
Temperature
Range
0-100%（m3/m3）
-30℃- +70℃
Accuracy
±3%(0-50%)
±0.3℃
Output Signal
4-20mA ,0-5V,0-2V,RS485 optional
Response Time
<1s
Supply
5VDC, 12-24VDC
Effective measurement area
With the center of the probe diameter is 70mm, high 70mm cylinder
Housing
ABS
Dimensions
71*45*16mm( probe:2* Ø3*55mm,1*Ø4*55mm)
Operating Temperature
-40℃- +80℃
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH
Probe material
316L stainless steel

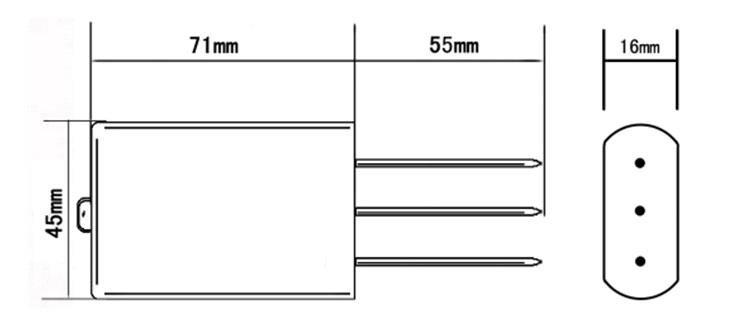

Dimension:
Mounting:
Testing medium should be with uniform intensity.

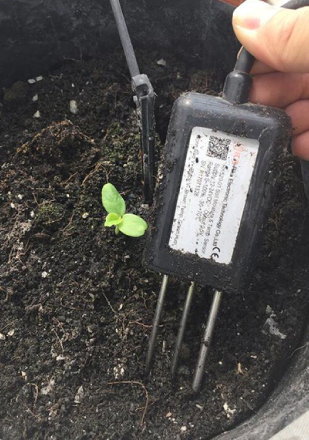

If surface soil water content measurement, the sensor should be insert into soil vertically. Do not shake the sensor when inserted, otherwise the probe will be blended;

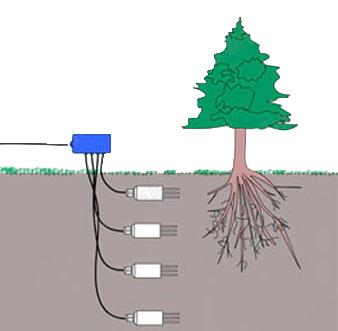

If multi-layer soil water content measurement, the sensor should be buried in the soil and parallel to the ground. Make sure the probe not be blended;
When removing sensors from the soil, please hold the sensor housing shell and do not forcibly pull on the cable. Soil on probes should be brushed tightly.

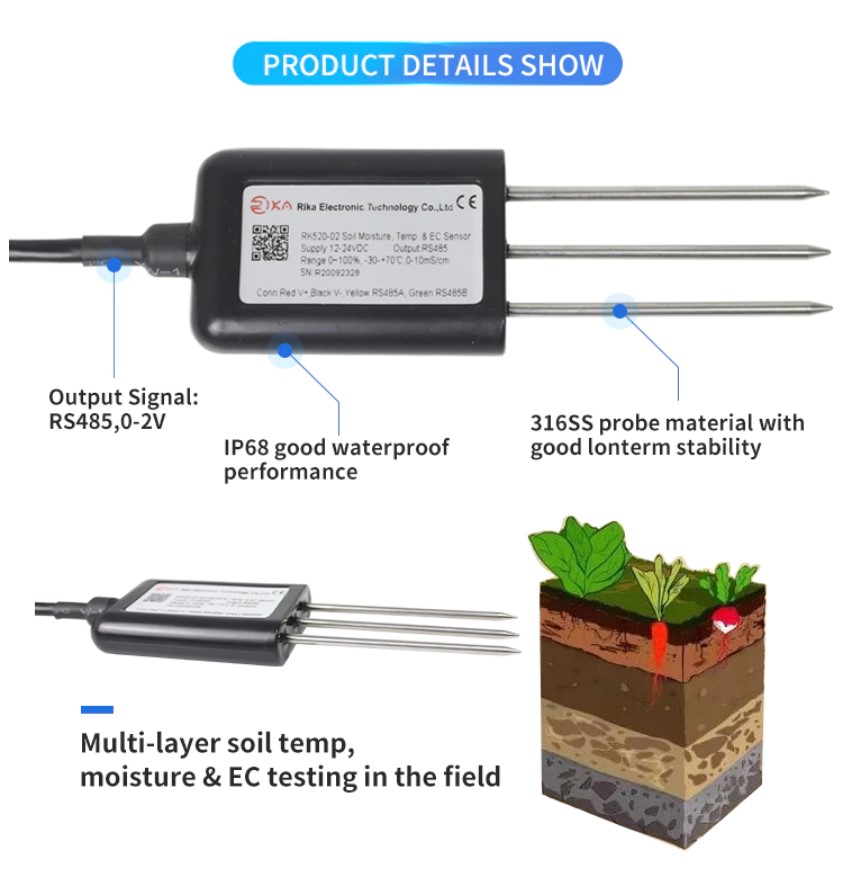

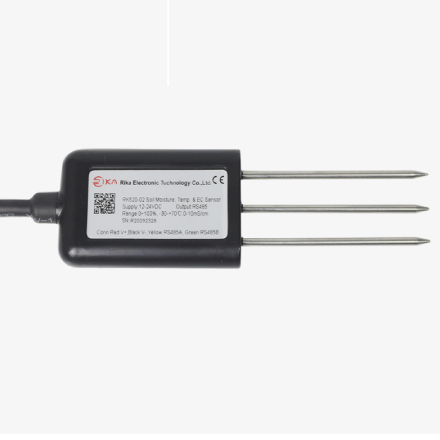

RK520-02 Soil Moisture Sensor, Temperature Probe & EC Sensor
Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement. The stainless steel probe is inserted into soil surface or soil profile to test quickly.
Click here to show/ hide more info
RK520-02 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement. The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement. The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
Features:
High precision
Fast response
Suitable for saline-alkali soil
Can work long-term immersion
Soil properties affect little
Directly buried in soil
Widely used
Applications:
Agriculture irrigation
Greenhouse
Grass farm
Environment monitoring
Water conservation
Soil testing
Specifications:
Item
Technical Specification
Moisture
Temperature
Range
0-100%（m3/m3）
-30℃- +70℃
Accuracy
±3%(0-50%)
±0.3℃
Output Signal
4-20mA ,0-5V,0-2V,RS485 optional
Response Time
<1s
Supply
5VDC, 12-24VDC
Effective measurement area
With the center of the probe diameter is 70mm, high 70mm cylinder
Housing
ABS
Dimensions
71*45*16mm( probe:2* Ø3*55mm,1*Ø4*55mm)
Operating Temperature
-40℃- +80℃
Ingress Protection
IP68
Storage
10-60℃@20%-90%RH
Probe material
316L stainless steel

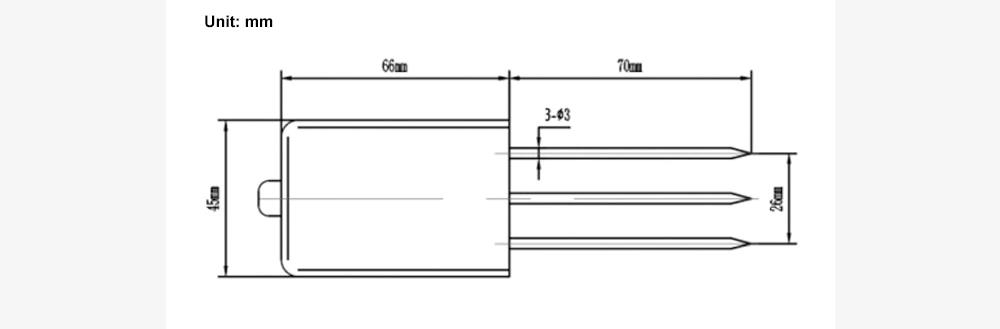

Dimension:
Mounting:
Testing medium should be with uniform intensity.
If surface soil water content measurement, the sensor should be insert into soil vertically. Do not shake the sensor when inserted, otherwise the probe will be blended;
If multi-layer soil water content measurement, the sensor should be buried in the soil and parallel to the ground. Make sure the probe not be blended;
When removing sensors from the soil, please hold the sensor housing shell and do not forcibly pull on the cable. Soil on probes should be brushed tightly.
