23.8” Panel PC’s – CyberVisuell
A versatile range of Industrial Grade 23.8” All In One Panel PC’s with CPU’s from Celeron to i7
Equipped with a vibrant widescreen 23.8” TFT LCD display with LED backlighting, our Panel PCs provide Full HD 1920*1080 resolution, ensuring sharp and clear visuals even in challenging lighting conditions. Read More
Our ruggedized Panel PCs are powered by a range of high-efficiency Intel processors, from the low cost Celeron series to the performance focused Core i3/i5/i7 series, perfect for data-intensive tasks prevalent in industrial settings.
The intuitive multi-point projected capacitive touch provides seamless and precise control, allowing your operations to run with utmost efficiency.
Built with a robust aluminum-magnesium alloy and anodized treatment, our Panel PCs exhibit a modular and rugged design that stands the test of time and harsh environments. These devices are expertly engineered to operate over a wide temperature range, assuring reliable performance under extreme industrial conditions.
CyberVisuell’s 23.8″ Panel PCs embrace a fanless and slim design for noise-free and dust proof operation, an essential feature for many industrial applications. These devices also offer flexible mounting options, including Panel mount and VESA, ensuring easy integration into any industrial setup.
Our devices are built with Front IP65 protection, providing robust resistance against dust, moisture, and various other environmental hazards, making them rugged and suitable for industrial use.
On this page:
Other related pages:
Slim Panel PC Models
CyberVisuell’s slim panel PC’s provide maximum mounting versatility: a VESA mounting point allows the monitor to be easily mounted onto a bracket, or the front IP65-rated screen can be mounted into a panel. These models have a reduced number of I/O ports on the rear, due to their slim profile, but still include enough connections to suit the majority of applications.

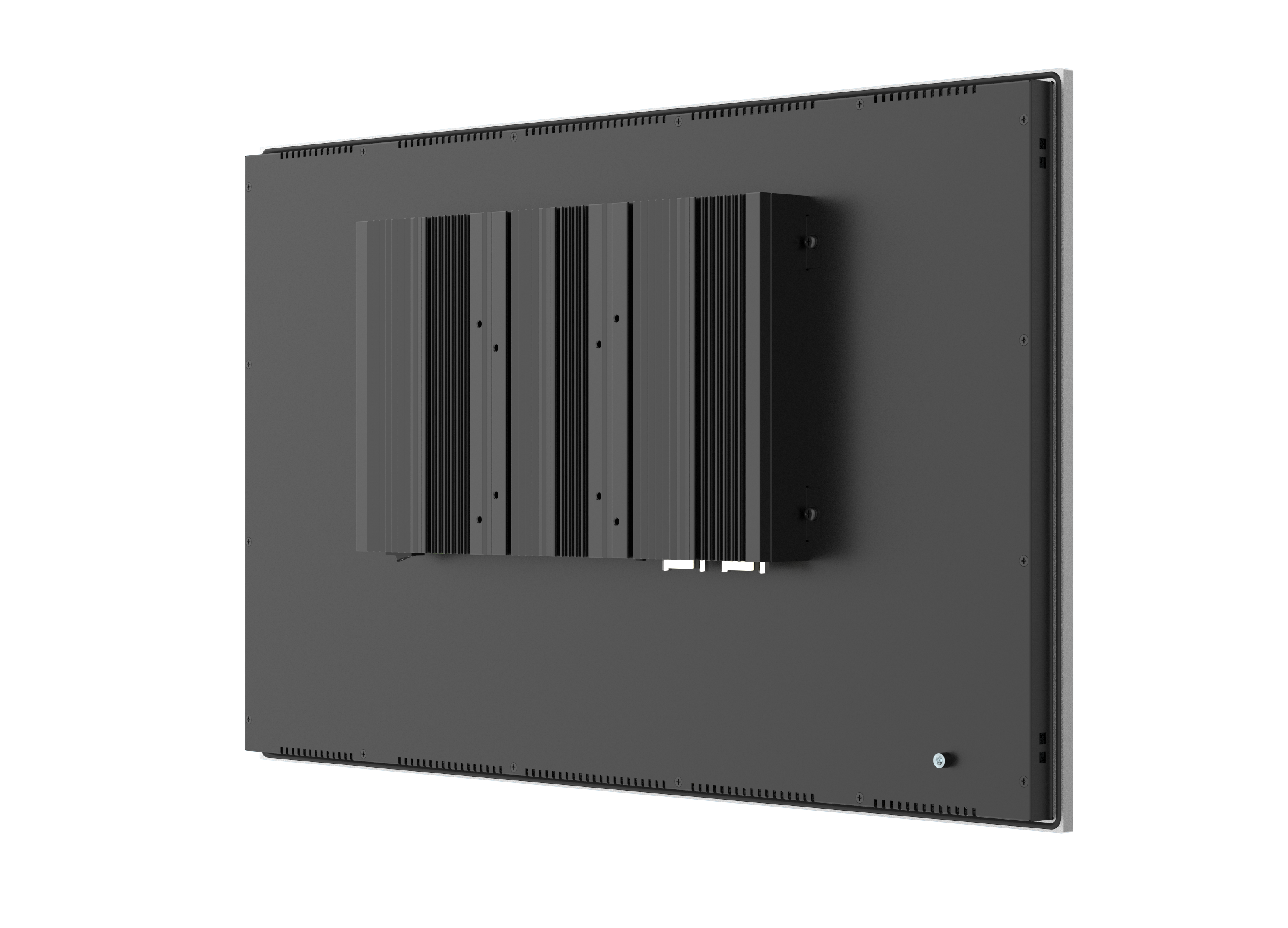

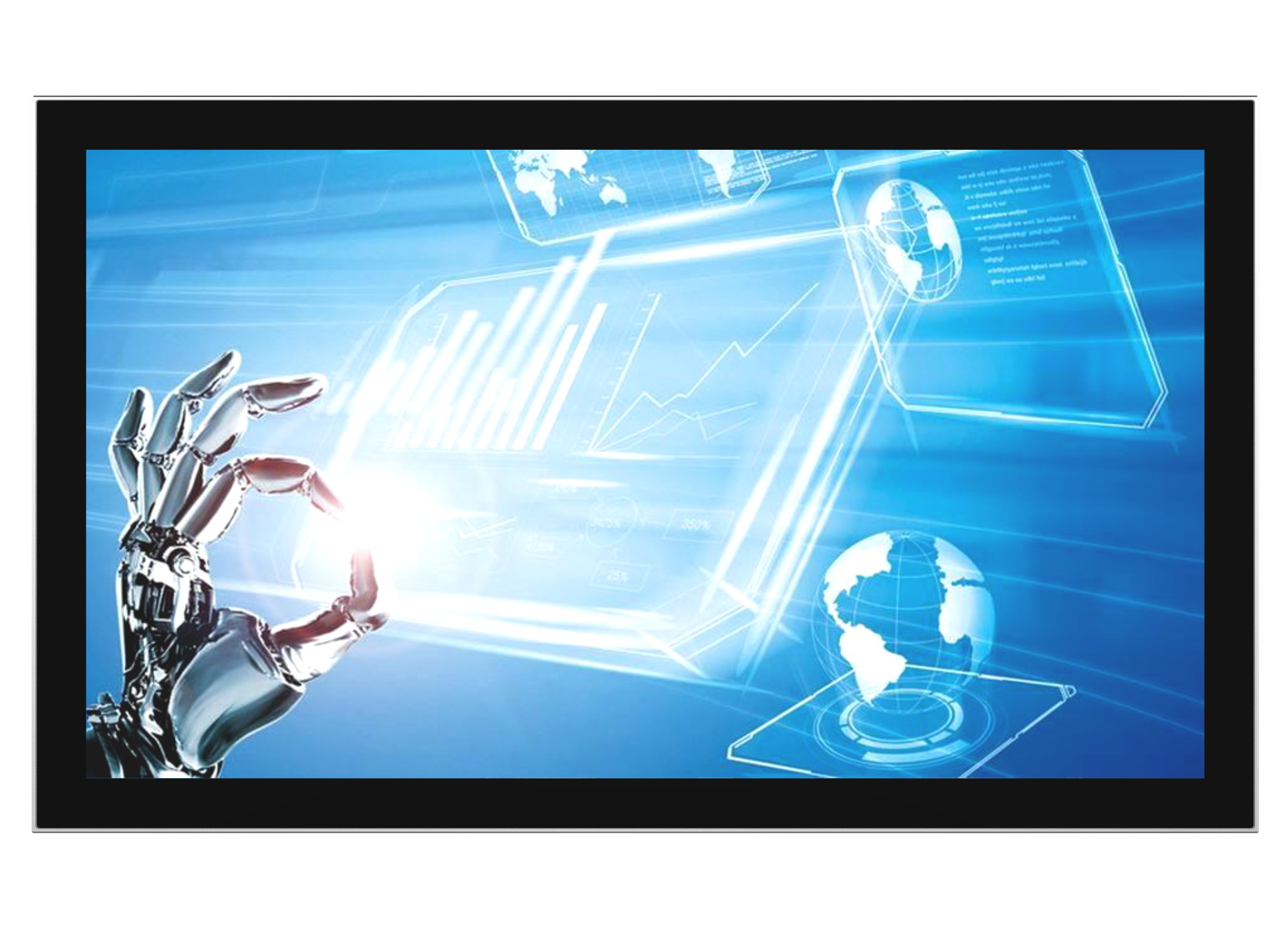

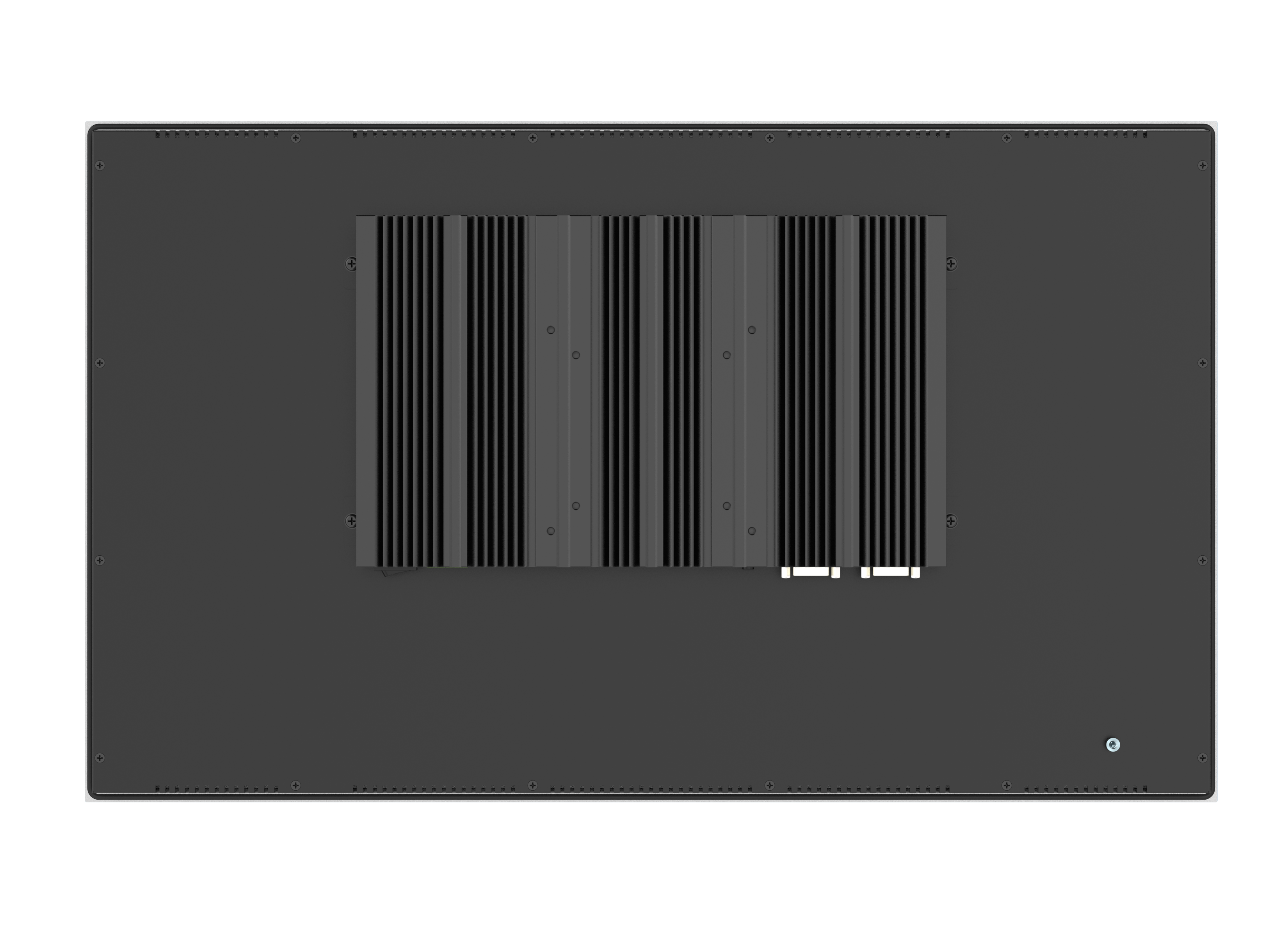

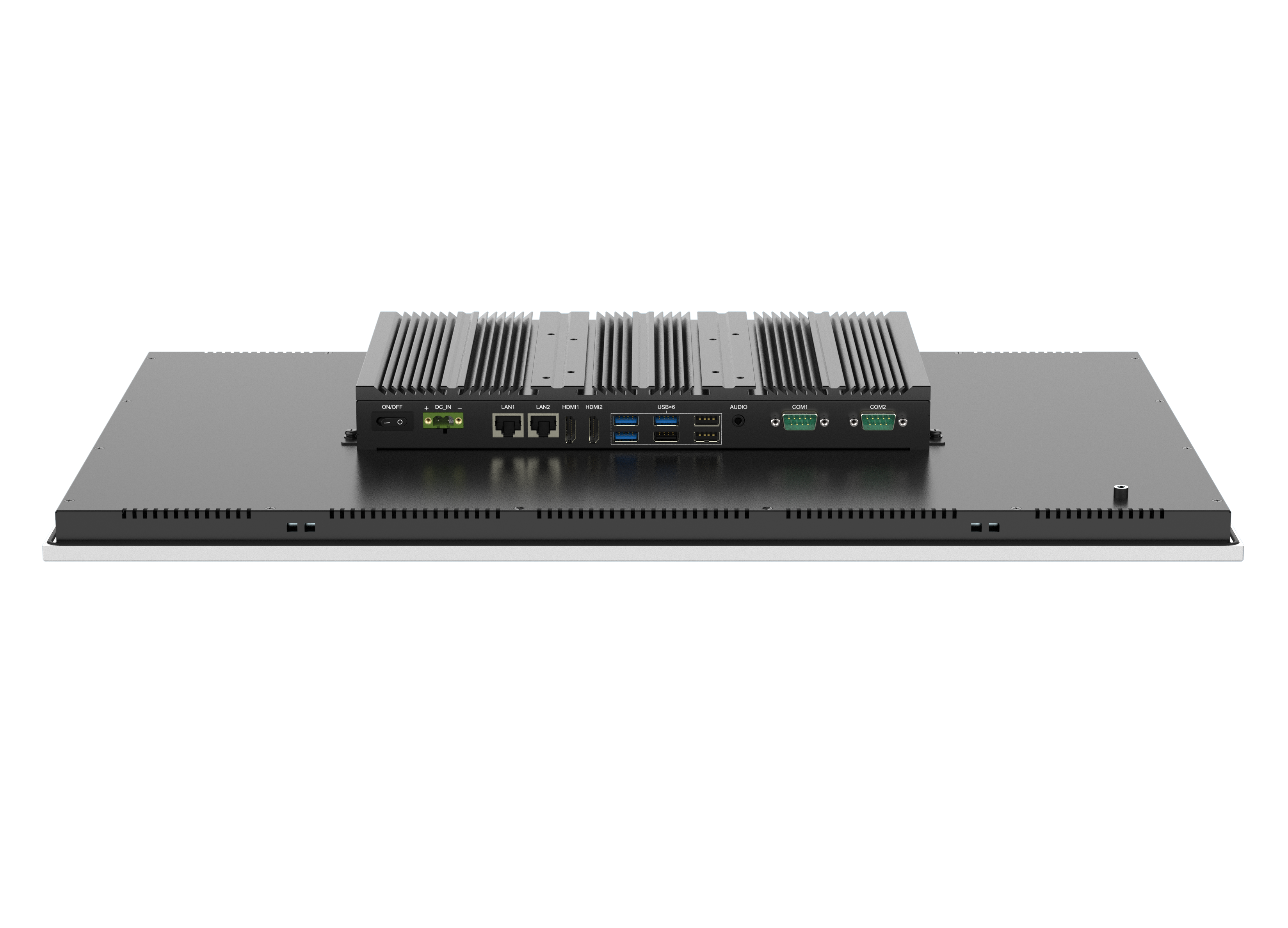

PPC-DS238-E1-CT CyberVisuell Industrial Panel PC

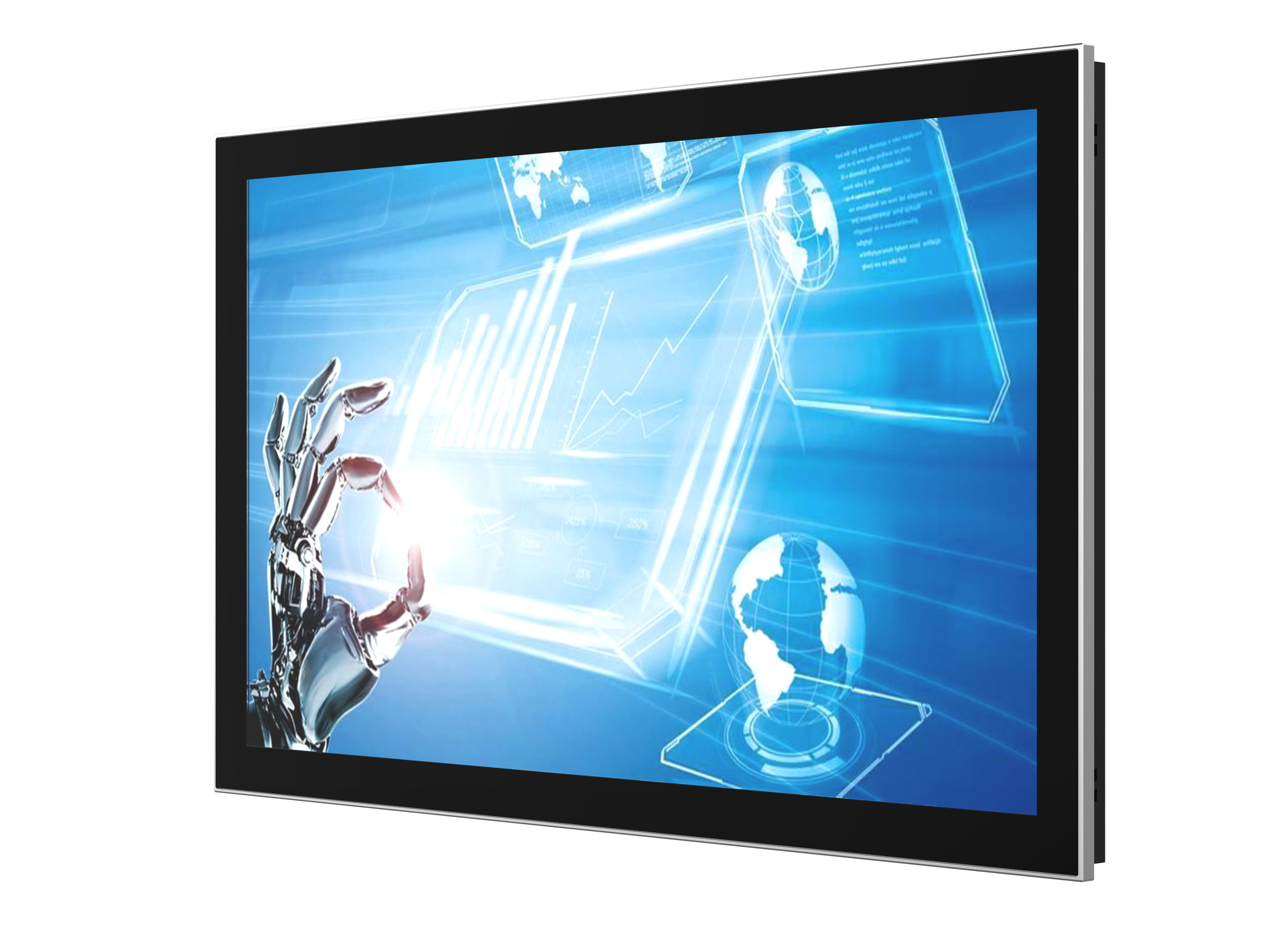

23.8″ Panel PC with Elkhart Lake Celeron J6412 processor. Slim fanless design, Audio. Supports Windows 10 / 11, features Front IP65 protection.
Price guide: $2445+GST (incl 8GB RAM + 256GB SSD)
Read more
Features:
- Widescreen 23.8” TFT LCD display, LED Backlit, Full HD 1920 *1080;
- Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz;
- 1* DDR4 memory, up to 32GB, 1* M.2 NVME and 1* 2.5” SATA storage;
- Multi-point projected capacitive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide voltage DC 9~36V range;
- IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
![](ghtbox[{"urls":["ghtbox[{"https://www.esis.com.au/wp/wp-content/uploads/2024/07/PPC-DS238E1.6.png":0}]":0}]){kind=link}
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
| Part no. | Description | Datasheets | Price ex-GST with 8GB/256GB |
| PPC-DS238-E1-CT | 23.8”, 1920 * 1080, Celeron J6412, Quad-core 2.0Ghz, Pcap. touch, 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS238-E1-CT | $2,445 |
| -4G / -8G/ -16G/ -32G | SO-DIMM, DDR4, 4GB/8G/16G/32G Memory | ||
| -256GS / -512GS | M.2 SSD: 256GB/512GB | ||
|
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB 2.5” HDD: 2TB/4TB |
|||
| TBOX-WIFI | Wi-Fi module, with Antenna | ||
| TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
| EM06-E-PCKit | All network 4G/LTE module, With Antenn | ||
| 5G module, with Antenna | |||
| TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
| TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
| System & Hardware | |
| BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| Storage | 1* M.2 2280 M-key (PCIe x2 Gen.III NVMe) SSD, 1* 2.5” SATA-III SSD |
| Graphic | Intel UHD Graphics for 10th Gen Intel processors |
| Network | 2* Intel I225 GBE LAN chip (Optional wireless 3G/4G, Wi-Fi/BT, 4G/5G) |
| Audio | On-board Realtek ACL 897 audio controller |
| Expansion | 1* M.2 Key-B 3052 slot, 1* Mini-PCIe slot |
| Watchdog | 0 ~ 256 seconds programmable |
| OS | Win10, Win11, Linux, Ubuntu |
| I/O interface | |
| COM | 2*RS232 (Optional 1* RS485) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps |
| Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
| USB | 3x USB3.0, 3x USB2.0 |
| Display | 2x HDMI |
| Power | 1x 2 pins, phenix terminal |
| LCD Display | |
| Size/Type | 23.8” TFT LCD |
| Resolution | 1920 * 1080 (Full HD) |
| Brightness | 250 nits |
| Backlit & MTBF | LED backlit & 30 000hours |
| Display area | 527.04 * 296.46 |
| View angle | 89/89/89/89 |
| Touchscreen | |
| Type | Projective capacitive touchscreen |
| Touch points | Multi points touch, max. up to 10 points (Pcap) |
| Durability | >100 000 000 times (PCap) |
| Surface hardness | Glass, Mohs 6H hardness (PCap) |
| Special treatment | Anti-fingerprint (PCap) |
| Structure | |
| Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
| Mount method | Panel mount, VESA 75/100 |
| Cooling system | Large area finned heat sink |
| Overall dimension | 578.4 * 347.9 * 57.0 (mm) |
| Cut-out dimension | 568 * 338 (mm) |
| Net weight | 7.6 KG |
| IP protection | Front Panel IP65 |
| Power & Environmental | |
| Operating temp. | 0～+60℃ |
| Storage temp. | -20～+70℃ |
| Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
| Shock | 10G/Peak (11 ms) |
| Power input | DC 12V (Optional DC 9~36V) |
| Power consumption | Around 40W |
| EMC | CE/FCC Class A |
PPC-DS238-T1 CyberVisuell Industrial Panel PC

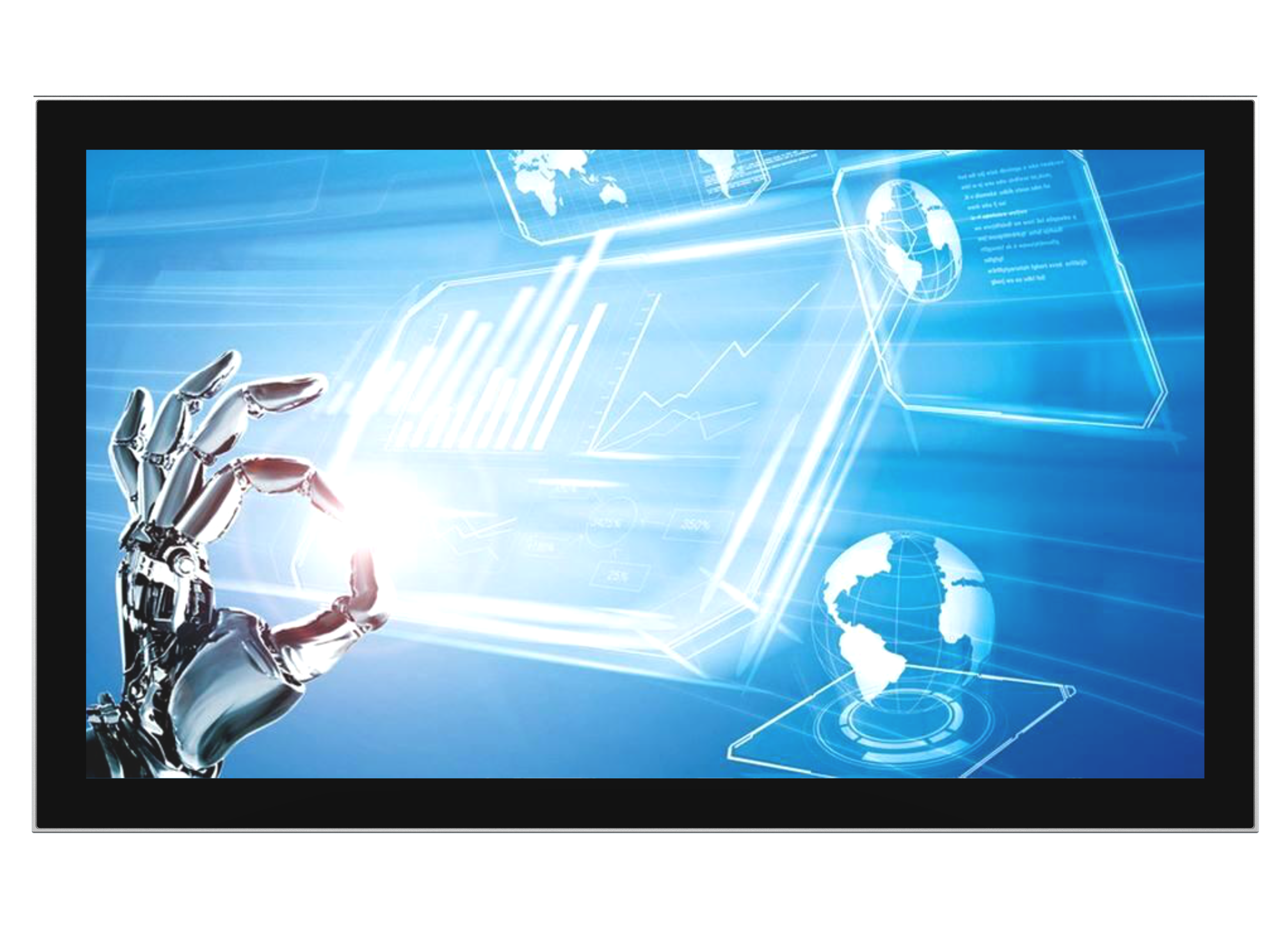

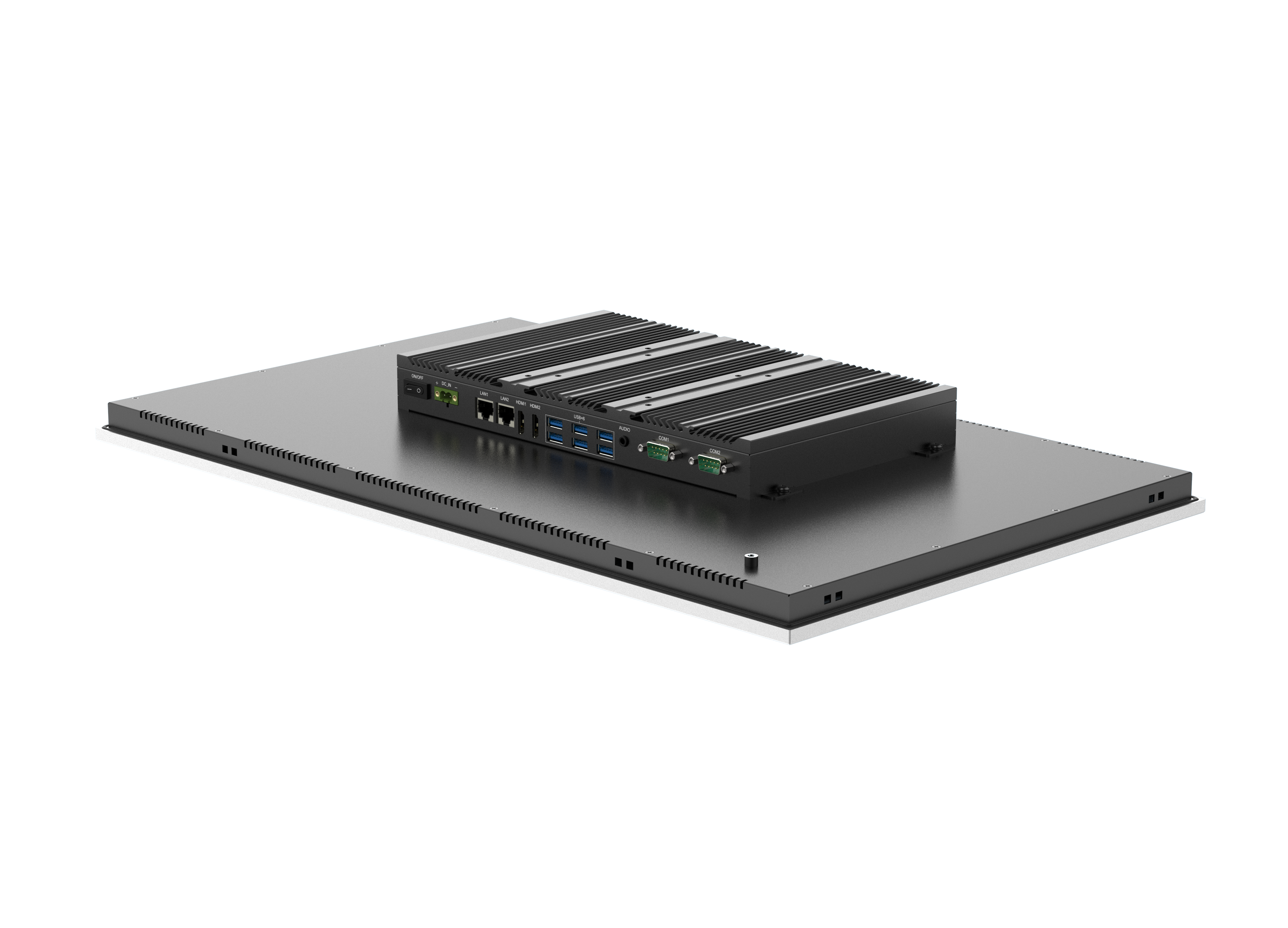

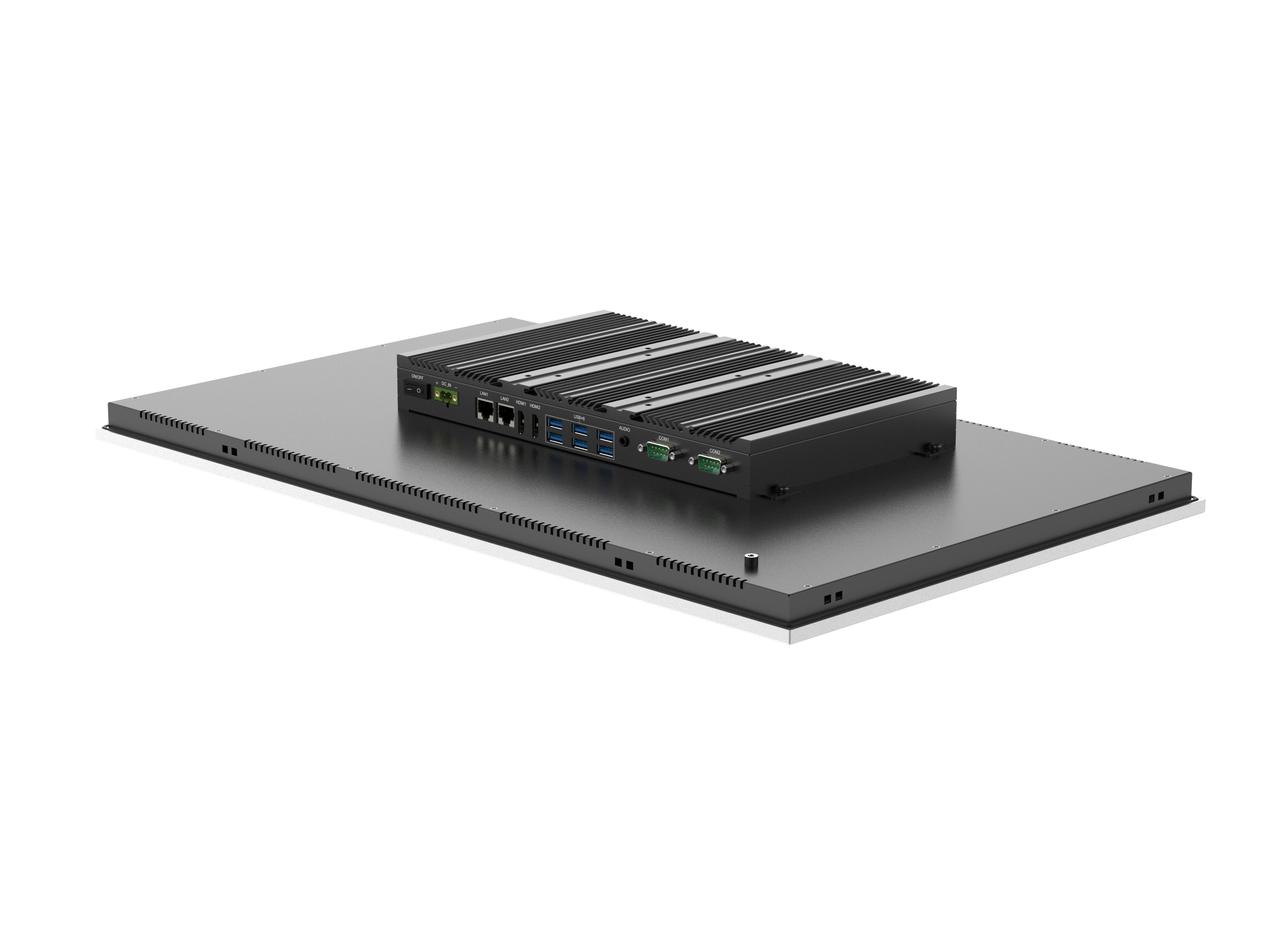

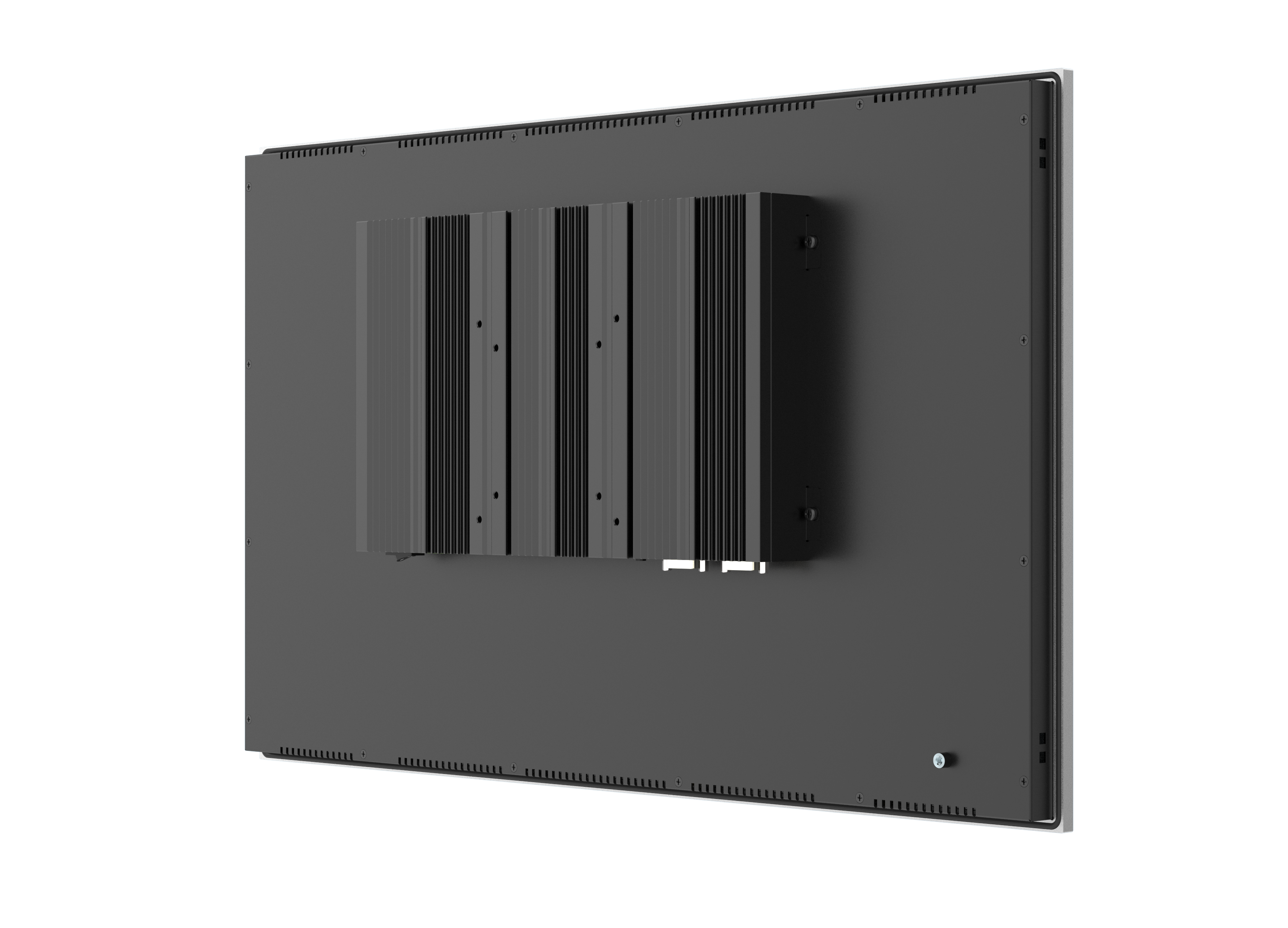

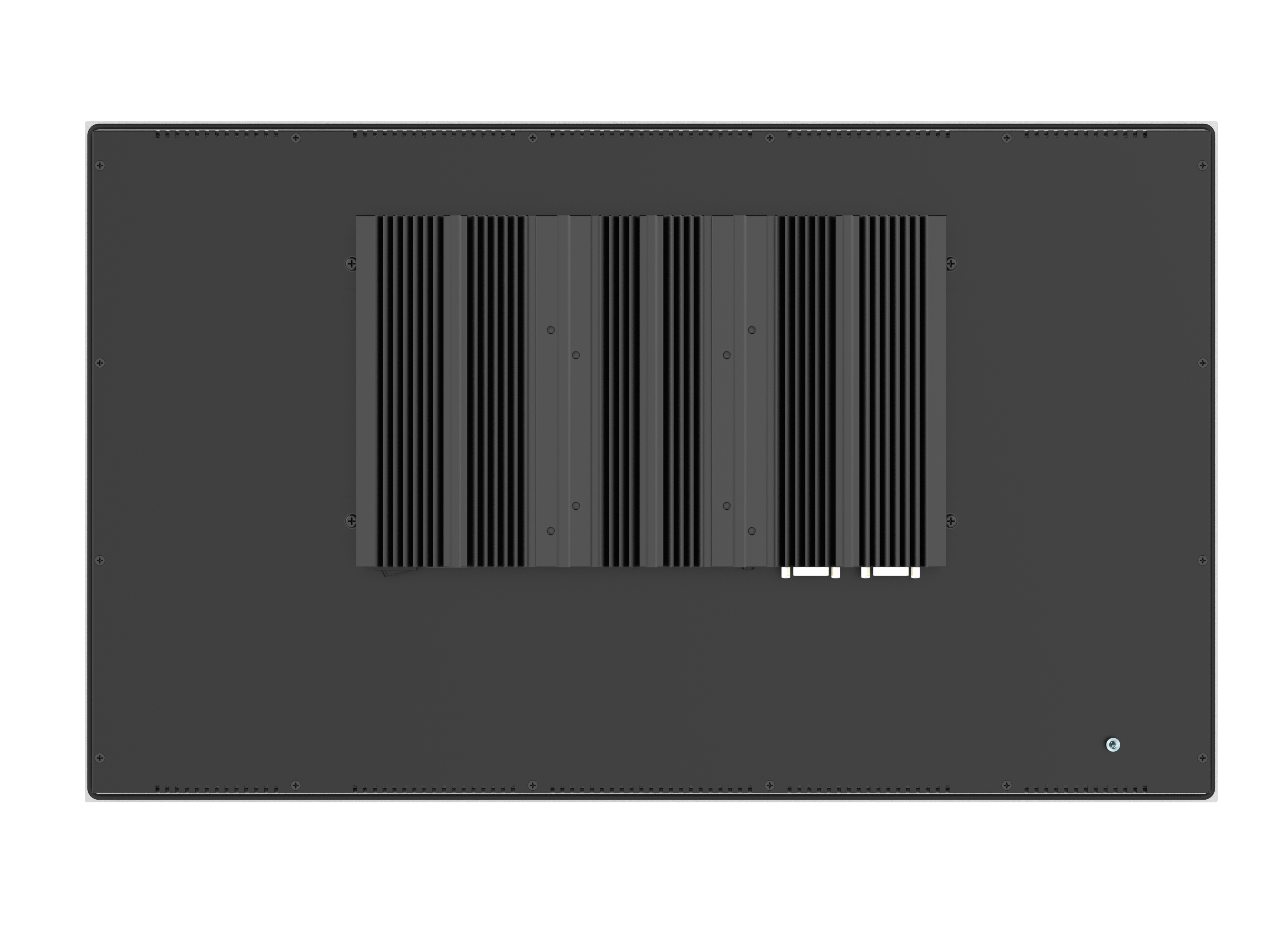

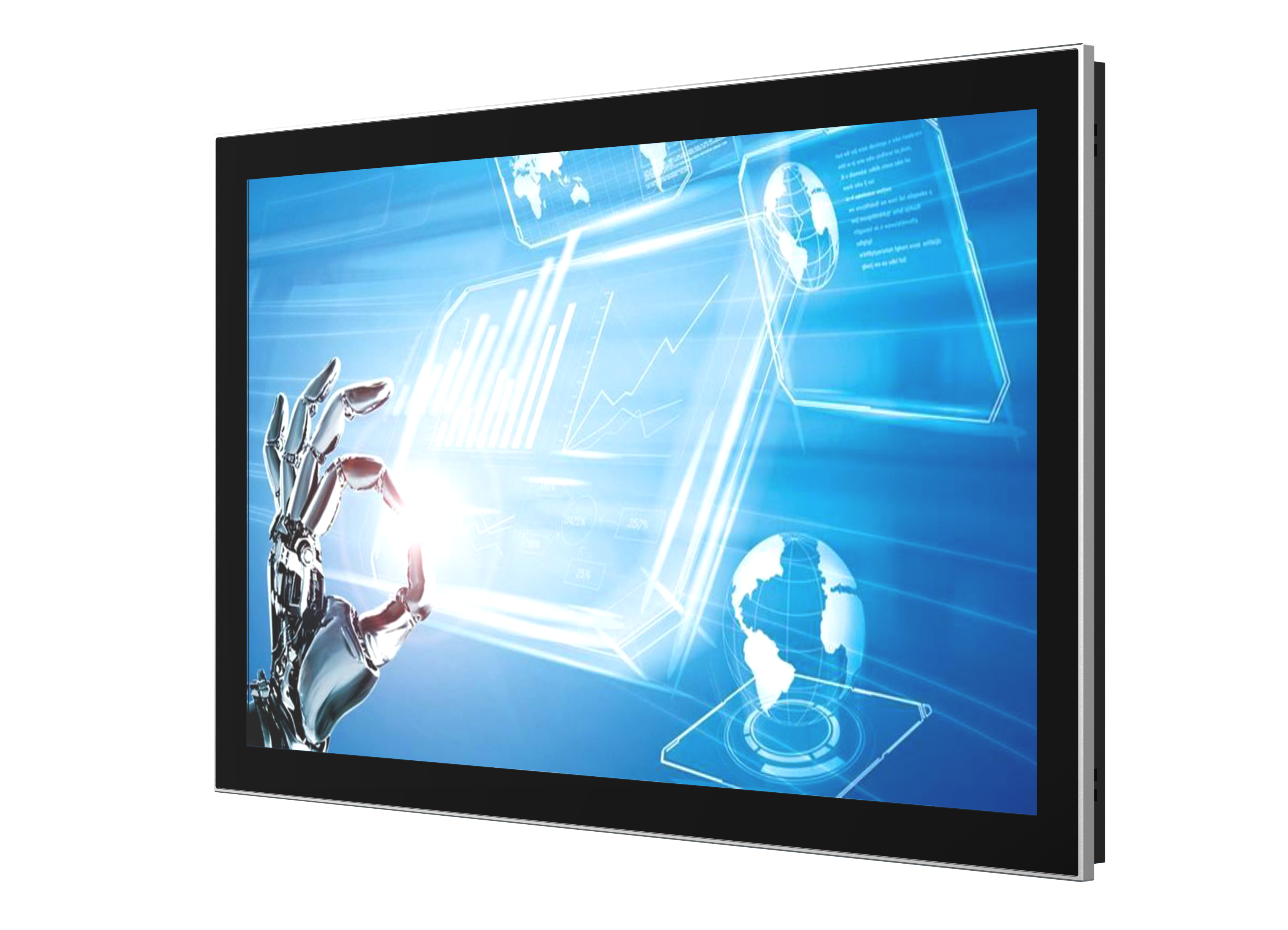

23.8″ Panel PC with 11th-gen Tiger Lake i3-1115G4 processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $2897+GST (incl 8GB RAM + 256GB SSD)
Read more
Features:
- Widescreen 23.8” TFT LCD display, LED Backlit, Full HD 1920 *1080;
- Intel 11th Gen. Tiger Lake Core i3 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, Support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
![](lightbox[{"lightbox[{"https://www.esis.com.au/wp/wp-content/uploads/2024/07/PPC-DS238T.1-1.png}){kind=link}
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
| Part no. | Description | Datasheets | Price ex-GST with 8GB/256GB |
| PPC-DS238-T1-CT | Core i3-1115G4, Dual-core 4.10Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS238-T1-CT | $2,897 |
| -4G / -8G/ -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
| -256GS / -512GS | M.2 SSD: 256GB/512GB | ||
|
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB 2.5” HDD: 2TB/4TB |
|||
| TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
| EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
| 5G module, with Antenna (M.2 interface) | |||
| TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
| TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
| System & Hardware | |
| BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Tiger Lake Core i3-1115G4 |
| TDP | Default 15W (BIOS fixed) |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
| Graphic | Intel Iris Xe Graphics |
| Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
| Audio | On-board Realtek ACL 897 audio controller |
| Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
| Watchdog | 0 ~ 256 seconds programmable |
| I/O interface | |
| OS | Win10, Win11, Linux, Ubuntu |
| COM | 2*RS232 (Optional 1* RS485) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps |
| Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
| USB | 6x USB3.0 |
| Display | 2x HDMI |
| LCD Display | |
| Power | 1x 2 pins, phenix terminal |
| Size/Type | 23.8” TFT LCD |
| Resolution | 1920 * 1080 (Full HD) |
| Brightness | 250 nits |
| Backlit & MTBF | LED backlit & 30 000hours |
| Display area | 527.04 * 296.46 |
| Touchscreen | |
| View Angle | Projective capacitive touchscreen |
| Type | Multi points touch, max. up to 10 points (Pcap) |
| Touch points | >100 000 000 times (PCap) |
| Durability | Glass, Mohs 6H hardness (PCap) |
| Surface hardness | Anti-fingerprint (PCap) |
| Structure | |
| Special Treatment | Anti-fingerprint (AF) |
| Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
| Mount method | Panel mount, VESA 75/100 |
| Cooling system | Large area finned heat sink |
| Overall dimension | 578.4 * 347.9 * 57.0 (mm) |
| Cut-out dimension | 568 * 338 (mm) |
| Net weight | 7.6 KG |
| Power & Environmental | |
| IP protection | Front Panel IP65 |
| Operating temp. | 0～+50℃ |
| Storage temp. | -20～+70℃ |
| Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
| Shock | 10G/Peak (11 ms) |
| Power input | DC 12V (Optional DC 9~36V) |
| Power consumption | Around 45W |
| EMC | CE/FCC Class A |
PPC-DS238-T2-CT CyberVisuell Industrial Panel PC
23.8″ Panel PC with Intel 11th-gen Tiger Lake i5-1135G7 processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $3109+GST (incl 8GB RAM + 256GB SSD)
Read more
Features:
- Widescreen 23.8” TFT LCD display, LED Backlit, Full HD 1920 *1080;
- Intel 11th Gen. Tiger Lake Core i5 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
![](ghtbox[{"urls":["https://www.esis.com.au/wp/wp-content/uploads/2024/07/PPC-DS238T.6.png":0}]":0}]){kind=link}
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
| Part no. | Description | Datasheets | Price ex-GST with 8GB/256GB |
| PPC-DS238-T2-CT | 23.8”, 1920 * 1080, Core i5-1135G7, Quad-core 4.20Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS238-T2-CT | $3,109 |
| -4G / -8G/ -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
| -256GS / -512GS | M.2 SSD: 256GB/512GB | ||
|
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB 2.5” HDD: 2TB/4TB |
|||
| TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
| EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
| 5G module, with Antenna (M.2 interface) | |||
| TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
| TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
| System & Hardware | |
| BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Tiger Lake Core Core i5-1135G7 |
| TDP | Default 15W (BIOS fixed) |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
| Graphic | Intel Iris Xe Graphics |
| Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
| Audio | On-board Realtek ACL 897 audio controller |
| Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
| Watch dog | 0 ~ 256 seconds programmable |
| I/O interface | |
| OS | Win10, Win11, Linux, Ubuntu |
| COM | 2*RS232 (Optional 1* RS485) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps |
| Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
| USB | 6x USB3.0 |
| Display | 2x HDMI |
| LCD Display | |
| Power | 1x 2 pins, phenix terminal |
| Size/Type | 23.8” TFT LCD |
| Resolution | 1920 * 1080 (Full HD) |
| Brightness | 250 nits |
| Backlit & MTBF | LED backlit & 30 000hours |
| Display area | 527.04 * 296.46 |
| Touchscreen | |
| View Angle | Projective capacitive touchscreen |
| Type | Multi points touch, max. up to 10 points (Pcap) |
| Touch points | >100 000 000 times (PCap) |
| Durability | Glass, Mohs 6H hardness (PCap) |
| Surface hardness | Anti-fingerprint (PCap) |
| Structure | |
| Special Treatment | Anti-fingerprint (AF) |
| Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
| Mount method | Panel mount, VESA 75/100 |
| Cooling system | Large area finned heat sink |
| Overall dimension | 578.4 * 347.9 * 57.0 (mm) |
| Cut-out dimension | 568 * 338 (mm) |
| Net weight | 7.6 KG |
| Power & Environmental | |
| IP protection | Front Panel IP65 |
| Operating temp. | 0～+50℃ |
| Storage temp. | -20～+70℃ |
| Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
| Shock | 10G/Peak (11 ms) |
| Power input | DC 12V (Optional DC 9~36V) |
| Power consumption | Around 45W |
| EMC | CE/FCC Class A |
PPC-DS238-T3-CT CyberVisuell Industrial Panel PC
23.8″ Panel PC with Intel 11th-gen Tiger Lake Core i7-1165G7 processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $3,508+GST (incl 8GB RAM + 256GB SSD)
Read more
Features:
- Widescreen 23.8” TFT LCD display, LED Backlit, Full HD 1920 *1080;
- Intel 11th Gen. Tiger Lake Core i7 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
| Part no. | Description | Datasheets | Price ex-GST with 8GB/256GB |
| PPC-DS238-T3-CT | 23.8”, 1920 * 1080, Core i7-1165G7, Quad-core 4.40Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS238-T3-CT | $3,508 |
| -4G / -8G/ -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
| -256GS / -512GS | M.2 SSD: 256GB/512GB | ||
|
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB 2.5” HDD: 2TB/4TB |
|||
| TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
| EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
| 5G module, with Antenna (M.2 interface) | |||
| TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
| TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
| System & Hardware | |
| BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Tiger Lake Core i7-1165G7 |
| TDP | Default 15W (BIOS fixed) |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
| Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
| Graphic | Intel Iris Xe Graphics |
| Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
| Audio | On-board Realtek ACL 897 audio controller |
| Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
| Watch dog | 0 ~ 256 seconds programmable |
| I/O interface | |
| OS | Win10, Win11, Linux, Ubuntu |
| COM | 2*RS232 (Optional 1* RS485) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps |
| Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
| USB | 6x USB3.0 |
| Display | 2x HDMI |
| LCD Display | |
| Power | 1x 2 pins, phenix terminal |
| Size/Type | 23.8” TFT LCD |
| Resolution | 1920 * 1080 (Full HD) |
| Brightness | 250 nits |
| Backlit & MTBF | LED backlit & 30 000hours |
| Display area | 527.04 * 296.46 |
| Touchscreen | |
| View Angle | Projective capacitive touchscreen |
| Type | Multi points touch, max. up to 10 points (Pcap) |
| Touch points | >100 000 000 times (PCap) |
| Durability | Glass, Mohs 6H hardness (PCap) |
| Surface hardness | Anti-fingerprint (PCap) |
| Structure | |
| Special Treatment | Anti-fingerprint (AF) |
| Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
| Mount method | Panel mount, VESA 75/100 |
| Cooling system | Large area finned heat sink |
| Overall dimension | 578.4 * 347.9 * 57.0 (mm) |
| Cut-out dimension | 568 * 338 (mm) |
| Net weight | 7.6 KG |
| Power & Environmental | |
| IP protection | Front Panel IP65 |
| Operating temp. | 0～+50℃ |
| Storage temp. | -20～+70℃ |
| Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
| Shock | 10G/Peak (11 ms) |
| Power input | DC 12V (Optional DC 9~36V) |
| Power consumption | Around 45W |
| EMC | CE/FCC Class A |
