ACR SmartReader Plus 4 Pressure/Temp/Humidity data loggers

ACR SmartReader Plus 4 Pressure/Temp/Humidity data loggers

ACR SmartReader Plus 4 data loggers are multi-channel, user configurable data loggers that monitor pressure, temperature and humidity. The alarm feature alerts when thresholds are transgressed, via phone or email (external hardware required). These loggers are accessible remotely by modem or device server; multiple loggers can also be linked to form a network. Durability is assured with a 3-year logger warranty and 10-year battery life.

When the sample interval is set longer than 8 seconds, the readings are averaged over the period giving a quantitative result. The software package and USB cable are purchased separately as they can support more than one device.

Faster logging, up to 25 samples per second, is supported using an external power source (USB cable or BP-101 Battery Pack option, see below).

Specifications common to all SmartReader Plus loggers FAQs (ACR website, opens in a new tab)

SmartReader Plus data loggers

SmartReader Plus 4, 4-channel pressure, temperature & relative humidity data logger


The SmartReader Plus 4 data logger provides easy monitoring and troubleshooting of pneumatic control systems. The unit is completely self-contained with a 1/4º quick release pressure fitting to allow a fast and trouble-free connection.
SmartReader Plus 4
Click here to show/ hide more info

SmartReader Plus 4The SmartReader Plus 4 data logger provides easy monitoring and troubleshooting of pneumatic control systems. The unit is completely self-contained with a 1/4º quick release pressure fitting to allow a fast and trouble-free connection. As an added bonus, the SmartReader Plus 4 also monitors temperature and relative humidity.

Specifications:

Calibrated Accuracy:
+/- 0.5% of full scale @ 25ºC (77ºF)

Pressure Range, Resolution and Accuracy:
+/- 10″ H20; 0.006″; +/- 2% FS @ 25ºC (77ºF)
0 to 5 psi (30 kPa); 0.003 psi (0.02 kPa); +/- 1% FS @ 25ºC (77ºF)
0 to 30 psi (200 kPa); 0.015 psi (0.10 kPa); +/- 0.5% FS @ 25ºC (77ºF)
0 to 100 psi (700 kPa); 0.05 psi (0.34 kPa); +/- 0.5% FS @ 25ºC (77ºF)

Accessories:

Part No Product Details Price (ex-GST)
EH-020A RH/Temp External Probe Remote relative humidity/temperature probe. Range: 10 to 90% RH over a -20° to 40°C $289.68

ACR ET Series Temperature Probes or any NTC thermistor probe

Data on SmartReader Plus 4 (SRP4) (pdf file, opens in new tab)

Models and Prices:

Part No Product Details Price (ex-GST)
SRP-004-5G-128K SmartReader Plus 4, 5G (One ambient temperature, one 0-5 PSI gauge, plus ext temp & RH channel), 128 KB memory $1,695.00
SRP-004-30A-128K SmartReader Plus 4, 30A (One ambient temperature, one 0-30 PSI absolute, plus ext temp & RH channel), 128KB memory $1,695.00
SRP-004-30G-128K SmartReader Plus 4, 30G (One ambient temperature, one 0-30 PSI gauge, plus ext temp & RH channel), 128KB memory $1,695.00
SRP-004-100A-128K SmartReader Plus 4, 100A (One ambient temperature, one 0-100 PSI absolute, plus ext temp & RH channel), 128KB memory $1,695.00
SRP-004-100G-128K SmartReader Plus 4, 100G (One ambient temperature, one 0-100 PSI gauge, plus ext temp & RH channel), 128KB memory $1,695.00
SRP-004-150G-128K SmartReader Plus 4, 150G (One ambient temperature, one 0-150 PSI gauge, plus ext temp & RH channel), 128KB memory $1,695.00

Prices are subject to change without notice – updated August 2020

Also required with SmartReader Plus loggers:
TR3-IC102  TrendReader software for Windows with IC-102 USB cable, see below

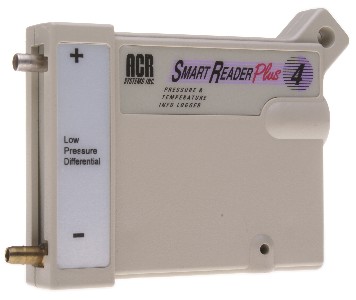

SmartReader Plus 4 – LPD, 2-channel low pressure differential data logger


The SmartReader Plus 4 LPD (Low Pressure Differential) logger is a two channel logger with internal pressure and temperature sensors. The low pressure sensor is built into the logger and is capable of measuring low gauge and differential pressure.
SmartReader Plus 4 - LPD
Click here to show/ hide more info

SmartReader Plus 4 - LPD

The SmartReader Plus 4 LPD (Low Pressure Differential) logger is a two channel logger with internal pressure and temperature sensors. The low pressure sensor is built into the logger and is capable of measuring low gauge and differential pressure.

Applications:
  • Monitoring positive air pressure in cleanrooms for critical facilities such as medical and manufacuring
  • Commissioning HVAC systems
  • Monitoring air duct velocity
  • Testing and balancing HVAC systems
  • Monitoring wind speed
Specifications:

Sensor Type:
Silicone piezoresistive strain gauge

Pressure Ranges:
+/- 125Pa (0.5inWC)
+/- 250Pa (1.0inWC)
+/- 500Pa (2.0inWC)
+/- 1.25kPa (5.0inWC)
+/- 2.5kPa (10inWC)

Maximum Pressure:
4 times full scale

Media:
Non-corrosive gases and dry air

Accuracy:
Calibrated:
+/- 0.05” for 0.5”, 1.0” and 2.0” ranges
+/- 1.0” for 5.0” and 10.0” ranges

Accuracy:
Thermal:
+/- 0.5% FS (over compensated range)

Resolution:
< 2.5Pa (0.01inWC)

Non-linearity:
+/- 0.05% FS (best fit straight line)

Hysteresis & Repeatability:
+/- 0.05% FS (typical)

Long-Term Stability:
+/- 0.5% FS

Data on SmartReader Plus 4 – LPD (SRP4-LPD) (pdf file, opens in new tab)

Part No Product Details Price (ex-GST)
SRP-004-LPD-0.5-32K SmartReader Plus 4, LPD-0.5 (One ambient temperature, one 0-0.5 inWC differential pressure sensor), 32KB memory $1,180
SRP-004-LPD-1.0-32K SmartReader Plus 4, LPD-1 (One ambient temperature, one 0-1.0 inWC differential pressure sensor), 32KB memory $1,180
SRP-004-LPD-2.0-32K SmartReader Plus 4, LPD-2 (One ambient temperature, one 0-2.0 inWC differential pressure sensor), 32KB memory $1,180
SRP-004-LPD-5.0-32K SmartReader Plus 4, LPD-5 (One ambient temperature, one 0-5.0 inWC differential pressure sensor), 32KB memory $1,180
SRP-004-LPD-10.0-32K SmartReader Plus 4, LPD-10 (One ambient temperature, one 0-10.0 inWC differential pressure sensor), 32KB memory $1,180

Prices are subject to change without notice – updated August 2020

Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows, with IC-102 USB cable, see below

Software: TrendReader for Windows

TrendReader

TrendReader® 3 is a powerful, versatile and easy-to-use software application for all versions of windows, designed exclusively for ACR’s SmartReader Plus, SmartReader, IAQ, OWL, TRH, JR and Nautilus data loggers.

Powerful features and easy setup enables collected data to be thoroughly analyzed in seconds.

TrendReader Software details includes download trial (ACR site, opens in new tab)

Data Sheet on TrendReader 2 Rev 6, 7/11/2012 (pdf, opens in a new tab)

Data collected in ACR Data Loggers is downloaded using the USB port of a computer, using the bundled IC-102 USB cable.

TrendReader Software features:

  • Simple logger setup window
  • Compound multiple graphs to a resultant graph
  • Export data to most spreadsheet formats
  • Interface with remote loggers via modem
  • Multi-graph display
  • Zoom
  • Scale units
  • Add comments
  • Data table view

Updates: TrendReader updates are available free of charge to existing users at the ACR website – downloads.

The USB cable has a minijack plug on one end for the SmartReader Plus logger, and a USB plug on the other end for the PC.

Part No Product Details Price (ex-GST)
TR3-IC102 TrendReader3 software package for PC, including IC-102 USB interface cable for SRP loggers $295

An RS-232 Serial logger cable is also available, for connecting SRP loggers to serial device servers etc:

Part No Product Details Price (ex-GST)
IC-101  RS-232 9-pin PC serial port to logger interface cable, for SmartReader Plus loggers $195

For connecting SmartReader Plus loggers directly to modems, a different serial cable is available:

Part No Product Details Price (ex-GST)
IC-101RFA DE9M connector w/built in Null Modem for connection to DCE (RF/Cellular Modem), c/w 30cm M-M Stereo Cable $195

Prices are subject to change without notice – updated August 2020

BP-101 Battery Pack

Fast Sampling Battery Pack 101

SmartReader Plus Data Loggers require the BP-101 Battery pack to log at rates faster than once every 8 seconds. A male stereo jack and cable plugs directly into the communication port on the logger. Uses 4 AAA batteries (included) and are user replaceable.

Size: 80 x 55 x 40 cm (3.25 x 2 x 1.5 inches)

Portable power supply for SmartReader Plus data loggers to allow them to sample faster than 8 seconds.

Part No Product Details Price (ex-GST)
BP-101 Battery Pack, Fast Sampling – BP101, Portable power supply for SmartReader Plus data loggers to allow them to sample faster than 8 seconds. $105

Prices are subject to change without notice – updated August 2020
