DaqLink 4-Universal Input Data Loggers - Fourtec

Stand-alone loggers measuring up to 6 channels including built in Temp and Humidity
Home » Measurement/Logging Products » Data Loggers » Temperature / Humidity Loggers » DaqLink 4-Universal Input Data Loggers – Fourtec

DaqLink has been discontinued

Please contact us for alternatives

Fourtec DaqLink Loggers Overview

FDA 21 CFR PART 11 Compliant

  • Up to 6 measuring inputs with 16-bit resolution
  • Real-time data streaming via USB to PC, or cyclic storage to onboard memory
  • Onsite stand alone data monitoring with two-row LCD
  • Keypad with Run/Pause logging option
  • Four level alarm configuration with email/SMS notification
  • Onboard alarm buzzer and LCD indication
  • Long-lasting rechargeable battery for standalone monitoring
  • Supported by easy to use, fully featured DataSuite software for data analysis, device setup, and online monitoring
  • Excellent documentation (check it out below!)
On this page:
Other related pages:
The DaqLink product line consists of stand-alone data loggers with USB interface, offering rich functionality in a compact size. With built-in temperature and humidity sensors, plus four external inputs each capable of measuring voltage, current, temperature, pulse and frequency, the DaqLink provides a cost-effective and accurate data logging solution for a variety of industrial applications. For continuous indoor or outdoor monitoring, the DaqLink data logger is the tool of choice.

DaqLink Brochure (pdf file, opens in new tab)

Daqlink Devices

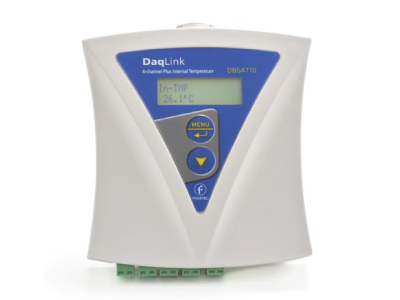

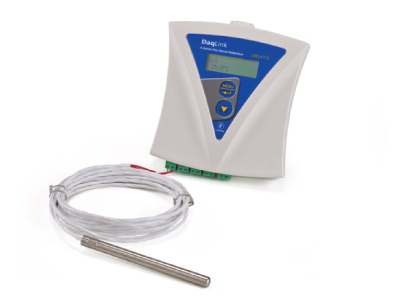

DBSA710A – DaqLink Temperature Logger

Daqlink Temp Data Logger with 4 Universal Inputs, USB connection.
DBSA710A - DaqLink Temperature Logger
Click here to show/ hide more info

DBSA710A - DaqLink Temperature Logger

The DaqLink Temp logger is a stand-alone device with USB interface, offering rich functionality in a compact size. With a built-in temperature sensor plus four external inputs each capable of measuring voltage, current, temperature, pulse and frequency, the DaqLink Temp provides a cost-effective and accurate data logging solution. For continuous indoor or outdoor monitoring, the DaqLink is the tool of choice.

Key product Benefits:

  • Up to 5 measuring inputs with 16-bit resolution
  • Real-time data streaming via USB to PC or cyclic storage to onboard memory
  • Onsite data monitoring with two-row LCD
  • Keypad with Run/Pause logging option
  • Four level alarm configuration with email/SMS notification and onboard alarm buzzer
  • Long-lasting rechargeable battery for standalone monitoring
  • Supported by DataSuite software for data analysis and device setup

Specifications:

INPUT TYPES
4 to 20 mA
  • Range: 4 to 20 mA
  • Resolution: 47.6 μA
  • Accuracy: ±0.5 %
  • Loop impedance: 21 Ω
0 to 50 mV


  • Range: 0 to 50 mV
  • Resolution: 37 μV
  • Accuracy: ±0.5 %
  • Input impedance: 25 MΩ
  • Max voltage: 3.2 V
0 to 1 V


  • Range: 0 to 1 V
  • Resolution: 200 μV
  • Accuracy: ±0.5 %
  • Input impedance: 25 MΩ
  • Max voltage: 3.2 V
Temperature PT-100 (2-wires)


  • Range: -200 to 400 ˚C
  • Resolution: 0.1 ˚C
  • Accuracy:
    • -200 to -60 ˚C: ±0.5 %
    • -60 to 60 ˚C: ±0.3 ˚C
    • 60 to 400 ˚C: ±0.5 %
Temperature Thermocouple J


  • Range: -200 to 1,000 ˚C
  • Resolution: 0.1 ˚C
  • Accuracy:
    • -200 to -60 ˚C: ±0.5 %
    • -60 to 60 ˚C: ±0.5 ˚C
    • 60 to 1,000 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ºC
Temperature Thermocouple K


  • Range: -200 to 1,000 ºC
  • Resolution: 0.1 ˚C
  • Accuracy:
    • -200 to -60 ˚C: ±0.5 %
    • -60 to 60 ˚C: ±0.5 ˚C
    • 60 to 1,000 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ˚C
Temperature Thermocouple T


  • Range: -200 to 400 ˚C
  • Resolution: 0.1 ˚C
  • Accuracy:
    • -200 to -60 ˚C: ±0.5 %
    • -60 to 60 ˚C: ±0.5 ˚C
    • 60 to 400 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ˚C
Frequency (input 4 only)
  • Range: 20 Hz to 4 KHz
  • Input signal: 0 to 5 V
  • Input impedance: 470 Ω
Pulse Counter (input 4 only)


  • Range: 1 to 65,536 counts
  • Resolution: 1 count
  • Frequency range: 0 to 4,000 Hz
  • Input signal: 0 to 3.2 V
  • Input impedance: 470 Ω
Contact
  • Range: Open/Closed
Internal Temperature


  • Range: -20 to 50 ˚C
  • Accuracy: ±0.3 ˚C
  • Resolution: 0.1 ˚C
OUTPUTS
External Power Excitation (transducers usage)
  • 12 VDC @ 300 mA
  • Reset fuse overload protection
Dry Contact Alarm Output


  • Open collector
  • Close position resistance: 50 Ω
  • Max. Load: 50 mA, 3 V DC
LOGGER SAMPLING FEATURES

  • Memory capacity: ~59,000 samples (depending on logger configuration)
  • Sampling rate: One every second to one every 18 hours
  • Channel separation: 80 dB
HARDWARE SPECIFICATIONS
Display


  • 2-row LCD
  • 16 character display
Memory Modes


  • Cyclic/Non-cyclic
  • Push to Run
  • Pause logging
Power Supply


  • Internal rechargeable 4.8 V, 800 mAh NiMH battery
  • External 12 V DC input @ 300 mA 3.6 VA
  • Battery Life: Up to 10 months, depending on logger configuration
Operating Temperature Range
  • -20 to 50 ˚C
PC Communication
  • USB 2.0 compliance
  • Mini USB type B cable
Casing


  • Plastic PC-ABS
  • Dimensions: 104 x 93 x 27 mm
  • Weight: 153 g
  • Supports table and wall mounting
Man Machine Interface
  • Two-button keypad operation
Standards Compliance
  • CE, FCC, IC Canada
  • Water and dust proof: IP54

Solutions:

  • Food
  • Heavy Industry Productions
  • Laboratories
  • Pharmaceutical
  • Warehouses Storage

DataSuite for DaqLink user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

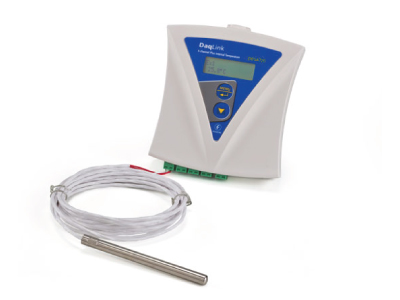

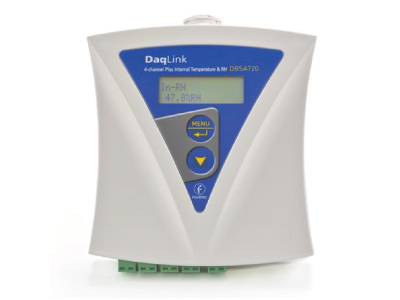

DBSA720A – DaqLink Temperature and Humidity Logger

Daqlink Temp/RH Data Logger with 4 universal inputs, USB connection.
DBSA720A - DaqLink Temperature and Humidity Logger
Click here to show/ hide more info

DBSA720A - DaqLink Temperature and Humidity Logger

The DaqLink Temp/RH logger is a stand-alone device with USB interface, offering rich functionality in a compact size. With built-in temperature and humidity sensors plus four external inputs each capable of measuring voltage, current, temperature, pulse and frequency, the DaqLink Temp/RH provides a cost-effective and accurate data logging solution. For continuous indoor or outdoor monitoring, the DaqLink is the tool of choice.

Key product Benefits:

  • Up to 6 measuring inputs with 16-bit resolution
  • Real-time data streaming via USB to PC or cyclic storage to onboard memory
  • Onsite data monitoring with two-row LCD
  • Keypad with Run/Pause logging option
  • Four level alarm configuration with email/SMS notification and onboard alarm buzzer
  • Long-lasting rechargeable battery for standalone monitoring
  • Supported by DataSuite software for data analysis and device setup

Specifications:

INPUT TYPES
4-20 mA


  • Range: 4 to 20 mA
  • Resolution: 47.6 μA
  • Accuracy: ±0.5 %
  • Loop impedance: 21 Ω
0 to 50 mV


  • Range: 0 to 50 mV
  • Resolution: 37 μV
  • Accuracy: ±0.5 %
  • Input impedance: 25 MΩ
  • Max voltage: 3.2 V
0 to 1 V


  • Range: 0 to 1 V
  • Resolution: 200 μV
  • Accuracy: ±0.5 %
  • Input impedance: 25 MΩ
  • Max voltage: 3.2 V
Temperature PT-100 (2-wires)


  • Range: -200 to 400 ˚C
  • Resolution: 0.1 ˚C
  • Accuracy:
    -200 to -60 ˚C: ±0.5 %
    -60 to 60 ˚C: ±0.3 ˚C
    60 to 400 ˚C: ±0.5 %
Temperature Thermocouple J


  • Range: -200 to 1,000 ˚C
  • Resolution: 0.1 ˚CAccuracy:
    -200 to -60 ˚C: ±0.5 %
    -60 to 60 ˚C: ±0.5 ˚C
    60 to 1,000 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ºC
Temperature Thermocouple K


  • Range: -200 to 1,000 ºC
  • Resolution: 0.1 ˚C
  • Accuracy:
    -200 to -60 ˚C: ±0.5 %
    -60 to 60 ˚C: ±0.5 ˚C
    60 to 1,000 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ˚C
Temperature Thermocouple T


  • Range: -200 to 400 ˚C
  • Resolution: 0.1 ˚C
  • Accuracy:
    -200 to -60 ˚C: ±0.5 %
    -60 to 60 ˚C: ±0.5 ˚C
    60 to 400 ˚C: ±0.5 %
  • Cold junction compensation error: ±0.3 ˚C
Frequency (input 4 only)


  • Range: 20 Hz to 4 KHz
  • Input signal: 0 to 5 V
  • Input impedance: 470 Ω
Pulse Counter (input 4 only)


  • Range: 1 to 65,536 counts
  • Resolution: 1 count
  • Frequency range: 0 to 4,000 Hz
  • Input signal: 0 to 3.2 V
  • Input impedance: 470 Ω
Contact
  • Range: Open/Closed
Internal Temperature


  • Range: -20 to 50 ˚C
  • Accuracy: ±0.5 ˚C
  • Resolution: 0.1 ˚C
Internal Humidity


  • Range: 5 to 95 % RH
  • Accuracy: ±3 % at 10 to 90 % RH
    ±5 % at 5 to 10 % RH and 90 to 95 % RH
  • Resolution: 0.5 % RH
OUTPUTS
External Power Excitation (transducers usage)
  • 12 VDC @ 300 mA
  • Reset fuse overload protection
Dry Contact Alarm Output


  • Open collector
  • Close position resistance: 50 Ω
  • Max. Load: 50 mA, 3 V DC
LOGGER SAMPLING FEATURES

  • Memory capacity: ~59,000 samples (depending on logger configuration)
  • Sampling rate: One every second to one every 18 hours
  • Channel separation: 80 dB
HARDWARE SPECIFICATIONS
Display
  • 2-row LCD
  • 16 character display
Memory Modes


  • Cyclic/Non-cyclic
  • Push to Run
  • Pause logging
Power Supply


  • Internal rechargeable 4.8 V, 800 mAh NiMH battery
  • External 12 V DC input @ 300 mA 3.6 VA
  • Battery Life: Up to 10 months, depending on logger configuration
Operating Temperature Range



 -20 to 50 ˚C
PC Communication


  • USB 2.0 compliance
  • Mini USB type B cable
Casing


  • Plastic PC-ABS
  • Dimensions: 104 x 93 x 27 mm
  • Weight: 153 g
  • Supports table and wall mounting
Man Machine Interface Two-button keypad operation
Standards Compliance
  • CE, FCC, IC Canada
  • Water and dust proof: IP54

Solutions:

  • Food
  • Heavy Industry Productions
  • Laboratories
  • Pharmaceutical
  • Warehouses Storage

DataSuite for DaqLink user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

Accessories and Software

Software

DataSuite-DQL – DataSuite Software for DaqLink

DataSuite is Windows-based software offering device configuration, data monitoring and analysis functionality for the DaqLink data acquisition system, in addition to other Fourtec systems.
DataSuite Software for DataNet
Click here to show/ hide more info

DataSuite Software for DataNet

The DataSuite platform’s core functionality is shared across all systems and includes features such as device setup, multiple data views, input calibration, alarm level definition, Email/SMS notifications, data report management, device firmware updates, online software updates and more.

Easily installed from CD or via download from the Fourtec website, DataSuite also supports automatic online updates whenever a new software version is released.

When integrated with the DatPass CFR Admin software, DataSuite helps DaqLink users meet 21 CFR Part 11 compliancy by maintaining an audit trail of all user activity in addition to management of user login and privileges and electronic signatures.

Key DataSuite Benefits:

  • Multiple data view e.g. graph, table, statistics
  • Online and historical data views
  • Multiple alarm levels triggering email and SMS notifications
  • Reporting module for creating and generating reports with selected email distribution
  • Analysis features including dew point analysis, export to Excel and CSV formats, histogram, MKT
  • FDA Title 21 CFR Part 11 compliancy
  • API support for third-party integration

Specifications:

Product Part Number: DataSuite-DQL
Software Activation: User must activate software using unique serial number purchased from Fourtec. 30-day trial period also available.
Order shipped with: Software CD and mini-USB communication cable
System Requirements
Software
  • Windows XP SP3, Windows Vista, Windows 7 (32-bit and 64-bit), Windows 8.1 (32-bit and 64-bit)
  • Minimum screen resolution: 1024 x 768 (800 x 600 not supported)
Hardware
  • Pentium 4, 2.0 GHz or better
  • 512 MB RAM
  • 250 MB available disk space for the DataSuite application


DataSuite for DaqLink user guide (pdf file, opens in new tab)
DataSuite Installation and Activation Guide (pdf file, opens in new tab)
DataSuite Software Release Notes (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

DS-CFR-DQL – DatPass CFR Admin Software for DaqLink

DatPass is Fourtec’s administration management software, integrating with the DataSuite and MicroLab applications to help achieve FDA 21 CFR Part 11 and GAMP 5 compliancy for a range of Fourtec data logging systems, including the DaqLink.
DS-CFR-DN - DatPass CFR Admin Software for DataNet
Click here to show/ hide more info

DS-CFR-DN - DatPass CFR Admin Software for DataNet

The DatPass database, installed on a local PC or network, maintains an audit trail that automatically records all user activity within DatPass and DataSuite software, including date and time stamp, login details, input alarms details, and so on. The DatPass administrator can view the audit trail on screen or print any part of it in order to keep hard copy records.

DatPass is also used to manage all user access to the supported systems, including user login parameters, group and user privileges for relevant software functionality, digital signatures the users are permitted to sign data within electronic records, and other key CFR requirements.

The DatPass software package is also supplied with extensive operation and validation manuals to help users meet strict industry regulations.

Specifications:

Product Part Number: DS-CFR-DQL
Software Activation: User must activate software using unique serial number purchased from Fourtec. 30-day trial period also available.
Order shipped with: Software CD for DatPass and DataSuite installation, and mini-USB communication cable
System Requirements
  • Windows XP SP3, Vista, 7 (32 and 64-bit)
  • Pentium 4 2.0 GHz or better
  • 512 MB RAM
  • 250 MB available disk space



DatPass CFR Admin User Guide (pdf file, opens in new tab)
DatPass Software Release Notes (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

Accessories

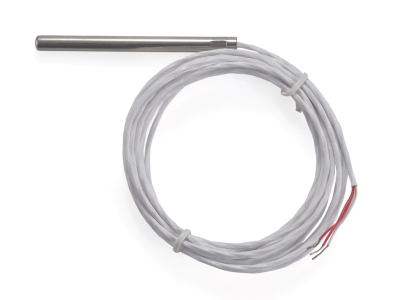

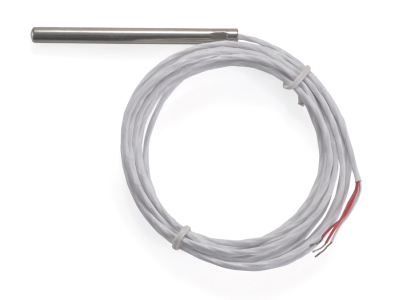

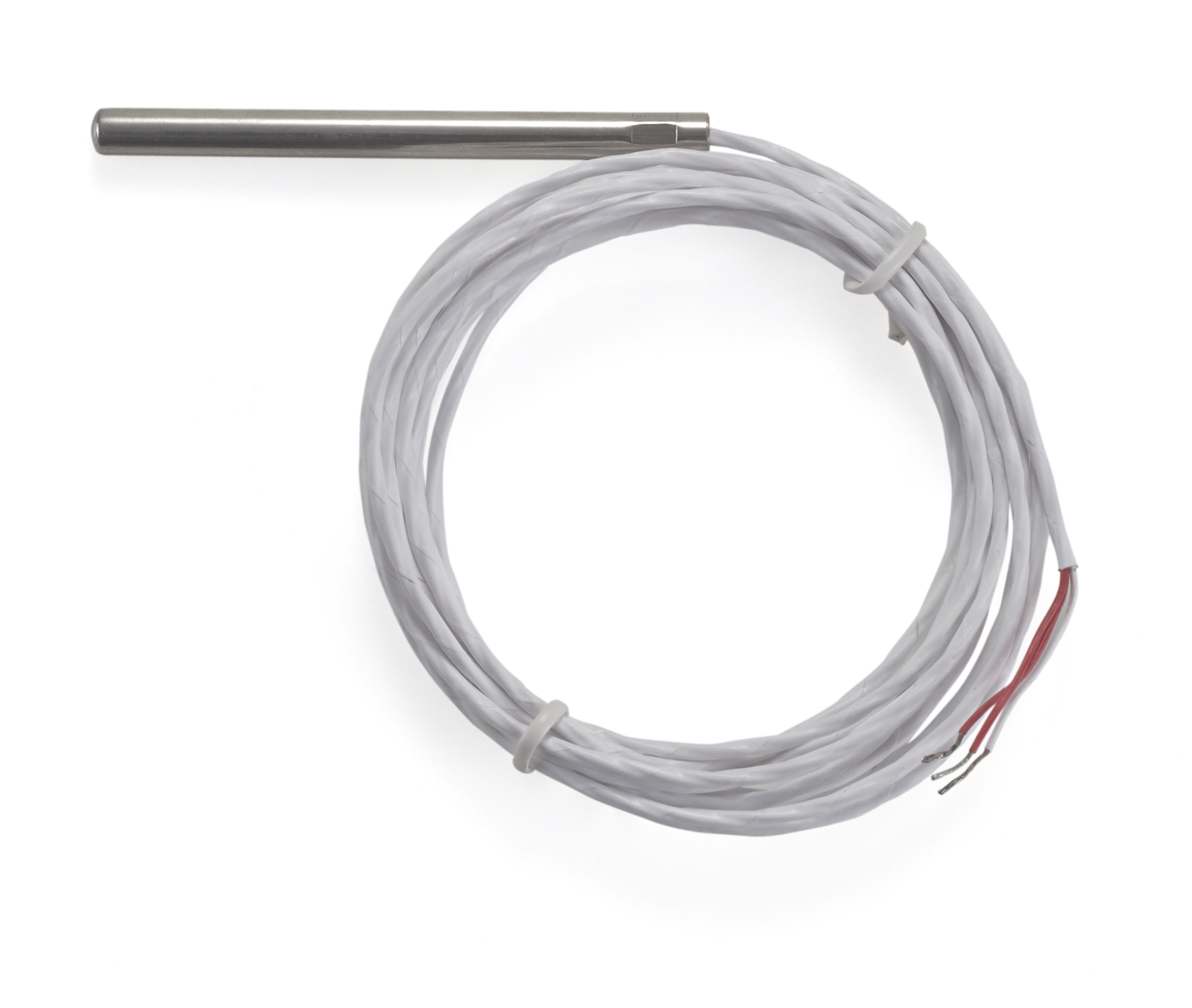

12751 – PT-100 Temperature Probe (2-wire), 6 m cable

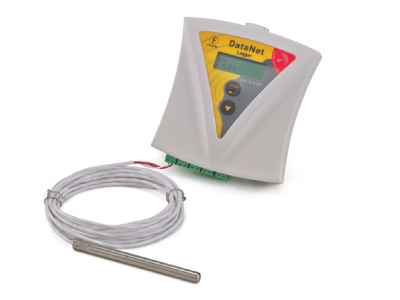

Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  6 meter Teflon cable (cable rating -65 to 200C).
PT-100 Temperature Probe (2-wire), 6 m cable
Click here to show/ hide more info

PT-100 Temperature Probe (2-wire), 6 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 6 m
Cable operating temperature: -65 to 200 ˚C

12752 – PT-100 Temperature Probe (2-wire), 4 m cable

Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  4 meter Teflon cable (cable rating -65 to 200C).
PT-100 Temperature Probe (2-wire), 4 m cable
Click here to show/ hide more info

PT-100 Temperature Probe (2-wire), 4 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 4 m
Cable operating temperature: -65 to 200 ˚C

12753 – PT-100 Temperature Probe (2-wire), 2.5 m cable

Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  2.5 meter Teflon cable (cable rating -65 to 200C)
12753 - PT-100 Temperature Probe (2-wire), 2.5 m cable
Click here to show/ hide more info

12753 - PT-100 Temperature Probe (2-wire), 2.5 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 2.5 m
Cable operating temperature: -65 to 200 ˚C

50116 – PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable

Temperature Sensor, PT-100, stainless steel 80mm probe,-200 to 400 deg C,  2.5 meter Teflon cable (cable rating -65 to 200C)
50116 - PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable
Click here to show/ hide more info

50116 - PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable

The PT-100 Cryogenic temperature probe provides accurate, stable readings with fast response time over a range of -200 to 400 °C, and is therefore well suited to extreme low temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -200 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 2.5 m
Cable operating temperature: -65 to 200 ˚C

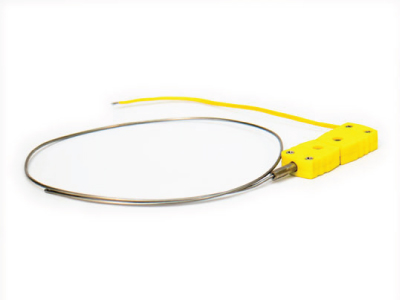

50165 – Thermocouple Type K Probe with Flat Pin Connector

Temperature Sensor, Thermocouple K type, -200 to 1000 deg C, 1.5 mm probe diam, 500mm cable length
50165 - Thermocouple Type K Probe with Flat Pin Connector
Click here to show/ hide more info

50165 - Thermocouple Type K Probe with Flat Pin Connector

The Thermocouple Type K probe is a highly accurate, reliable probe for both extreme low and high temperature applications. A flat pin connector is used for easy interface between probe and connecting wires. The Thermocouple probe is compatible with Fourtec’s DaqPRO, DaqLink and DataNet range of data loggers.

Specifications:

Temperature range: -200 to 1000 °C
Flat pin connector
Probe length: 500 mmm
Probe diameter: 1.5 mm

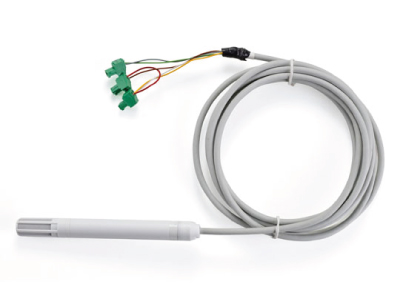

DT043 – High Accuracy External Temperature and Humidity Probe

Humidity and Temperature Probe, RH 0-100% ±1.5%, temp -40 to 60°C ±0.5°C, 3m cable, suits DataNet/DaqLink universal input loggers.
DT043 - High Accuracy External Temperature and Humidity Probe
Click here to show/ hide more info

DT043 - High Accuracy External Temperature and Humidity Probe

The DT043 is a highly accurate temperature and humidity probe. It measures relative humidity ranging from 0 to 100% with an error of not more than ± 1.5% RH over the entire range. The DT043 includes, in its screw-on cap, a temperature sensing element that measures temperatures ranging from ‑50 to 100 °C.

The DT043 probe is compatible with Fourtec’s DaqPRO, DaqLink and DataNet range of data loggers.

Specifications:

Operating Range: 0…100% RH / -50…100 °C
Measurement Range: 0…100% RH / -50…100 °C
Outputs (factory default): 0…1 V = 0…100% RH / -40…60 °C
Start-up Time: 2 s
Measurement Interval: 1 s
Supply voltage & Load: 6…24 VDC / 5…16 VAC / >1 kOhm
Accuracy at 23 °C: ± 1.5% rH / ± 0.5 °C
Protection rating: IP65 (except sensor/filter area)
Cable length: 3 m
Wire Colors:                  Description:
Green Power +VDC
Gray GND (digital and power)
White Analogue signal % RH / Humidity
Brown Analogue signal °C  / Temperature
Yellow AGND (analogue ground)
Shield Not connected on probe side

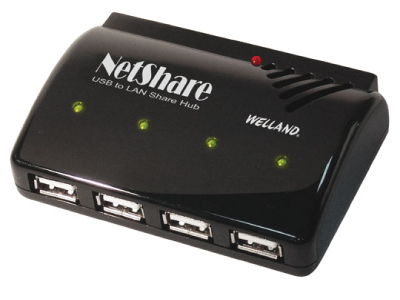

13750 – USB over IP Ethernet Adapter for Remote Device Connection

USB over IP shareserver-4 ports USB2.0 Ethernet.
13750 - USB over IP Ethernet Adapter for Remote Device Connection
Click here to show/ hide more info

13750 - USB over IP Ethernet Adapter for Remote Device Connection

The 4-port USB over IP Ethernet Adapter provides the capability for remotely connecting to any Fourtec USB-supported device over a LAN connection. For example, if you need to monitor the DataNet wireless system remotely and not from an onsite PC, simply connect the DataNet Receiver to the USB over IP device, and as long as you are on the same LAN, launching the DataSuite software will automatically detect the DataNet network as if you were connected to the Receiver directly via the USB cable. You will then be able to monitor the entire system as normal.

Specifications:

Windows® XP x86 / XP 64-bit
Windows® Vista/7 X86 / Vista/7 64-bit
Windows® 2000
233 MHz Pentium® II or above
64 MB RAM (128 MB recommended)
CD-ROM drive for installation
Call Now Button
Save 10% on CyberVisuell PC and Keyboard Bundle
Learn more
Save 10% on CyberVisuell PC and Keyboard Bundle
