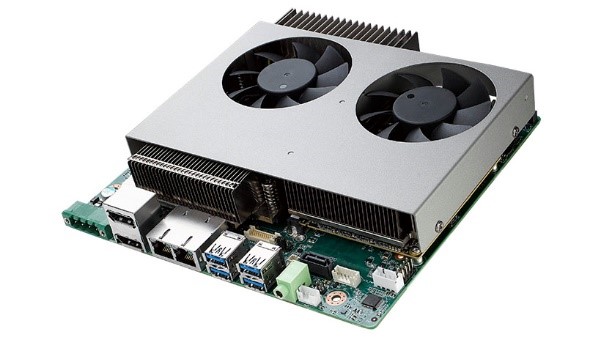

Advantech’s AIMB-288E industrial motherboard aims to accelerate Edge AI deployment and development. A 12th Gen Intel® Core™ Desktop Processor and NVIDIA Quadro T1000 GPU definitely help in this endeavour! AIMB-288E leverages an ultra-slender design to deliver outstanding computing power and superior graphics performance to visual computing in edge intelligence. It supports three independent displays (2 x DisplayPort & 1 x eDP with up to 4K resolution) to present precise visualisation during diverse inspection tasks. In addition, AIMB-288E benefits from Advantech’s strict design process, thermal technology and IEC-60068-2 compliance — attributes that ensure stability during long-term operation. This combination of features and capabilities make AIMB-288E an excellent choice for AI development and deployment in applications requiring a compact, slim form factor design.
Powerful 12th Gen Intel® Core™ and NVIDIA CUDA Core computing
The AIMB-288E utilises a 12th Gen Intel® Core™ Desktop Processor and NVIDIA Quadro T1000 GPU (MXM module type) with 896 CUDA Cores and 4GB GDDR6 to deliver 2.5Tflops single-precision performance. By using 3Dmark Time SPY, AIMB-288E delivers a 5.2 fold increase in 3D graphics performance as comparable native GPU graphics solutions. This module is capable of handling graphics processing demands in high-end medical imaging where it improves quality of care.
AIMB-288E’s GPU produces better image processing results while enabling the CPU to focus on data processing. This solution makes the power provided by the CPU, the i3-12100E (quad cores with 4.3GHz turbo capability), more than sufficient for most applications. The single thread rating and DDR5 4800 memory produce a 1.36 fold increase in performance when compared to 10th Gen Intel® Core™ i7 processors. As a result, AIMB-288E is able to consolidate workloads by using the ISA between CPU and GPU.
All-in-one motherboard with 1U form-factor eases integration
AIMB-288E integrates the CPU, GPU, memory, NVMe SSD and cooling system within a 42 mm form factor that saves 66% more space than comparable generic motherboards, and eases integration. Leveraging Advantech’s ultra-slim cooling system enables AIMB-288E to fit within 1U systems while yielding 100% performance in 55 °C (131 °F) environments. This design could deliver out-of-the-box AI deployment inference that decreases developers’ workloads, associated costs and overall time to market.
Embedded software empowers Edge AI management
In an effort to boost AI deployment and machine learning development, the Advantech AIMB-288E supports Windows and/or Linux Ubuntu OS to empower diverse AI development. Equipped with M.2 B Key expansion for 4G wireless connectivity and through utilisation of WISE-DeviceOn, this solution supports remote management capabilities — including device health status monitoring, real-time control (e.g. power on/off), troubleshooting and over-the-air (OTA) software/firmware upgrades. This combination hardware and software makes AIMB-288E an ideal choice for AI, machine learning and edge intelligence applications.
Highlighted Features:
- 12th Gen Intel® Core™ Desktop Processors, i3-12100 (4x Core, TDP 60W)
- Integrated NVIDIA® Quadro® Embedded T1000
- 32GB DDR5 4800MHz SODIMM
- 3 x displays with 2 x DP and 1 x eDP — up to 4K
- Expansion support: M.2 M key, M.2 B key, 4 x USB 3.2 Gen 2, & 2 x USB 3.2 Gen 1
- Embedded OS: Windows 10, Linux Ubuntu and WISE-DeviceOn
