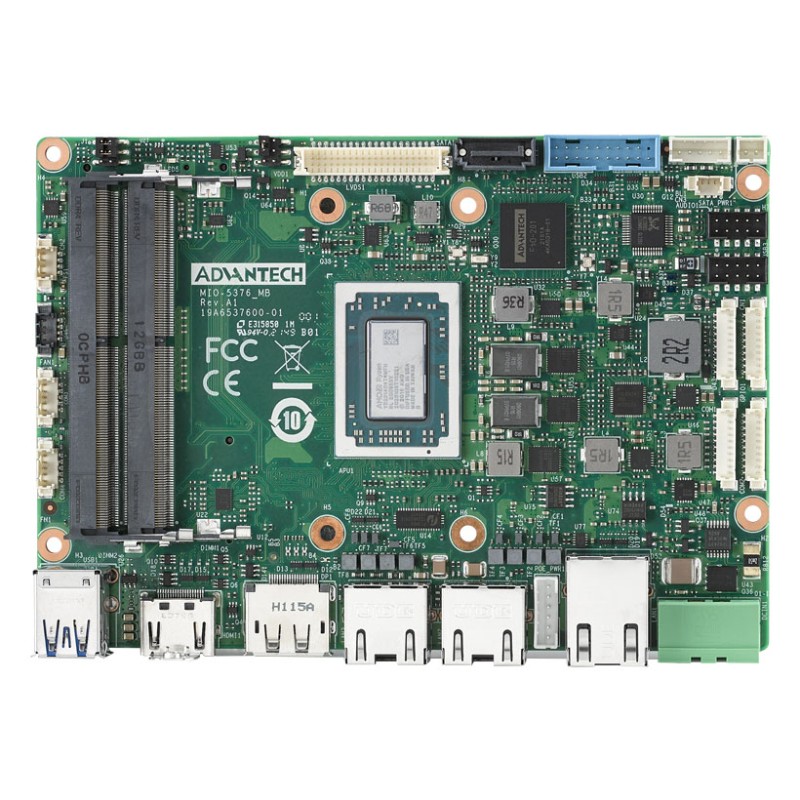

Advantech’s 3.5″ MIO-5376 single-board computers (SBC) deliver computing and graphics versatility and expansive I/O for electric vehicle charging stations, with help from AMD Ryzen™ Embedded R2000 processors.
Electric vehicles (EVs) are growing in popularity, with government mandates and tax incentives helping accelerate adoption. This means fast and efficient vehicle battery charging stations are essential.
Rich connectivity, built for charging stations
Designed specifically for use in EV charging stations, the MIO series of 3.5” SBCs are ruggedised for reliable operation in harsh roadside and industrial environments and provide comprehensive industrial buses and protocol support for integrating additional devices.
This is important because an EV charging station system typically integrates multiple subsystems, each using different control buses by domain preference. These subsystems can be designed to connect with voltage meters, battery control logic, external management and payment systems – and HMI displays, just like you’d find at a petrol station.
Advantech’s MIO-5376 SBCs – built on AMD Ryzen™ Embedded R2000 Series processors – make it easy for system integrators to design EV chargers. Leveraging up to four “Zen+” x86 integrated CPU cores with onboard Radeon™ graphics, AMD Ryzen™ Embedded R2000 processors are ideally suited to meet the computing and graphics needs of next-generation EV charger system integrators.
Small and scalable
The MIO-5376 SBCs integrate three ports of 2.5GbE (including two optional PoE ports), CANBus, high-speed UARTs (4X), and an I2C bus to help system integrators streamline EV charger designs to reduce complexity and cost. The MIO-5376 SBCs implement the PoE function by adding one small MIOe-PSE module. The existing Ethernet ports can support up to two 15.4W connections for each port, which can deliver power and data for PoE devices, such as IP cameras. This feature simplifies deployment by using only one single cable, which can reduce cabling space and installation costs. The MIO-5376 provides for state-of-the-art network expansion M.2 E-key and B-key ports to support 5G and WiFi, and an expansion slot on M.2 2280 for PCIe Gen3x4, SATA SSD storage.
The plug and play connectivity enabled by the MIO-5376 SBCs helps ensure subsystems can be swapped in/out of EV charging systems with ease, flexibly accommodating modules to simplify repair/maintenance as well as future upgrades.
Flexible graphics and power profiles
A single, small-footprint AMD Ryzen™ Embedded R2000 processor can power up to four independent displays in crisp 4K resolution leveraging DisplayPort™ 1.4, HDMI™ 2.0b, or eDP 1.3 interfaces, each supporting up to 4K60 resolution. AMD Ryzen Embedded R2000 processors can help enable flexible display and HMI configurations in space and thermally constrained environments – a crucial consideration for densely clustered metro settings, particularly in hot climates.
The AMD Ryzen Embedded R2000 processors on-board the MIO-5376 SBCs are available in 15W or 25W options, to meet a diverse range of power and performance requirements. The 15W version is designed for fanless system designs and optimised for reliability and ruggedness. The 25W version is available with an efficient slim-line cooler for EV charging systems needing an additional performance boost.
Power efficiency is paramount at every layer of the EV charging infrastructure, from processor to pump. The system modularity enabled with SBC solutions like Advantech’s MIO-5376 is critical for streamlining design complexity and costs, helping to ensure that EV charging stations can be economically deployed and serviced at the massive scale needed to support next-generation EV fleets.
