Esis is excited to announce the arrival of Advantech’s UNO-238 V2, a compact fanless box PC with high performance 12th Gen Intel processors. Combining a high performance processor with an extra small form factor and fanless design, this amazing little industrial PC is versatile enough for a variety of applications, including in vehicles, AGVs, control rooms and remote plants and equipment.
The UNO-200 series of Industrial IoT edge computers is designed for IT-level applications. The UNO-238 V2, in particular, stands out with its compact form factor and high computing performance. Powered by the latest Intel® Core™ processors (12th Gen) and supporting DDR5, it offers diverse I/O interfaces and multiple M.2 expansion slots for wireless communication and data transmission.
It features embedded CANbus for vehicle communication and supports USB type-C for multi-display applications. With these capabilities, the UNO-238 V2 delivers optimal efficiency and superior edge computing in a compact yet powerful package.

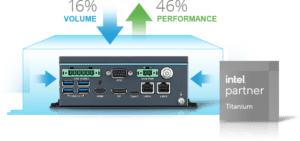

- Intel® Core™ processors (12th Gen) deliver 46% increased performance compared to the previous model.
- Compact design (150 x 106 x 60 mm) is 16% smaller than other UNO products with Intel® Core™ processors.
- Dual wireless connectivity supports WiFi and LTE cellular modules.
- Multiple displays supported with HDMI, DP and USB-C connectors.
- Reliable communication with multiple LAN, USB, serial and CANbus.

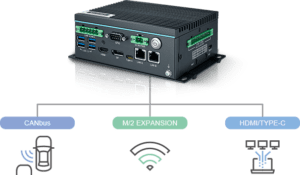

Efficient real-time communication
Efficient real-time communicationThe integrated CANbus offers efficient real-time communication, delivering:
- Cost benefit: One cable for ECU communication.
- Stability: Less interference in long-distance data transmission.
- High flexibility: No HW/SW adjustment in network domain.
- Efficiency: Identification code to determine order of message transmission.
- Centralised detection: One device to perform error diagnosis on all devices.
Target applications for the series
- Mobile control system for AGV/AMR
The UNO-238 Series serves as the core processor for AGV and AMR systems, interfacing with navigators, controllers, sensors, and steppers. It enables precise movement and contour-based navigation, also enhancing the efficiency and autonomy of AGV and AMR technologies.
- Control room PC with multiple displays
The UNO-238 Series supports three or more high resolution display connections via HDMI, DisplayPort and USB-C ports. When combined with the ThinManager BIOS, this enables display of multiple sessions from various sources. The device’s elevated data security standards ensures enhanced efficiency and protection for control room operations.
Available models in the series
UNO-238 Industrial IoT Edge Gateway
- Intel® Core™ processors (8th Gen).
- 2 x GbE , 4 x USB3.2, 2 x RS 232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8-bit).
- Can be expanded to facilitate wireless communication.
- Threaded DC jack for reliable power supply.
- Optimised mechanical design for easy RAM swapping.

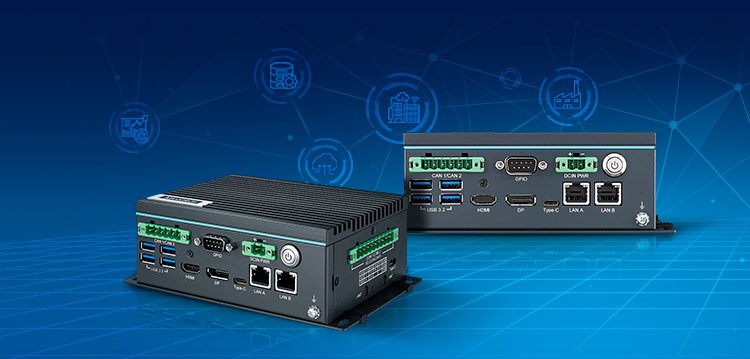

UNO-238 V2 Industrial IoT Edge Gateway
- Intel® Core™ processors (12th Gen) up to 10 Cores.
- Dual Channel DDR5-4800 up to 64GB.
- M.2 E-Key, B-Key, M-Key (support NVMe) expansion for storage/wireless.
- CANBus for reliable communication.
- DC-in terminal block for wiring flexibility.
Contact Esis now to discuss your requirements and take advantage of the very latest technology in industrial computing!
