Esis introduces ADLINK’s new MVP-6010/6020 Series, adding to the MVP family of value-priced and high performance fanless embedded computers. The MVP-6010/6020 Series, with four expansion slots, surpasses expectations for conventional industrial PCs, providing a perfect balance between features and performance in a compact size, all at an exceptionally cost-effective price point.

In addition, 6th generation Intel® Core™ processors allow the MVP-6010/6020 Series to deliver superior computing performance, increased up to 30% over the previous generation of Intel® Core™ processors. With ADLINK’s proven fanless construction, the MVP-6010/6020 Series of fanless computers can sustain 65W TDP, overcoming the challenges of harsh environments and delivering invaluable benefits to any industrial automation operation.

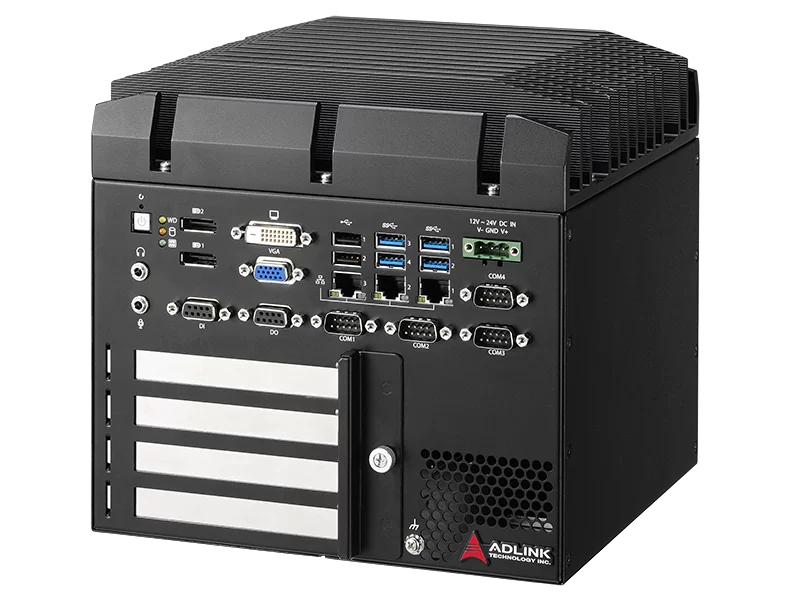

Fanless Computers

Photo courtesy of ADLINK

“With four PCI/PCIe expansion slots to better serve industrial automation applications, our MVP-6010/6020 Series fanless computers maximize computing power in a compact structure and offers 65W TDP for smart factory automation,” said Zane Tsai, director of ADLINK’s Platform Product Center at the Embedded Platform & Module Business Unit. “The MVP-6010/6020 easily replaces rackmount and tower IPCs in harsh factory environments, with single-side I/O access and reliable operation, eliminating the unneeded capacity to improve cost efficiency. We believe the scalable MVP-6010/6020 Series is highly competitive in terms of computing performance, reliability, size, and price.”

The MVP-6010/6020 Series provides a wealth of choices, delivering a perfect balance of features and performance in a compact package, without sacrificing any of the benefits of fanless construction, all at a significantly competitive price while still guaranteeing a level of performance not available in any other IPC in this class.

The MVP-6010/6020 Series offers one PCIe x16 and three PCI, or two PCIe x16 and two PCI expansion slots, allowing the buildup of application-specific capabilities for motion control and machine vision applications and many others. In addition, the MVP-6010/6020 Series is compatible with ADLINK’s complete range of fully pre-verified motion, vision and I/O cards, providing single-source convenience.

Fanless Computers

Photo courtesy of ADLINK

The MVP-6010/6020 Series provides built-in dual-channel DDR4 SO-DIMM sockets for up to 32 GB of memory, and the Intel® HD Graphics 530 supercharges graphics performance. Dual independent displays are fully supported, with one VGA, one DVI and two DisplayPort, two software-programmable RS-232/422/485 + two RS-232 ports, three Intel® GbE ports with teaming function, six external USB ports (four USB 3.0 + two USB 2.0), and 8CH DI and 8CH DO.

Rigorous testing for operational verification assures the series’ reliability and ruggedness, for complete functionality when facing the rigours of demanding industrial application environments. Along with a versatile I/O array and flexible expansion capacity, the MVP-6010/6020 Series fully satisfies all the needs of industrial automation with the performance demanded by vision inspection and motion control applications.

ESIS specialises in embedded Fanless Computers and is the leading supplier of industrial electronic equipment in the Australian market since 1971. Choose from a range of diverse products to best suit your requirements. Contact us right away to discuss your needs.

Article Courtesy of ADLINK.
