Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67Z Mini-ITX based on Intel® 8th Gen. FCBGA1528 “Whiskey Lake”. The “Whiskey” PC is claimed to deliver better performance than a PC base on previous embedded U-series processors- enabled by 4 instead of 2 cores plus an overall improved microarchitecture.  The 8th Gen. Core™ i7 U-series Mobile processor for IoT applications is feature-rich delivering high performance per watt.

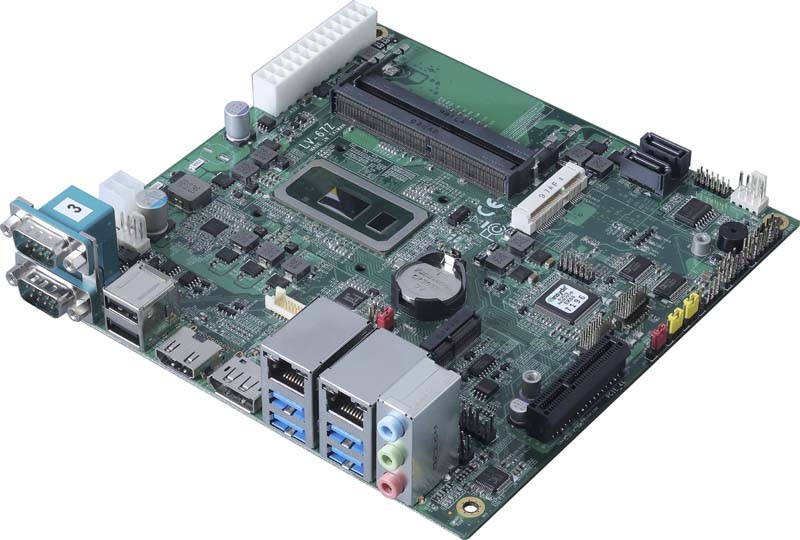

LV-67Z

Photo courtesy of COMMELL

The COMMELL LV-67Z platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defence, transportation and industrial automation application. The LV-67Z Mini-ITX is designed for the 8th generation Intel® Core™ i7-8665UE. The Core™ i7 part has a 1.7GHz base clock with 8MB cache and a 4.4GHz max turbo frequency, and offer long-life availability. The LV-67Z features two DDR4-2400 SO-DIMM slot for up to 32GB of memory. The platform is based on Intel® Generation 9.5 HD Graphics GPU, Displays LVDS, one HDMI and one DP port onboard (option to 2 x HDMI or 2 x DP), up to three displays can be controlled simultaneously.

LV-67Z

Photo courtesy of COMMELL

LV-67Z offers lots of features including high-speed data transfer interfaces such as 4 x USB2.0, 4 x USB3.1 Gen2 and 2 x SATAIII, equipped with dual Gigabit Ethernet ( 1 x Intel® I219-LM Gigabit PHY LAN with iAMT 12.0 supported and 1 x Intel® I210-AT Gigabit LAN), and comes with internal PS/2 port, 2 x RS232/422/485, 4 x RS232, Intel® High Definition Audio, 1 x M.2 Key E for Wi-Fi and Bluetooth, 1 x MiniPCIe, 1 x PCIe X4 slot, Standard 24-Pin ATX or 4-Pin 9~30V DC input.

ESIS distributes a wide range of industrial single board computers and is the leading supplier of industrial electronic equipment in the Australian market since 1971. Choose from a range of diverse products to best suit your requirements. Contact us right away to discuss your needs.

Article Courtesy of COMMELL
