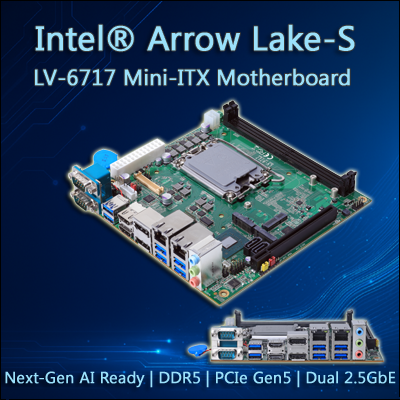

The new LV-6717 Mini-ITX motherboard from Taiwan Commate Computer Inc (COMMELL) is designed to meet the demands of next-generation industrial and AI computing. Powered by an Intel® Core™ Ultra Processor (Arrow Lake-S, FCLGA1851), the LV-6717 delivers superior performance and offers extensive I/O and advanced display options, making it an excellent choice for embedded systems, automation, edge AI and smart solutions.
High performance with DDR5 and hybrid AI acceleration
The LV-6717 is based on the Intel® Core™ Ultra Processor Arrow Lake-S and the W880 chipset, supporting up to 65W processors. With 2 x DDR5 UDIMM slots (up to 128GB, 6400 MHz, ECC/Non-ECC), it ensures ultra-fast data processing, multitasking and stability for mission-critical applications. Intel®’s latest hybrid architecture and built-in AI Boost NPU enable efficient CPU/GPU offloading for AI inference and low-power acceleration at the edge.
Advanced graphics and flexible display support
Equipped with Intel® Xe Graphics, the LV-6717 supports a wide array of display interfaces for versatile visual solutions. It offers two HDMI ports, two DisplayPorts and an LVDS/eDP. This enables simultaneous multi-display outputs, perfectly suited for industrial control, digital signage and surveillance.
Rich expansion and comprehensive connectivity
To support demanding modern workloads, the LV-6717 offers:
- USB ports: 6 x USB 3.2 Gen2, 2 x USB 2.0.
- Storage and networking: 2 x SATA3, 2 x 2.5GbE LAN (Intel® I226-LM + I226-V, RJ45).
- Serial communication: 2 x RS232/422/485, 2 x RS232.
- Expansion Slots: 1 x M.2 Key M (2280, PCIe Gen4 NVMe), 1 x M.2 Key M (2280, PCIe Gen5 NVMe), 1 x M.2 Key E (2230, Wi-Fi & Bluetooth module), 1 x PCIe x16 Slot (Gen5 support).
- Other Features: 1 x 8-bit GPIO, 1 x SMBus, 1 x HD Audio, 1 x LCD inverter.
The LV-6717 supports both standard ATX 24-pin/4-pin 12V and DC 12V input, providing flexible deployment in various scenarios. The board operates reliably within 0C to 60C, ideal for industrial and embedded environments.
With robust computing power, comprehensive expansion and future-ready AI features, the LV-6717 is the perfect solution for next-gen industrial automation, edge computing, AI vision and smart infrastructure.
