Esis, a leading Australian supplier of automation technology, is pleased to announce the release of Advantech’s UNO-137 integrated IoT edge computer. Powered by an Apollo Lake Intel® Atom™ E3940 quad-core processor, UNO-137 is a highly reliable industrial-grade IoT fanless PC aimed at factory automation. To support diverse applications, UNO-137 features a modular, optimized base unit that can be integrated with an optional extension kit and flexibly configured according to specific usage requirements. Additionally, UNO-137 supports various edge software, including CODESYS and Advantech’s WISE-DeviceOn and DAQNavi software, making it the ideal platform for developing cost-efficient industry-specific solutions.

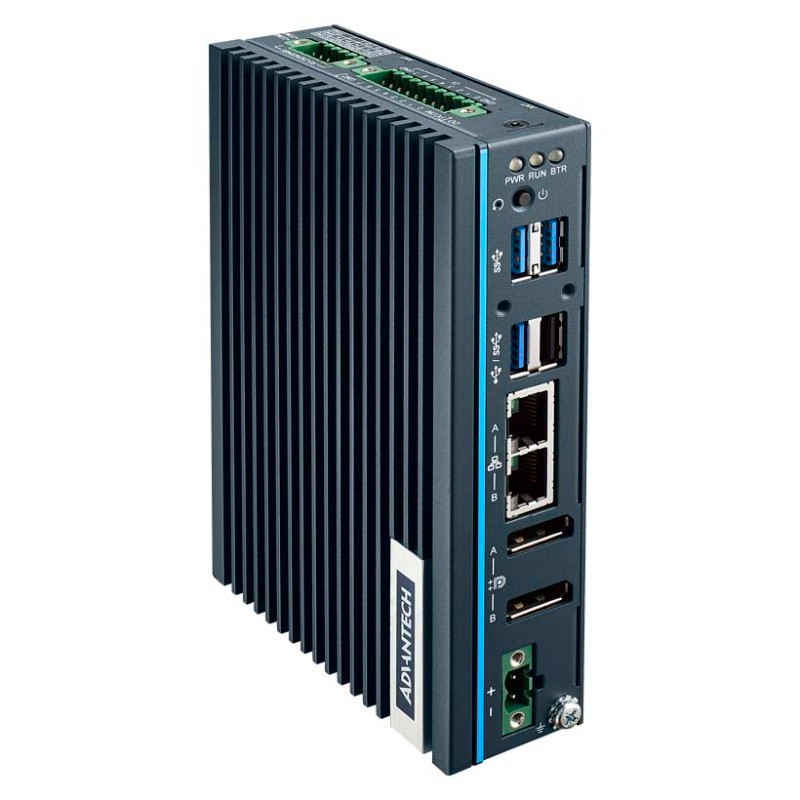

UNO-137 Fanless PC for IoT Edge

Photo courtesy of Advantech

User-Friendly Design Ruggedized for Industrial Use

Designed to function as an edge controller for industrial automation applications, UNO-137 has been optimized for DIN-rail mounting with the provision of a sliding hook that snaps into place as well as a user-friendly release latch that allows quick disassembly. This ensures easy installation even in limited-space environments. Compliant with IEC-61010 safety standards, the ruggedized design includes a wide operating temperature (-40 ~ 70 °C/-40 ~ 158 °F), wide input voltage (10 ~ 36 VDC), isolated DIO/COM, and TPM 2.0 hardware-based security, making UNO-137 ideal for industrial-grade equipment and control cabinet applications.

Modular Form Factor for Flexible Configuration and I/O Expansion

To ensure easy deployment for diverse IoT operations, UNO-137 features a modular design. The base unit features two expansion slots, 1 x mPCIe and 1 x M.2, for integrating diverse expansion modules. Moreover, UNO-137 can be flexibly equipped with an optional extension kit that allows the system to be customized according to specific usage requirements. With the second stack extension kit, Advantech’s iDoor expansion modules, such as fieldbus or wireless communication modules, can be integrated to increase the system functionalities and support a wide range of applications.

Application-Oriented Solution with Integrated Edge Intelligence

UNO-137 is an application-oriented edge device that can be easily integrated with edge software to support various industrial applications. For example, for machine monitoring, the built-in Digital I/O can be used directly, or additional flexibility can be added with USB I/O modules. The inclusion of DAQNavi software facilitates failure prediction and prevention. Furthermore, UNO-137 can be equipped with an additional fieldbus iDoor module and loaded with CODESYS software to realize real-time PC-based soft logic control. For remote asset management, UNO-137 supports Wi-Fi, LTE, and 5G connectivity. The integration of Advantech’s WISE-DeviceOn software enables flexible device management.

Key Features

  • Intel® Atom™ E3940 processor (1.6 GHz, quad core)
  • Apollo Lake Atom processors are the latest generation Embedded Atom series as at 2020
  • 8GB DDR3L memory
  • Modular design for optional iDoor extension
  • Wide power input range (10 ~ 36 VDC)
  • Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
  • 8 x DI, 8 x DO, 2 x COM with isolation protection
  • DP++ ensures HDMI/DVI compatibility
  • Onboard TPM 2.0 provides hardware-based security
  • Ruggedized DIN-rail kit for easy mounting
  • Available from ESIS with Windows 10 IoT Enterprise LTSC, or Linux
  • Compliant with IEC 61010-1 electrical safety standards

For more details on UNO-137 please refer to the PDF data sheet.

With pricing starting at AUD $919+GST, the UNO-137 represents excellent value as a rugged and powerful industrial IoT Edge PC.

ESIS specializes in Fanless Industrial PC’s and is the leading supplier of industrial electronic equipment in the Australian market since 1971. Choose from our wide range of products to best suit your requirements.

Contact us right away to discuss your needs.

Article Courtesy of Advantech.
