Esis, a leading provider of embedded computing solutions, is pleased to announce Advantech’s UNO-2372G-J1 compact, modular IoT automation gateway PC. Equipped with an Intel® Celeron® quad-core J3455 processor, 4GB of DDR3L memory, and dual display interfaces (HDMI and DisplayPort), UNO-2372G-J1 is a competitively priced system that delivers a 100% increased computing performance compared to that of the previous UNO-2372G-J0 model.

To ensure flexible configuration and suitability for diverse industries, the UNO-2372G features optimized I/O and can be equipped with an optional second expansion stack that supports Advantech’s iDoor technology. Moreover, the UNO-2372G’s robust and fanless PC architecture is compatible with 10 ~ 36 VDC input power, supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), and can withstand operation in harsh environments, making it ideal for a wide range of industrial applications.

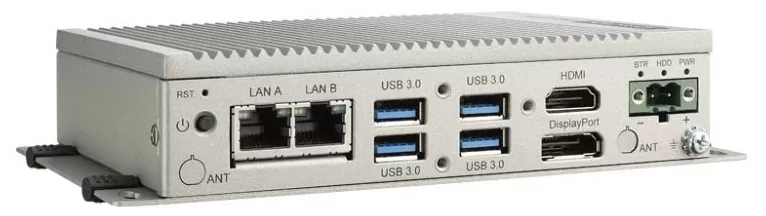

UNO-2372G-J1

Photo courtesy of Advantech

Modular Design Enables Flexible Customization and Easy Maintenance

UNO-2372G-J1 features a modular design that allows the system to be flexibly configured according to specific application requirements. UNO-2372G-J1 can also be integrated with Advantech’s iDoor modules to provide the optimum solution that not only meets customers’ usage requirements, but also eliminates unnecessary features and expenses, accelerates production and delivery, facilitates rapid deployment and integration, and reduces system downtime and maintenance costs.

Optimized Form Factor with Multiple I/O Supports Versatile Mounting

The UNO-2372G-J1’s compact form factor is fanless [P1] to reduce the accumulation of dust and other contaminants. The system I/O includes 2 x GbE, 2 x USB 3.0, 4 x RS-232/422/485, 1 x HDMI, and 1 x DisplayPort, allowing UNO-2372G-J1 to support diverse factory applications. In regards to mounting, UNO-2372G-J1 is equipped with a stand mount with rubber stoppers, but can also be fitted with an optional kit for DIN-rail and VESA mounting to enable easy assembly and convenient installation in a wide range of environments.

Ruggedized, Industrial-Grade System Ensures Reliable Operation

To ensure compatibility for diverse usage scenarios, UNO-2372G-J1 supports 10 ~ 36 VDC input power and a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), making it ideal for factory automation operations, especially machine automation and IoT applications. Overall, UNO-2372G-J1 provides an excellent solution for delivering stable and reliable computing in demanding industrial environments.

UNO-2372G-J1

Photo courtesy of Advantech

Key Features

  • Intel® Celeron® J3455E quad-core processor with 4G DDR3L memory
  • Compact, robust, fanless, and cable-free system with high stability ·
  • 2 x GbE, 4 x USB 3.0, 4 x RS-232/422/485, 1 x HDMI 1.4b, 1 x DP 1.2
  • Modular design with an optional second stack for increased functionality
  • Stand mount with a rubber stopper
  • Optional kit for DIN rail and VESA mounting
  • Optional Wi-Fi/Bluetooth/cellular connectivity
  • Built-in TPM 2.0 for hardware-based security

ESIS specializes in Industrial PC’s and is the leading supplier of industrial electronic equipment in the Australian market since 1971. Choose from our wide range of products to best suit your requirements.

Contact us right away to discuss your needs.

Article Courtesy of Advantech.
