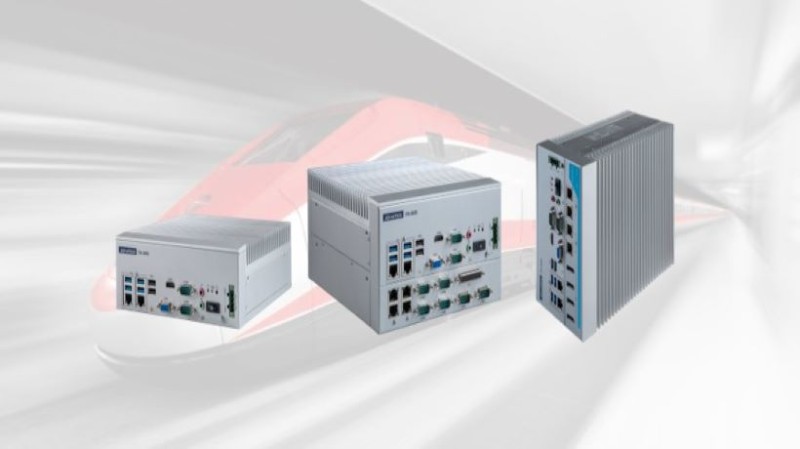

ITA-3650 Series Fanless PC

Photo courtesy of Advantech

Esis is pleased to announce Advantech’s specialised ITA-3650 Fanless PC series designed for edge computing in traffic management applications. This powerful Fanless PC series improves traffic congestion situations, enabling real-time traffic monitoring which is widely deployed in high population cities. Real-time images and videos can be uploaded to the road management centre, assisting operators to monitor the situation and take the corresponding actions in a timely manner.

ITA-3650 Series works as an edge computing platform, providing flexible configuration with GPU card, accelerator and 6-LAN ports for local in-time analysis of video images to shorten the time in analyzing real-time and historical traffic data, enabling incident detection, law enforcement and traffic counting in the traffic management application.

High Performance with Compact and Fanless Design

ITA-3650 Series with compact and fanless design, featuring a 6th and 7th Gen Intel® Core™ processor that can be integrated up to Intel XEON 4-core E3-1268L processors, onboard 8GB DDR4, optional onboard 16G max to 32GB with SO-DIMM and optional NVRAM. Wide temperature range from -25° C ~ 60° C ensures reliable operation to withstand harsh environment. ITA-3650 series supports Microsoft Windows 10, and Advantech’s SUSIAccess remote management software utility for convenient management and system protection.

Edge Computing for Real-time Video Images Analysis

ITA-3650 Series supports GPU MXM modules of NVIDIA 1050TI or 1060 or Quadro P1000 or P2000 up to 65W TDP and provides 6-LANs to connect multiple HD IP cameras for video images analysis to apply edge computing in traffic management, including incident detection as well as deep learning. With the high performance of edge computing, operation loading of back-end systems can be greatly reduced and the analysis of video images can be completed in edge sites, enhancing the efficiency of real-time traffic management and enable to take immediate action if accidents or any situation occurs.

Flexible Modular Design Facilitate Customization Process

ITA-3650 Series adopts a flexible design with one motherboard configures with different high-speed modules. Thus the design can facilitate the customization process by providing modules combination according to specific requirements by customers and eliminate the need of purchasing a new computing platform and performing compatibility tests.

Features Highlight

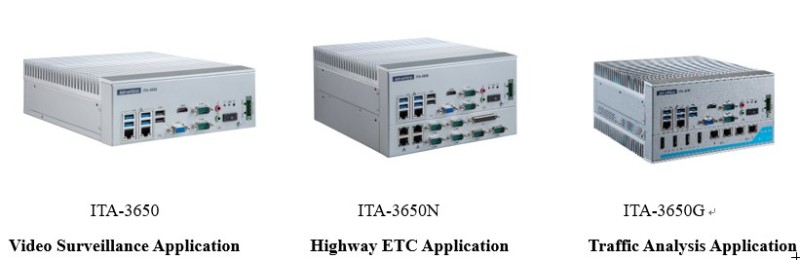

ITA-3650 Series Fanless PC

Photo courtesy of Advantech

  • Intel 6th & 7th Generation Desktop Processor with H110 PCH
  • Onboard 8GB DDR4, optional onboard 16G max to 32GB with SO-DIMM and optional NVRAM
  • Provides multiple serial ports and LAN ports for peripheral device connection
  • Wide operation temperature -25 ~ 60 °C
  • 9 ~ 36V input power range
  • Supports 2 x 2.5″ HDD/SSD & 1 x MSATA
  • Supports MXM type GPU card for edge real-time analysis

ESIS is the leading supplier of electronic industrial equipment in the Australian market since 1971. Check out our powerful range of Fanless PCs, HMIs, Panel PCs and other electronic components. Our products are certified and made with high-quality custom materials for accurate results. Build exclusive computing systems with our Fanless PCs for traffic management applications including video surveillance and more. Contact us for a detailed discussion of your requirements with our experts.
