Though temperature and humidity conditions are often the first parameters IT Managers look to monitor, feedback from our worldwide customer base suggests that the next biggest environmental threat to data centre and server room uptime is water ingress. Water leaks are particularly dangerous in Server Rooms and Data Centres as they can go unnoticed for long periods of time until they cause catastrophic damage.
Here are our top 5 tips for deploying an effective water detection solution:
Use multiple sensors in different zones to quickly ascertain leak location
By using multiple sensors and naming them appropriately in the web-browser interface of your Jacarta device you can quickly locate where a leak has occurred. This is especially useful when using the sensor under raised floors.
Think ‘Up’ as well as ‘Down’
Whilst most leaks are likely to materialise at ground level (or even below in the case of basement IT installations) it is possible to detect leaks on top of dropped/suspended ceilings or in drip-trays located under wall/ceiling mounted AC units.
Thoroughly analyse where potential leaks may occur
The most common application for our water detection sensors is underneath AC units that are susceptible to leaks. However, it is important to ensure you cover other potential threats such as existing pipework, heating systems, kitchens, toilets and areas that may be likely to flood first in the event of extreme weather conditions (by doors/windows)
Maximise sensor coverage by using a ‘snaking’ installation method
Pick the alerting method that works for your organisation
Your water detection solution is only effective if the alerts generated by it are received and acted upon by the relevant personnel. Jacarta devices can provide alerts via a variety of methods including Email, SMS Text Message, Telephone Voice Call, Local Alarm Beacon & SNMP Traps. You can also connect to existing third-party alarm management systems. Use numerous methods to provide fail-safe alerting.
Once you have successfully installed your water leak detection solution it is important to regularly test the entire system – from the sensor through to alerting – to ensure that you are alerted to water ingress before it’s too late!
Water Leak Detection for Server Rooms – interSeptor

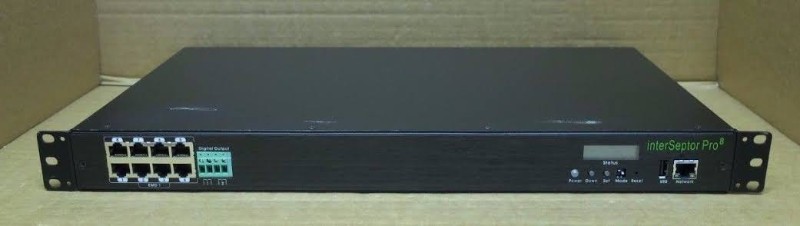

Water Leak Detection for Data Centres – interSeptor Pro
Monitor other environmental conditions – Go-Probe Sensors
Central Monitoring Software – PYXIS DCIM Lite
The leading supplier of industrial electronic equipment in the Australian market for decades, ESIS provides a range of diverse products best suiting your requirements. Contact us right away to discuss your needs.
Article Courtesy of Jacarta
