Discover how the rugged and fast ARK-2150 fanless computer is providing secure and manageable traffic monitoring, in outdoor environments around China. Powerful enough to perform video capture and number plate recognition, the ARK-2150 is a tough as nails mini PC that is built to perform in extreme environments.

Project Introduction:

China’s prospering economy has driven major population increases in big cities like Beijing and Shanghai, and the attendant increases in vehicular traffic have caused traffic nightmares. Authorities are taking action to deploy traffic monitoring systems to help enforce traffic laws and maintain public safety. These traffic monitoring systems detect traffic violations, retrieve images, recognize vehicle plate numbers, and send the data to traffic authorities’ central server for further action. Such outdoor applications require extremely rugged and reliable industrial computers with high-computing power and rich networking connectivity; they are deployed on many main thoroughfares–especially around intersections.

ESIS today introduces the Advantech ARK-2150, featuring an Intel® 3rd generation core i7/i3 processor with a fanless design, has joined the team carrying out Beijing’s traffic control mission. With its -20 ~ 60° C wide temperature support, up to 4 Gigabit Ethernet ports, rich I/O interfaces and remote management, Advantech is proud to send the ARK-2150 to do battle in challenging environments.

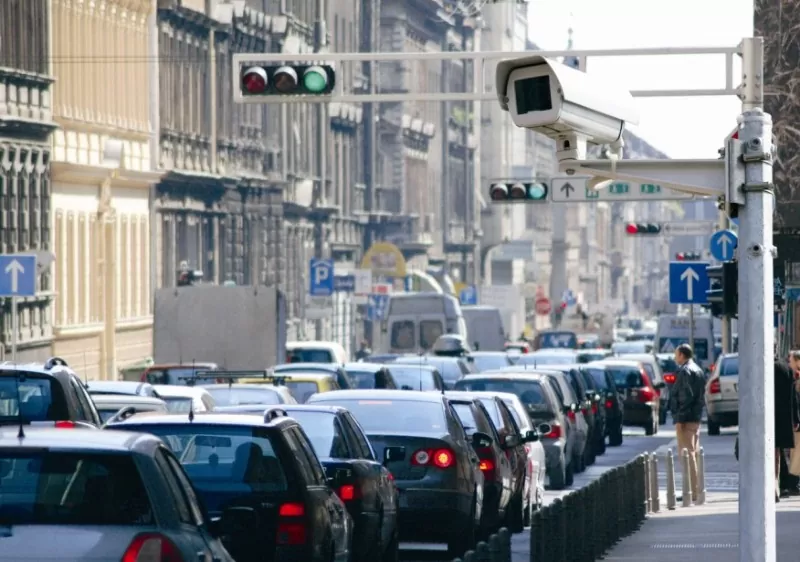

ARK-2150 in Traffic Surveillance

Photo courtesy of Advantech

System Requirements:

  • The high-performance platform supports image recognition
  • 20 ~ 60° C wide-temperature support
  • Multiple GigabitEthernet ports for IP cameras
  • Rugged, fanless system provides high reliability in harsh environments
  • Easy maintenance and intelligent remote management

Project Implementation:

ARK-2150 provides rich I/O interfaces including 4 Gigabit Ethernet ports and 4 serial COM ports (RS-232/422/485)

ARK-2150

Photo courtesy of Advantech

System Description:

ARK-2150 provides rich I/O interfaces including 4 Gigabit Ethernet ports and 4 serial COM ports (RS-232/422/485). Three of the GbE ports are used to connect up to 3 IP cameras, and the remained GbE port is for communication with the control centre. The COM ports are for traffic light connections. For more complex intersections, multiple ARK-2150 units are installed. In all deployments, theARK-2150 helps to capture images of vehicles running red lights, speeding, or committing other infractions. Images of vehicle plates are scanned, recognized, and the data sent to the control centre. The control centre can also control and schedule traffic lights via the ARK-2150. 8-channel isolated DIOis also provided to support camera flash when needed.

Remote device management is extremely important for such traffic surveillance applications. ARK-2150 carries embedded Intel® AMT 8.0, Advantech SUSIAccess, and iManager, which provide secure remote management facilities to system administrators. The hardware-based iAMT technology allows for remote system diagnosis and security features including system defence filters and network isolation; SUSIAccess, a software-based remote management software utility developed by Advantech, provides functionalities including remote monitoring and remote KVM, and iManager provides a multi-level watchdog.

Remote KVM is a method of controlling multiple computers from a single console. With remote KVM, traffic monitoring system managers can respond to traffic situations in real time, adjusting the software settings of systems from the centralized traffic control room, or from anywhere with a network connection. The multi-level watchdog enables the system to restart an application when the app crashes, or reboot a whole system if an error occurs at the OS level.

For outdoor applications, wide temperature support and fanless design are important in ensuring longevity and reliability. The fanless ARK-2150 supports high-end CPU performance along with temperature support ranging from -20o ~ 60o C; this is rare among small-form-factor systems. It is also seldom that such a small IPC provides such rich I/O interfaces.

ARK-2150

Photo courtesy of Advantech

Conclusion:

ARK-2150, featuring a high computing core, rich, high-speed interfaces, wide temperature support, operational reliability and the latest remote management technologies, is suitable for deployment in traffic surveillance systems. This product exemplifies Advantech’s outstanding ability to compact many features into a small fanless system. It is powerful, quick and neat. Advantech’s excellence shows not only in outstanding hardware designs but also in software and firmware support. Its proprietary SUSIAccess and iManager intelligent management software utilities are distributed for free in order to facilitate easy management and maximum benefits.

Since 1971, ESIS has been a leading supplier in the Australian industrial PC market. You can check out our extensive range of products and services, designed exclusively to cater to your needs.

Contact us today to learn more about our wide range of computer products, or feel free to browse the ESIS website.

Article courtesy of Advantech.
